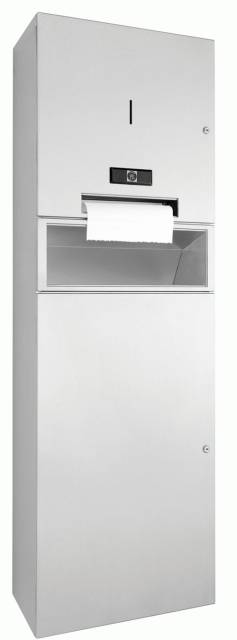

DP4110-WP5456 Dolphin Prestige Combination Paper Towel, Soap Dispenser and Waste Bin Touch Free

Verified by manufacturer 3 months ago

DP4110

Dolphin Solutions Variant:

A surface mounted combination unit comprising of an electronic paper roll dispenser, soap dispenser and a waste bin.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for commercial washroom application.

Description

A surface mounted combination unit comprising of an electronic paper roll dispenser, soap dispenser and a waste bin.


Features and benefits:

  • Robust, easy-to-clean.
  • All corners fully welded.
  • Superior quality and timeless design.
  • Touch-free, capacitive sensor technology.
  • Transformer or battery powered options available.
  • Full metal housing stainless steel 304, satin finished.
  • Residual roll function allows reserve roll to be put in operation before residual roll is completely used up.
  • Electronic paper roll dispenser designed for paper rolls 215 mm width, inner diameter 50 mm and outer diameter up to 180 mm.
  • Paper length infinitely adjustable by electronic control from 200–1200 mm, factory setting 450 mm.
  • Waste bin 48 L approximate capacity with removable mesh basket, waste deposited from top.
  • Also available upon request in a polished finish or with other surfaces.

General information

Color

Grey

Silver

Finish

Satin

Guidance for specification option:

Standard.

Polished

Guidance for specification option:

Available on request.

Material

Stainless steel

Shape

Rectangle

Size

1348 x 448 mm

Uniclass

Pr_40_70_22_61 Paper roll dispensersPrimary

CAWS

N13/442 Paper towel dispensers

N13/441 Paper roll dispensers

Specification data - Paper roll dispensers

Form

Surface mounted.

Roll width

215 mm.

Materials

-

Body

Stainless steel, grade 304 (1.4301).

Finish and colour

Satin.

Guidance for specification option:

Standard.

Polished.

Guidance for specification option:

Available on request.

Operation

Transformer powered.

Dimensions

1348 x 448 mm.

Projection

220 mm.

Capacity

48 L.

Guidance for specification option:

Bin.

500.

Guidance for specification option:

Paper towel.

Sensor

3.5 cm.

Guidance for specification option:

  • 1–5 s adjustable idle time.
  • 1 s factory setting.

Manufacturer guidance

Sensor distance.
