Downtown Deck Mounted Bath Filler Tap
Verified by manufacturer 6 months ago
DT.DBF.MB
DT.DBF.MB

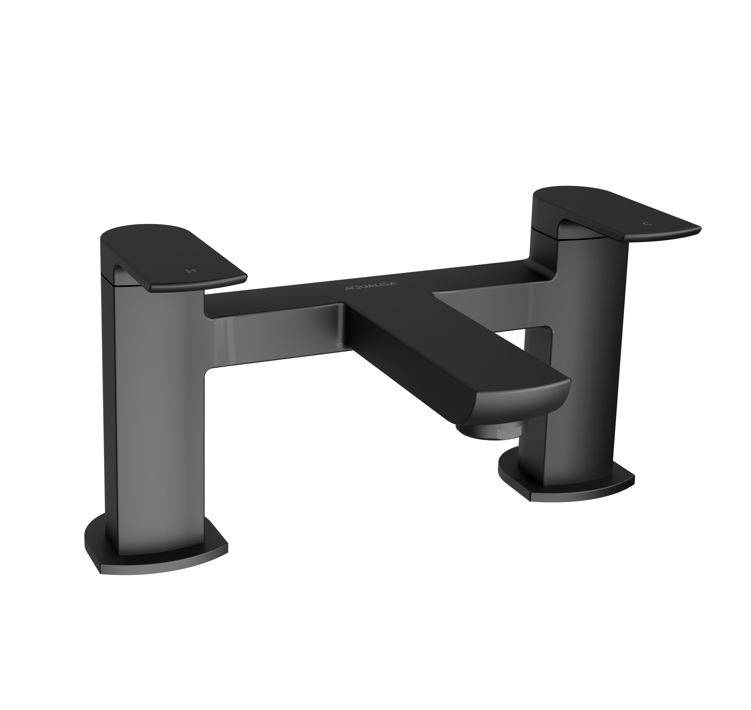

Aqualisa Downtown chrome and matt black bath deck filler.
Application
Bath filler tap.
Description
The Downtown Bath Mixer Tap offers a high-performance bath mounted tap option, offering the flexibility and convenience of a bath filler in a stylish and compact design. Dual lever operation allows you to find your perfect temperature with ease, offering you complete control of your bath. Available for low- and high-pressure water systems, Aqualisa Downtown taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.
Features and benefits:
- Suitable for both low and high pressure systems.
- Soft square design.
- Brass body with zinc handles.
Water system compatibility:
- Gravity.
- Boosted gravity.
- Combi.
- Balanced high pressure water systems.
General information
Color | Silver Black |
Finish | Chrome Matt Gloss |
Material | Brass Zinc Plastic |
Shape | Square |
Length | 140 mm |
Width | 230 mm |
Height | 121 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Product range |
Specification data - Bath mixer taps
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Filler tap. |
Materials | |
Body | Brass, zinc, plastic. |
Finish and colour | Matt black. |
Flow rate (maximum) | At 5 bar: 63.1 L/m (full hot), 59.6 L/m (full cold), 78 L/m (mixed). |
Water supply temperature (maximum) | 5–65°C. |
Pressure | 0.2–5 bar (static). |
InletConnectionSize | 2 x 3/4” BSP male. |
Tap holes | Two holes. |
Handle type | Dual levers for hot and cold. |
MountingType | Deck mounted. |
ValveOperation | Pull, push. |

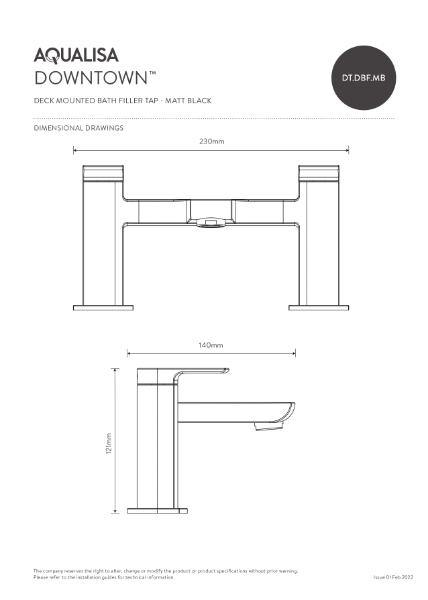

Dimensions | 230 x 140 x 121 mm. |
Weight | 1.697 kg. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Packaging recycled content:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Aqualisa Taps Brochure
DT.DBF.CH_Spec Sheet
Aqualisa Taps Installation and User Guide
DT.DBF.MB_Spec Sheet
