Dortek 344 Vertical High Speed Door
Verified by manufacturer 1 day ago
Energy-saving fast action door with patented design.
Application
High speed doors suitable for environments with high demands on personal safety and energy efficiency.
Suitable for the following applications:
- Industrial.
- Logistics.
- Automotive.

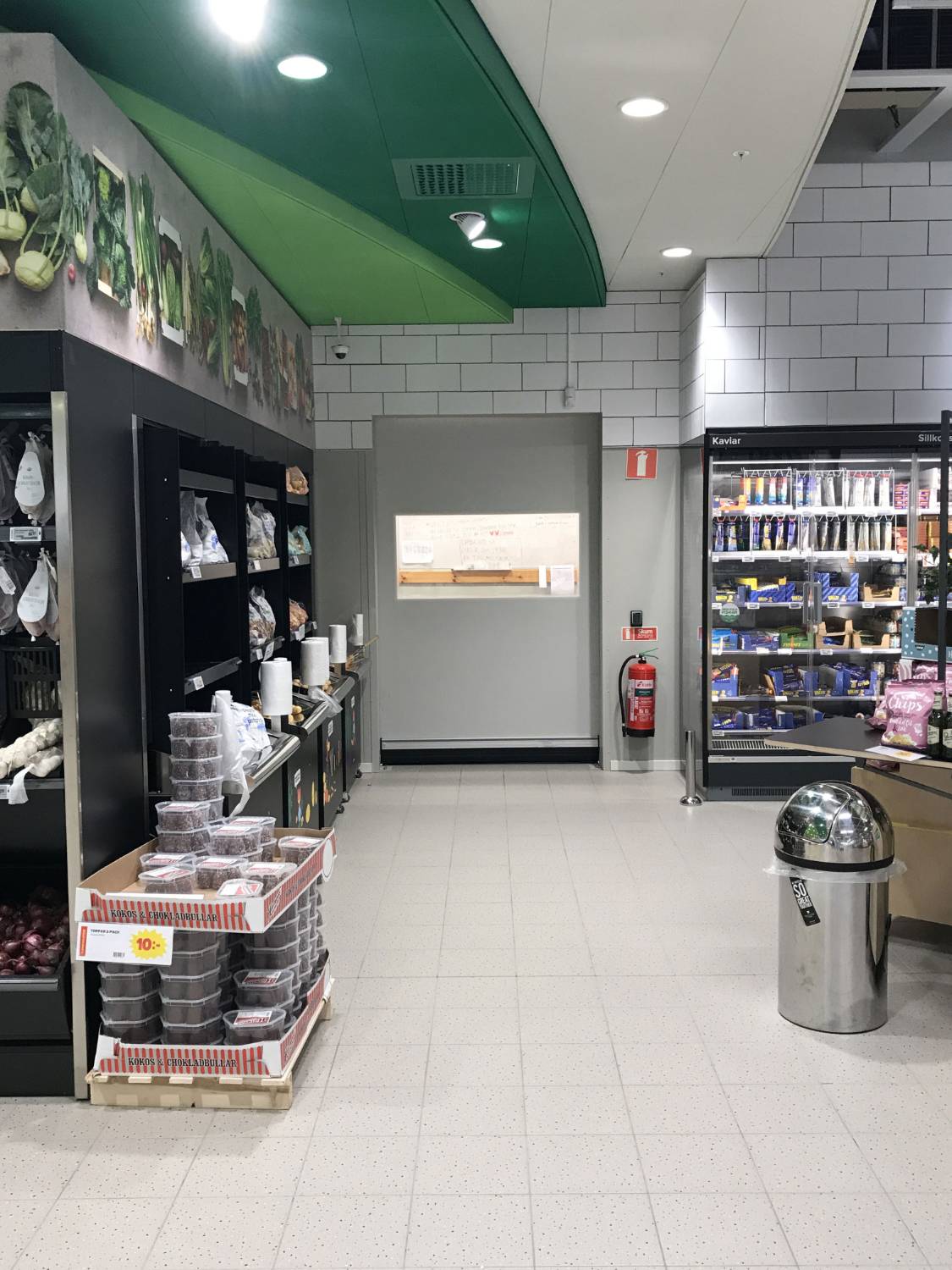

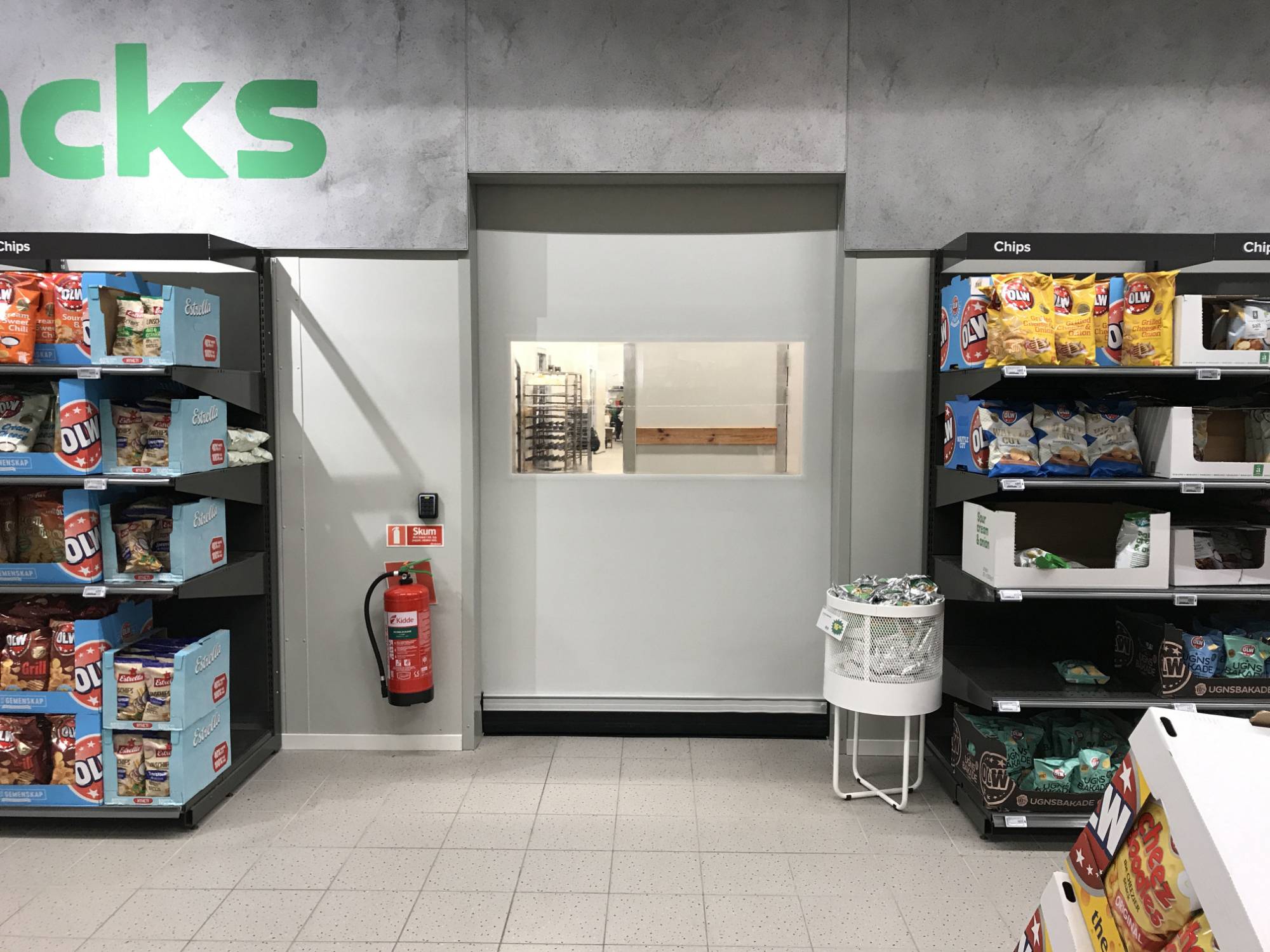

- Retail.
- Food industries.
- Cold rooms.
- Pharmaceutical.
- Distribution centres.
Description
Durable vertical high speed roller door for environments with high demands on personal safety and energy efficiency.
The high speed door is compact, efficient and safe. It is the smartest way to shut out draft, dust and noise retaining a high level of personal safety. Innovative design with few wear parts makes it a door for millions of openings with a minimum of maintenance.
The door panel is manufactured from 2 mm PVC coated double reinforced woven fabric.
Features and benefits:
- Compact design and super slim frames: The door can also be placed in narrow passages.
- Rapid and silent function – up to 2.5 m/s: Advanced vector control with soft start/soft stop for low noise level.
- Safe opening/closing: Safety photocell curtain protects the entire door opening touchless when closing.
- Resistant to air pressure: The door panel is equipped with edge holders that locks it firmly in the frames in premises with pressure differences.
- Resistant to most chemicals.
- Anti-static (Tested according to EU norm prEN 1718).
- Seamlessly welded vision panel has no weak joints.
- Door panel has a smooth surface, is dirt repellant, UV-resistant and approved for food plants.
- Bottom profile with rounded top for improved safety.
- Patented pushout protection, efficiently locking the door into the frames.
- Fulfills the requirements of EN 13241.
- 24V (PELV) with up to 2000 mA for external equipment (e.g. traffic lights).
- Motor cables standard = door height +1 m, other lengths optional (maximum 15 m).
- Future software updating is completed via USB or SD-card.
The door can also be delivered in customized version, e.g. with special door panel for high temperatures or in ESD-safe design, etc. Consult manufacturer for details.
For use in special environments, the door panel bottom can be supplied with a self monitoring electric safety edge which immediately reverses the door to open if
obstructed.
General information
Color | Blue Grey Yellow Red Orange |
Finish | Coated |
Material | PVC |
Shape | Rectangle Square |
Width | 600 mm Guidance for specification option: Minimum. 3500 mm Guidance for specification option: Maximum. |
Height | 600 mm Guidance for specification option: Minimum. 3500 mm Guidance for specification option: Maximum. |
Uniclass | |
CAWS | L20/570 High-speed doors |
Specification data - High-speed doorsets
Speed (minimum) | |
Opening | 2.5 m/s (maximum). |
Closing | 1.2 m/s (maximum). |
Format | Roll up. |
Arrangement | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Curtain material | Constructed with two layers of mono/ multifilament fabric, coated with PVC with smooth finish, antistatic with integrated carbon fibres and UV-resistant (2 mm thick).Guidance for specification option: Can also be supplied with a with a seamless welded-in transparent vison panel which is extremely resistant to wear, just like the door panel. Insert requirements. Manufacturer guidance
|
Frame and guides | |
Material | Anodized extruded aluminium frames, as well as comprehensive cover over top roller and motor.Guidance for specification option: Fitted inside the frames are the safety photo cell and its cabling. |
Finish and colour | Anodized aluminium. |
Operation | The drive unit, A4.0, consists of a robust worm gear drive and an advanced vector-inverter control with monitored brake function. The worm gear, which is heavily dimensioned, can handle up to seven openings per minute and has an integrated absolute encoder. 4.3˝ full colour touch display for programming and showing operational Information.Guidance for specification option:
|
Accessories | Automatic emergency opening system.Brush seals on to the door panel.ESD-door for EP-areas (completely free of static charges over 100V).Exit package.Guidance for specification option: The 344-safe can be equipped with the optional exit package, which allows the door to be used for evacuation even in the event of a power failure. Induction loop detector.Guidance for specification option: Optional. Manual emergency opening system.Photocells.Pull cord.Guidance for specification option: Optional. Radar motion detector.Guidance for specification option: Optional. Radio remote control.Guidance for specification option: Optional. Safety LED-loops at the opening warning for closing door.Self monitoring electric safety edge.Guidance for specification option: Optional. Traffic lightsUPS battery backup.Guidance for specification option: Allows the door to be opened even incase of power supply failure. Manufacturer guidanceAlternative actuators like pull cords, radar motion detectors, radio remote control, induction loop detector, etc. for smooth door opening, are available on request. |
Curtain colour | RAL 5007. RAL 7038. RAL 1023. RAL 3000. RAL 2004. |
Control | Manufacturer guidanceThe door has a flexible control, the drive A4.0, which can be provided with programs for a variety of operational features. The unit has a 4.3˝ full colour touch display for programming and showing operational Information. |
Safety | Integrated safety photocell. Guidance for specification option: The door frames have an integrated safety photocell curtain which monitor the entire opening and makes the door stop contactless if any obstruction occurs in the opening. The curtain function is continuously monitored by a safety module integrated in the control. |
Power supply | Power supply input range 208-240V, single-phase, 10A, as standard. |
Ingress protection | Control box protection class IP 65, Motor IP 55. |
Sustainability data
Material | PVC |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Dortek high speed door 233 data sheet

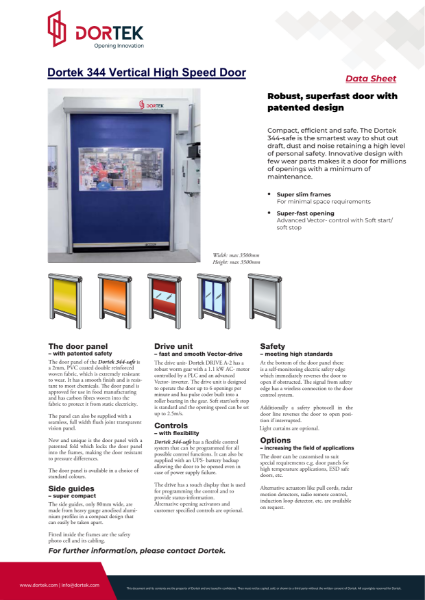

Dortek 344 Vertical High Speed Door Product Brochure
