Door Surrounds
Description

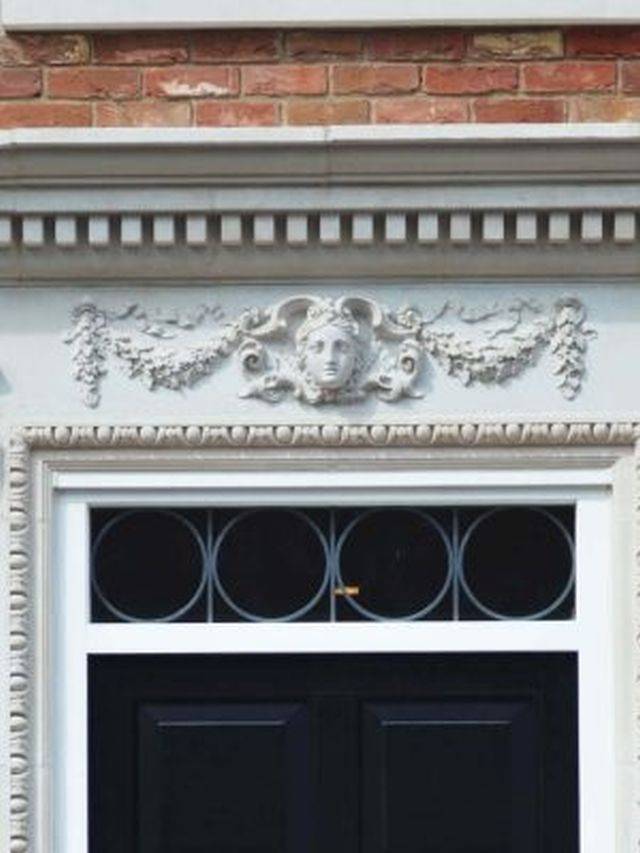

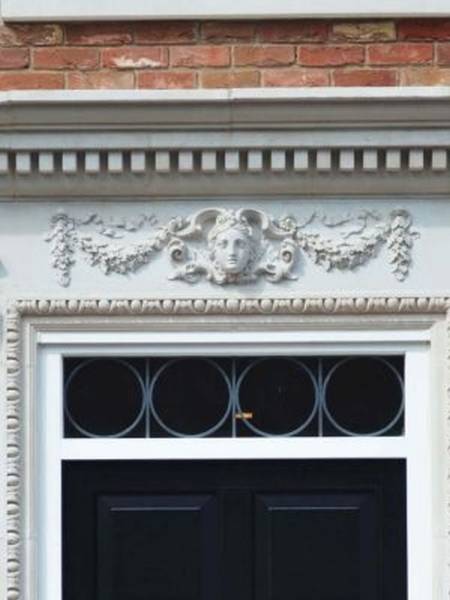

A range of cast stone door surrounds and door canopy designs using Glass Reinforced Concrete (GRC)/ Glass Fibre Reinforced Concrete (GFRC) TecLite material, making them suitable for retro-fit and plant-on applications.

Bespoke designs also available, consult manufacturer for details.

Material:

- TecLite (fibre-reinforced):

High quality GFRC (Glass Fibre Reinforced Concrete). Although it closely resembles cast stone in appearance, the use of thin wall construction means the component weight is significantly reduced when compared with similar Haddonstone and TecStone pieces. Its high strength to weight ratio makes TecLite suitable for retro-fit, renovation and timber frame build projects.

General information

Material

TecLite (fibre-reinforced)

Uniclass 2015

Pr_25_93_52_35 Glass-reinforced concrete (GRC) door surroundsPrimary

CAWS

F22/110 Cast stone

H40/130 Proprietary GRC components

Specification data - Glass-reinforced concrete (GRC) door surrounds

Product Reference

Door Surround

Type

TLQ320 - Georgian Door Surround

TLQ330 - Traditional Door Surround

TLQ335 - Traditional Door Canopy

TLQ340 - Art Deco Door Surround

Material

TecLite (fibre-reinforced)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Accessories

None

Cast-in fixings

Insert requirements for cast fixings.

Standard product features

TecLite:

  • Material density: 2000 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate: Grade 60 dry silica sand.
  • Finish: Light acid etched.
  • Handling reinforcement: Glassfibre reinforcement.

Product Options

- Weight:

  • Art Deco Door Surround TLQ340: 193 kg.
  • Georgian Door Surround TLQ320: 220 kg.
  • Traditional Door Canopy TLQ335: 103 kg.
  • Traditional Door Surround TLQ330: 201 kg.

Consult technical literature for further details.
