Application

Suitable for Doc M shower facilities in hospitals, clinics, care homes, retirement homes and hotels.

Description

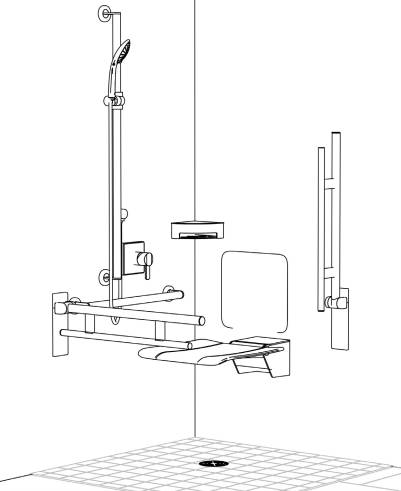

A matt white Doc M compliant shower pack for accessible bathrooms.


The pack includes:

  • Support rail, 600 mm (1 no.).
  • Rail with shower head holder.
  • Hinged seat with backrest.
  • Hinged support rail duo, 750 mm projection (2 no.).
  • Fixing material for concrete and lightweight walls.


Features and benefits:

  • Provides a high level of user comfort and convenience.
  • Assists the independence and well-being of users.
  • Hygienic surfaces facilitate cleaning.

General information

Color

White

Guidance for specification option:

Matt white.

Finish

Powder-coated

Material

Stainless steel

Length

600 mm

Guidance for specification option:

Support rails.

750 mm

Guidance for specification option:

Hinged support rail projection.

1100 mm

Guidance for specification option:

Rail with shower head holder.

Uniclass

Pr_40_20_60_01 Accessible shower equipment packagesPrimary

CAWS

N13/14 Unisex accessible shower room equipment packages (Document M)

N13/312 Unisex accessible shower room equipment packages (Document M)

Specification data - Accessible shower equipment packages

Standard

In accordance with Approved Document M.

Form

Accessible WC Doc M package and fittings.

Transfer handing

Left-hand.

Right-hand.

As drawing.

Material and colour

-

Seat

Synthetic material, signal white.

Guidance for specification option:

Hinged seat with backrest | 900.51.20360 AS

  • Hinged seat with slip-resistant, textured seat made of synthetic material in the HEWI colour 98 (signal white).
  • Wall bracket made of stainless steel, powder-coated in the HEWI colour AS (matt white).
  • Backrest with structured backrest made of synthetic material in the HEWI colour 98 (signal white).
  • Weight capacity up to 150 kg.
  • 450 mm wide, 650 mm deep and 532 mm high.
  • Fulfils the requirements to BS 8300:2009+A1:2010/Doc M.

Seat back

Synthetic material, signal white.

Shower curtains and rails

Stainless steel, powder-coated matt white.

Guidance for specification option:

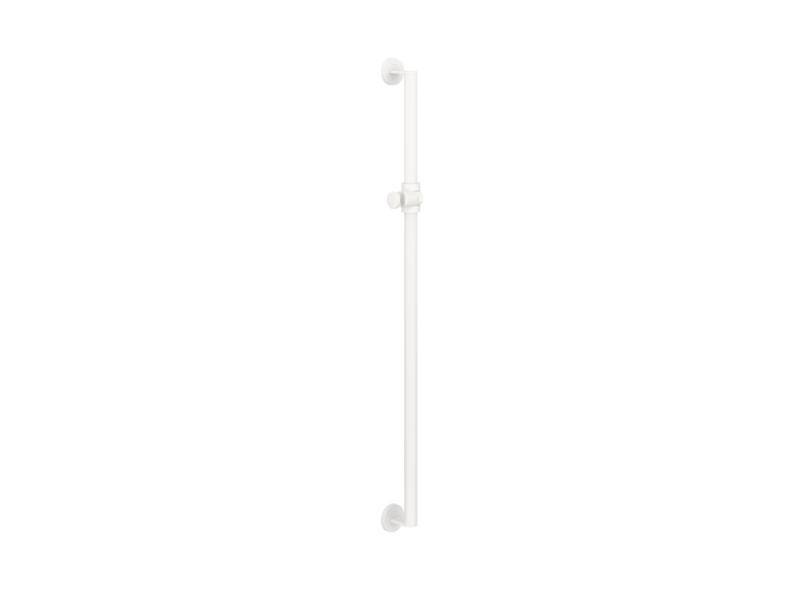

Rail with shower head holder | 900.33.00260 AS

  • Vertical rail with supports perpendicular to the wall, mounting and shower head holder.
  • Fixing spacing 1100 mm, 88 mm deep.
  • Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm.

Handrails

Stainless steel, powder-coated matt white.

Guidance for specification option:

Support rail c to c 600 mm powder-coated | 900.36.00360 DX

  • Fixing spacing 600 mm, 88 mm deep.
  • Rail diameter 32 mm, tube thickness 2 mm, rose diameter 70 mm.

Hinged support rail Duo 750 mm projection | 900.50.16060 DX

  • Can be folded upwards and folded downwards with braked movement.
  • Projection 750 mm, 256 mm high and 75 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm.
  • Weight capacity up to 100 kg.

Accessories

Not required.

Soap or disinfectant dispenser with holder.

Hook.

Bath towel rail.

Shower basket corner solution.

Fixings

BM10.2 fixing material for fixing on walls made of concrete > C20/C25 and BM12.2 fixing material for fixing on walls.

Guidance for specification option:

BM10.2 Consisting of:

  • 2 stainless steel screws diameter 10 x 95 mm.
  • 2 wall plugs HILTI HUD 14 x 70 mm.

BM12.2 Consisting of:

  • 2 stainless steel screws diameter 10 x 95 mm.

A rear lining is required for installation on lightweight walls (a minimum of 30 mm thickness is required). All load-bearing support products require adequate wall support to ensure they can withstand the forces required of them by law. A standard recommendation would be to reinforce the area holding a support product with 30–50 mm of marine ply. This would also be HEWI’s recommendation.
