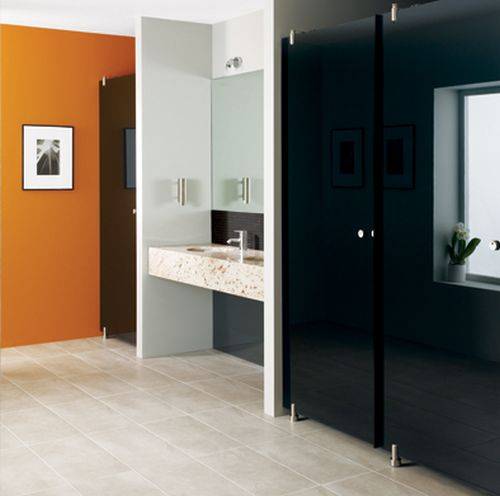

Dimension Cubicles

Description

Frameless cubicle system with no pilasters. Available with polyurethane lacquer or veneer finish.

General information

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Cubicles

Specification data - Panel cubicle systems

Product Reference

Dimension Colourcoat

Polyurethane lacquer finish.

Dimension Veneer

Wood veneer finish.

Depth

Maximum: 1800 from face of back wall or rear ducting.

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

General:

  • Floor clearance: 50 mm.
  • Ceiling clearance (minimum): 30 mm.
  • Pedestal adjustment: ± 8 mm.

Construction:

  • Headrail: Tubular stainless steel fixed above panels to accommodate door pivots and clamp fixings.
  • Pedestals: Stainless steel with brushed finish.
  • Wall fixings: Concealed aluminium with stainless steel effect finish.

Ironmongery:

  • Hinges: Brushed finish stainless steel top and bottom door pivots.
  • Bolt: Stainless steel, lever-operated indicator bold and keep with circular face plate and emergency release.

Product Options

Product reference:

– Dimension ColourCoat:

  • Partitions: 720 kg/m³ MDF, 30 mm thick.
  • Doors: 660 kg/m³ solid core, 44 mm thick.
  • Finish: Sprayed with one coat of primer and finished with pigmented polyurethane lacquer.
  • Edge treatment: As main board.
  • Colour: Any RAL, BS or NCS colour.

– Dimension Veneer:

  • Partitions: 720 kg/m³ MDF, 30 mm thick.
  • Doors: 660 kg/m³ solid core, 44 mm thick.
  • Finish: Lacquered, genuine wood veneer. Consult Venesta Washroom Systems for available veneers.
  • Edge treatment: Matching hardwood.

Height:

  • Standard: 2150 mm from FFL to top of headrail.
  • Maximum: To 1500 mm deep, 2765 mm; 1501–1800 mm, 2450 mm.
