Degafloor QT System and Aggregate - resin flooring - Resin Flooring

Verified by manufacturer 1 month ago

Degafloor Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • BREEAM - Certification

    Certificate type

  • HACCP International Product Compliance Certification

    HACCP International Product Compliance Certification

    Certificate type

The Degafloor Quartz Trowelled (QT) System flooring is a heavy-duty decorative methyl methacrylate (MMA) screed typically laid at 4-6mm and is trowel-applied. Known as MMA resin.

Jump to:
BOS
+44 (0)1778 342545 Website

Application

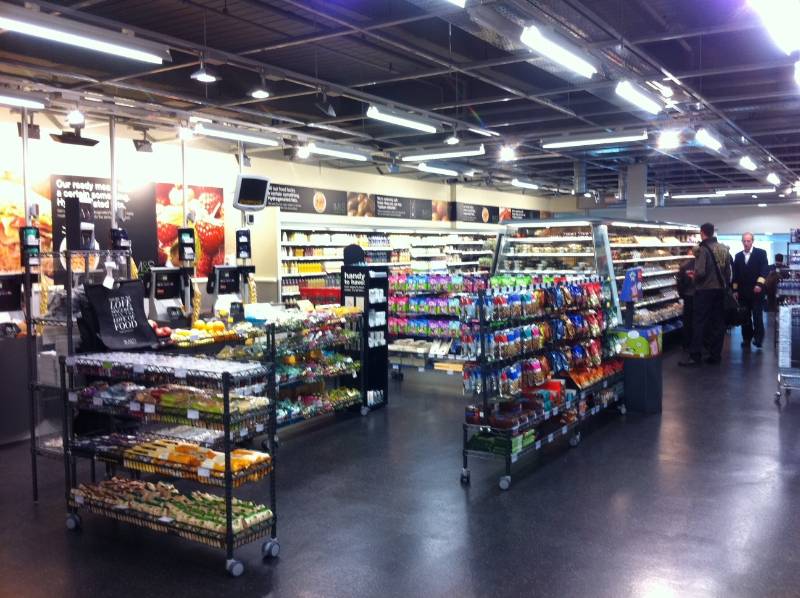

Suitable for use in dry areas, or where spillages are cleaned away immediately and for areas such as warehousing, distribution facilities, aircraft hangers or corridors. Degafloor works with some of the UK's most well-known commercial supermarket brands providing commercial flooring which will last for years.

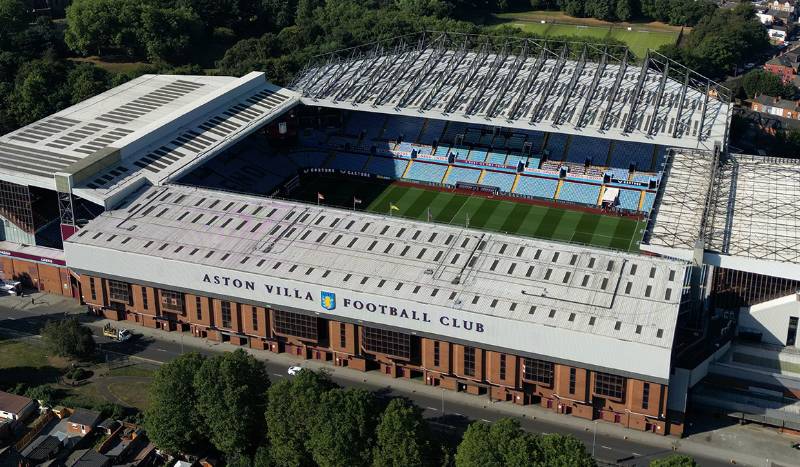

To see the Degafloor QT System and Aggregate flooring, check out our case study which shows completed with Aston Villa football club.


A basic guide to resin flooring


Resin flooring is a hardwearing plastic surface, created by mixing a selection of ingredients to initiate a fast and controlled chemical reaction.  The chemical reaction creates a highly durable finish, ideal for the heaviest-use environments.


The simplest form of resin flooring, a resin coating consists of:


  • Formulated synthetic resin
  • Separate hardener


As demand intensifies– typically resulting in an increase in resin floor thickness – the range of ingredients grows to include aggregates, pigments, decorative chips/flakes and in some cases, cement powder.


Step 1 – Primer


Most resin floors utilise a primer that penetrates into / reacts with the substrate to create a high-strength and reliable bond essential to the floor's longevity.


Step 2 – Bodycoat


The primer is typically followed by a main structural layer, often referred to as the body coat, which creates the bulk of the floor thickness and provides many of the key performance elements such as impact resistance, flexibility and compressive strength, as well as defining the decorative finish of the floor.


Step 3 – Seal coat


Most resin flooring will be finished with 1 to 3 seal coats to encapsulate the body coat and decorative element of the floor and provide the final performance characteristics, such as chemical and wear resistance.


For information, please email: sales@degafloor.com

Description

Longevity and low-maintenance MMA resin


The QT System utilises quartz aggregate with clear resin binders in the body coat, which provides high-performance anti-slip protection and has passed European safety testing. The QT flooring System is renowned for its longevity; its UV-resistant formulation prevents the surface from cracking, deteriorating, or yellowing over time and the surface is simple to clean.


Strength to sustain any terrain


Underneath its light textured finish, the QT System can be adapted to overlay existing flooring, making installation easier across different working environments. This exceptional bond to existing subfloors, along with a chemical bond between layers, creates a truly monolithic floor that provides strength for heavy vehicles, such as fire engines, to move safely across.


Made for multi-layered, dry areas


The Degafloor QT resin system delivers outstanding performance in the heaviest-duty environments and is ideal for commercial and industrial flooring. This trowel-applied flooring system can be tailored to create either a lightly textured or a smooth finish and is ideal for dry areas such as packaging halls, catering facilities, kitchen warehousing, and staff amenity areas where staircases could be used.



Quartz Trowelled with Aggregate System


Similarly to the resin QT System, Quartz Trowelled with Aggregate uses quartz aggregate within clear resin binders within the body coat. In addition to this, the resin QTA System also features a layer of broadcast aggregate over the body coat for ultimate slip resistance and a waterproof resin finish.


A trowel-applied resin system, QTA slip-resistant flooring is also ideal for use on outdoor ramps or when creating falls to drainage in wet or slip-prone areas.


Standard Colour samples (Quartz Trowelled System and with Aggregate System)


Degafloor’s Quartz Trowelled MMA flooring system is available in a wide range of standard colours. The standard mixes listed above are readily available off the shelf, with many other colours also available - please use our sample form to request this directly.


Bespoke Colour samples


Bespoke flooring mixes can be created to match your branding, interior design scheme, or existing flooring. The MMA resin flake options listed on this page are classified as standard colors and are priced at a premium per kilogram, as they are made to order.


Features and benefits:

  • Installation - fully cured within two hours at temperatures down to -30°C.
  • Bonds to existing subfloors.
  • Seamless and impermeable surface without pinholes or air bubbles.
  • Resistance to physical and chemical attack.
  • Tailored decorative slip resistant finishes.
  • Resistant to UV light, weathering and temperatures up to 80°C.
  • Manufactured in accordance with BS EN ISO 9001:2015 Certificate 20/Q064 Quality Management Systems.
  • Ideal flooring for commercial and industrial flooring.

General information

Color

Blue

Green

Grey

Red

Yellow

Finish

Smooth

Material

Resin

Methyl methacrylate

Manufacturer guidance

Methyl methacrylate resin.

Shape

Formless

Warranty description

Ten year

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Surface treatment

Finished with a clear seal coat.

Abrasion resistance

Weight loss <3000 mg.

Adhesion strength

≥2.0 N/mm².

Finish

Smooth.

Material

MMA.

Guidance for specification option:

Methyl methacrylate resin.

Bond strength

≥B2.0.

Capillary absorption

W <0.1 kg/(m²·h^0.5).

Guidance for specification option:

Capillary absorption and permeability to water.

Carbon dioxide permeability

SD >50 m.

Chemical resistance

Reduction in hardness <50%.

Colour

Autumn Green.

Cornflour Blue.

Mussel Grey.

Ocean Blue.

Oyster Grey.

Show more

Cure time

Two hours.

Impact resistance

Class I, ≥IR 4.

Reaction to fire

Not tested.

Release of corrosive substances

SR.

Standard

To BS EN 1504 and BS EN 13813.

Third-party certification

To British Board of Agrément-certified (20/Q064).

Water vapour permeability

Class III.

Wear resistance

≤AR 0.5.

Cleaning options

Guidance for specification option:

Cleaning equipment and products for all industrial and commercial floor maintenance. Consult manufacturer and insert requirements or omit:

  • Heavy Duty Wet Vacuum 30 Litre.
  • Heavy Duty Wet Vacuum 60 Litre.
  • Degafloor Eco-Clean.
  • The DegaWash Range.
  • Swift95.
  • The Maxey.
  • Emex.
  • Crusader.


Manufacturer guidance

Floor Cleaning Solutions.


See manufacturer literature 'DegaClean Cleaning & Maintenance Brochure'.

Sustainability data

Material

Resin

Methyl methacrylate

Manufacturer guidance

Methyl methacrylate resin.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

1

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

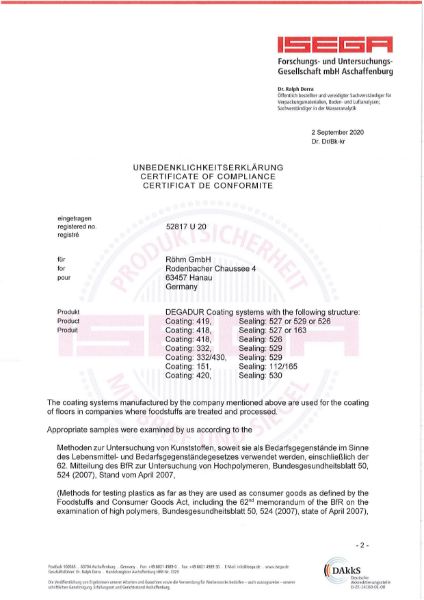

Certificate of Conformance for coating of floors in companies where foodstuffs are treated and processed

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

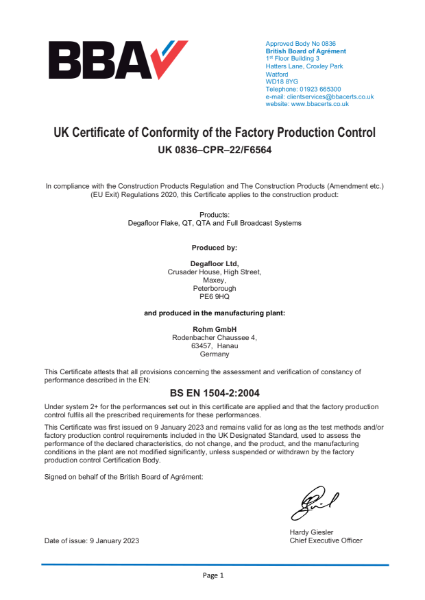

UK Certificate of Conformity of the Factory Production Control - UK 0836 CPR 22/F6564

BBA Agrément Certificate

BBA Agrément Certificate

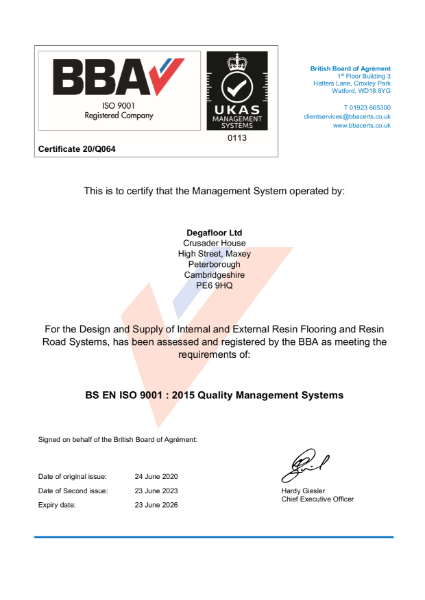

BBA ISO 9001 Certificate

BREEAM - Certification

BREEAM - Certification

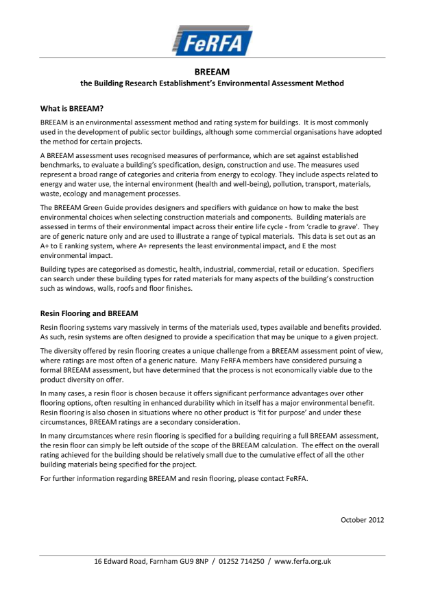

FERFA BREEAM Statement

HACCP International Product Compliance Certification

HACCP International Product Compliance Certification

HACCP International certification

Literature

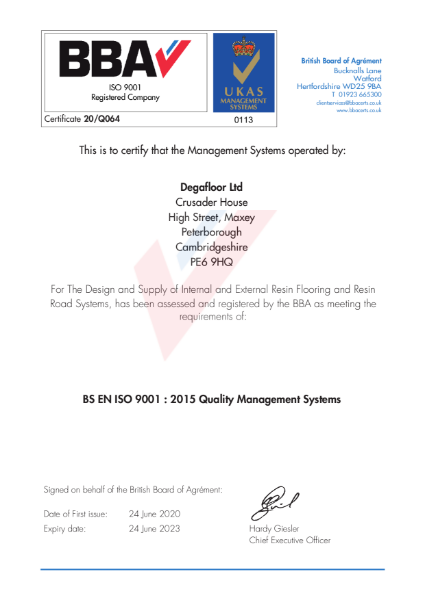

BS EN ISO 9001 : 2015 Quality Management System

BS EN ISO 9001 : 2015 Quality Management System

Degafloor Commercial Kitchen Brochure Resin Flooring

Degafloor Commercial Kitchen Brochure Resin Flooring

Degafloor Food & Drink Brochure -resin Flooring

Degafloor Food & Drink Brochure -resin Flooring

DegaClean Cleaning & Maintenance Brochure

DegaClean Cleaning & Maintenance Brochure

Degafloor General Brochure - resin flooring

Degafloor General Brochure - resin flooring

Degafloor QT System

Degafloor QT System

HACCP International Food Certification

HACCP International Food Certification

Case studies

Degafloor QTA - Aston Villa Football Club - resin flooring

Degafloor QTA - Aston Villa Football Club - resin flooring

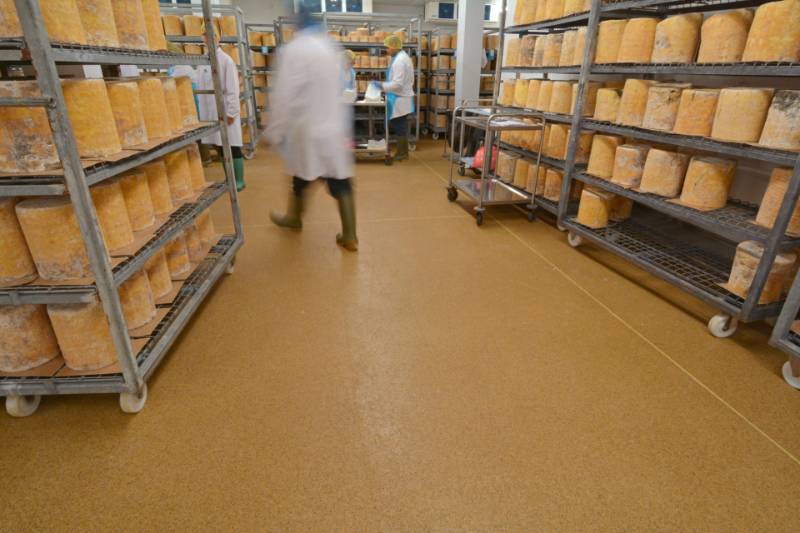

Degafloor Quartz Trowelled Aggregate - Long Clawson Dairy Resin Flooring

Degafloor Quartz Trowelled Aggregate - Long Clawson Dairy Resin Flooring

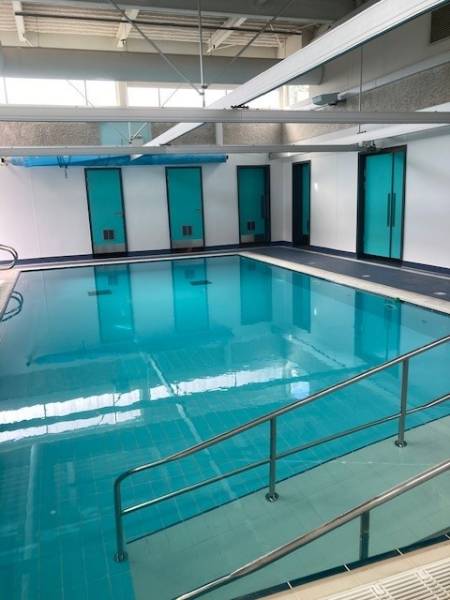

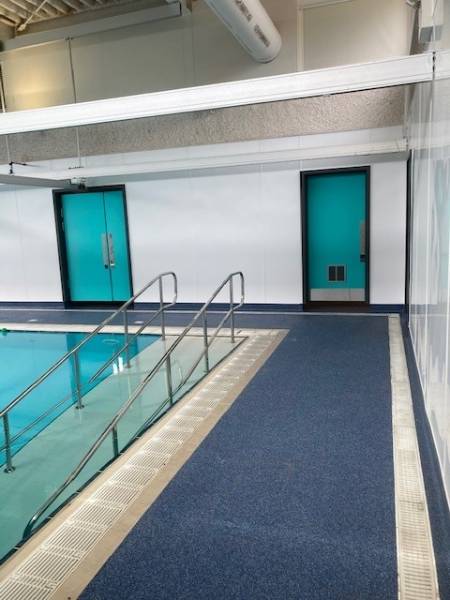

Degafloor QTA System - Swimming Pool & Changing Rooms - Resin Flooring

Degafloor QTA System - Swimming Pool & Changing Rooms - Resin Flooring

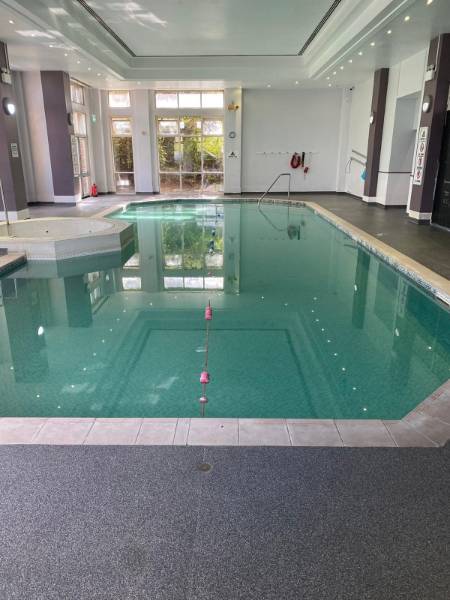

Degafloor QTA System - Swimming Pool Surround & Changing Rooms -Resin Flooring

Degafloor QTA System - Swimming Pool Surround & Changing Rooms -Resin Flooring

Degafloor QTA / Full Broadcast - Swimming Pool Area Resin Flooring

Degafloor QTA / Full Broadcast - Swimming Pool Area Resin Flooring

Similar products from Degafloor Ltd

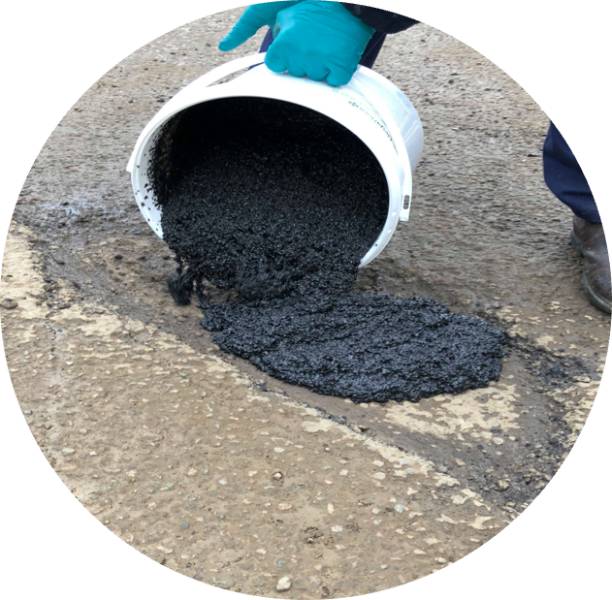

Degafill Road Repair Kit - Asphalt Repair

Degafill Road Repair Kit - Asphalt Repair

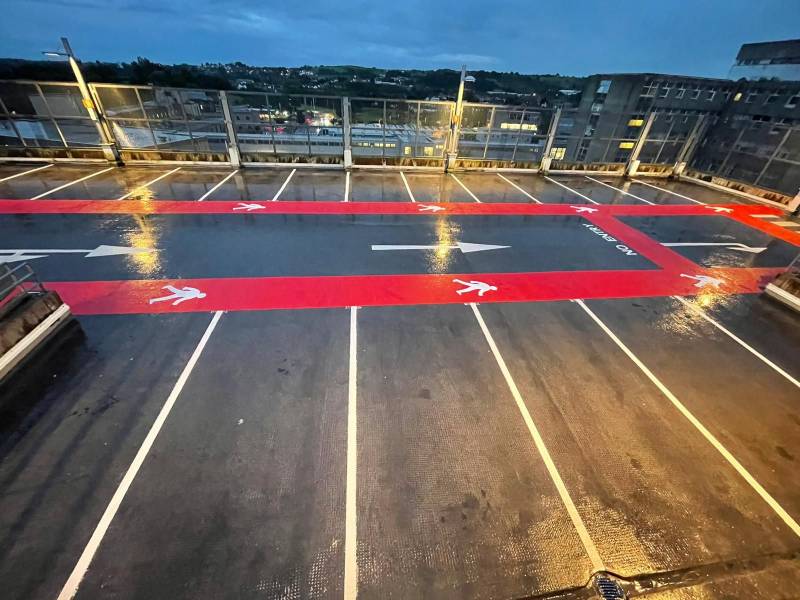

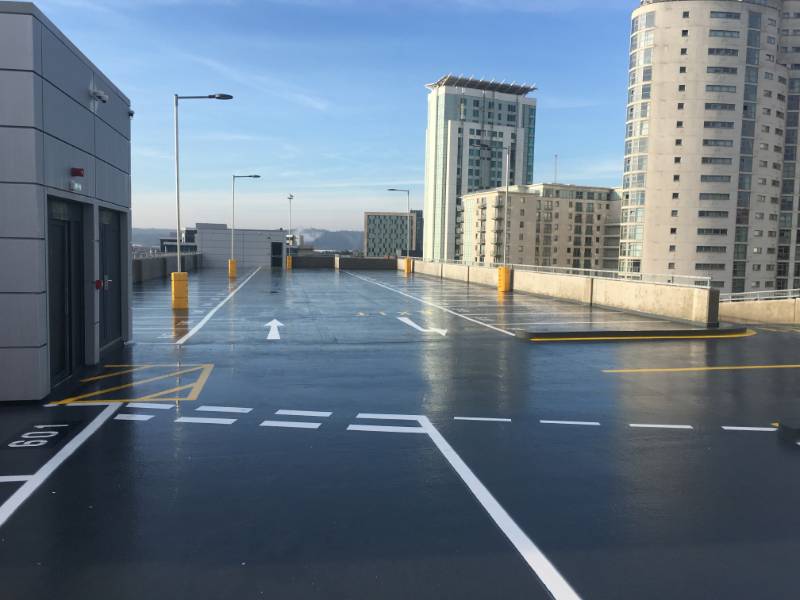

Degafloor Car Park System - resin  - Resin Flooring

Degafloor Car Park System - resin - Resin Flooring

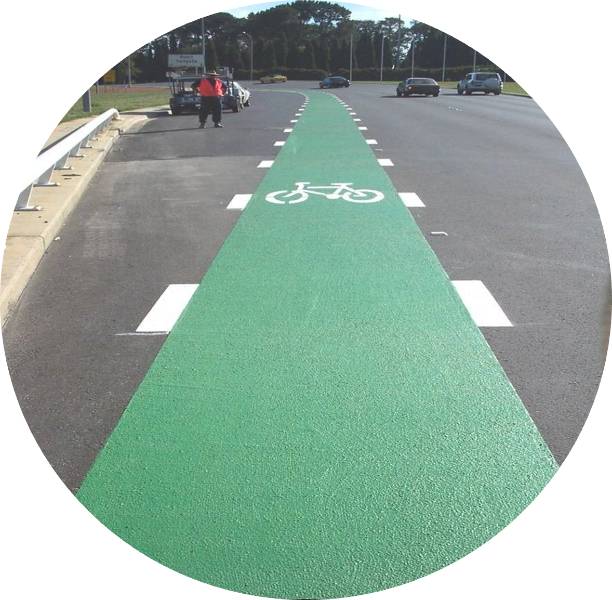

Degafloor Cycle Route System   - Resin Flooring
