Verified by manufacturer 6 months ago
Squared panel
BBA Agrément Certificate
Certificate type
EPD
Certificate type

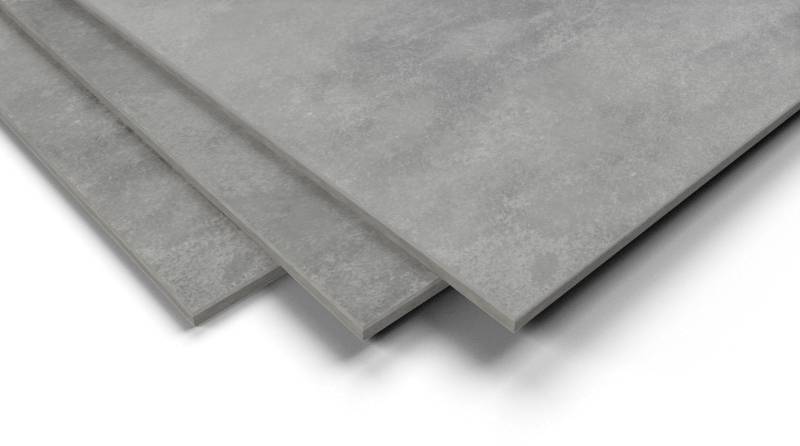

Fibre cement cladding panels with A2 fire rating for external, internal and soffit use, with natural stone look.
Suitable for use as back ventilated and drained rainscreen cladding and soffits.
SVK panels are manufactured from a homogeneous mixture of Portland cement, selected reinforcement fibres, additives and water which is built up in thin layers and compressed to create sheets which are left to dry and harden. Decoboard Pure provides a natural stone look for a modern aesthetic.
Features and benefits:
Color | Grey Guidance for specification option: Gale, Burst, Thunder. Manufacturer guidanceAvailable in 3 different colour shades from light grey to very dark grey. |
Finish | Sanded Smooth |
Material | Fibre cement |
Shape | Rectangle |
Length | 3085 mm 3070 mm 2535 mm 2520 mm |
Width | 1235 mm 1220 mm |
Height | 8 mm Guidance for specification option: 10mm and 12mm on request. |
Warranty description | Ten year Guidance for specification option: Material guarantee. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding H20/155 Sheet cladding (attached to timber battens) H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) |
Standard | BS EN 12467. |
Fire rating | A2-s1, d0.Guidance for specification option: Reaction to Fire (BS EN 13501-1). |
Sheet size | |
Nominal thickness | 8 mm.10 mm. |
Length | 3085 mm.3070 mm.2535 mm.2520 mm. |
Width | 1235 mm.1220 mm. |
Edges | Square. |
Finish as delivered | Sanded.Painted. |
Colour | Gale (DPU01).Burst (DPU02).Thunder (DPU03).Manufacturer guidanceGrey. |
Durability | RL ≥0.75. Guidance for specification option: Durability (Freeze-Thaw) RL ≥ 0.75. Durability (Warm Water) RL ≥ 0.75. Durability (Soak-Dry) RL ≥ 0.75. Manufacturer guidanceDurability (Heat-Rain) Pass. |
Water impermeability to EN 1307 annex G: | No Water Drops. |
Modulus of elasticity | 14 000 MPa. |
Density | ≥1700 kg/m³ . |
Variation | Level I. |
BendingStrength | Class 5 (≥24 MPa). |
Weather resistance | Category A. |
Fitting/ Fixing | Rivets. Screws. Secret fix. |
Nominal weight | 14.6 kg/m². |
Finished size | 3070 x 1220 mm. Guidance for specification option: Squared. 2520 x 1220 mm. Guidance for specification option: Squared |
Third-party certification | BBA Certificate and ETA Certificate. |
Contains Red List materials | No |
Country of product manufacture | Belgium |
