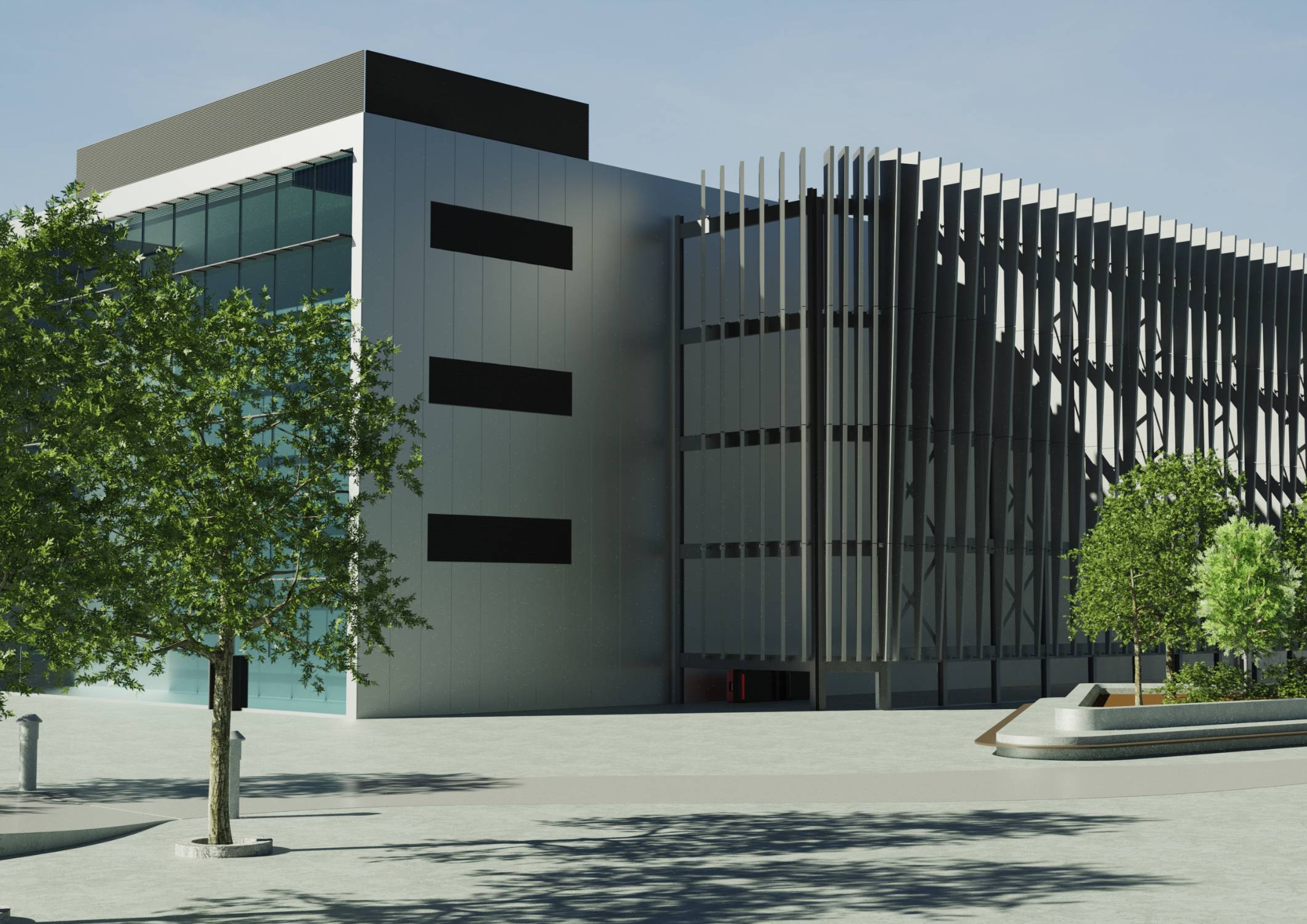

Data Centre & Gantry Façade Systems Continuous Aluminium Façade Fin Systems - Cubic
Verified by manufacturer 3 days ago

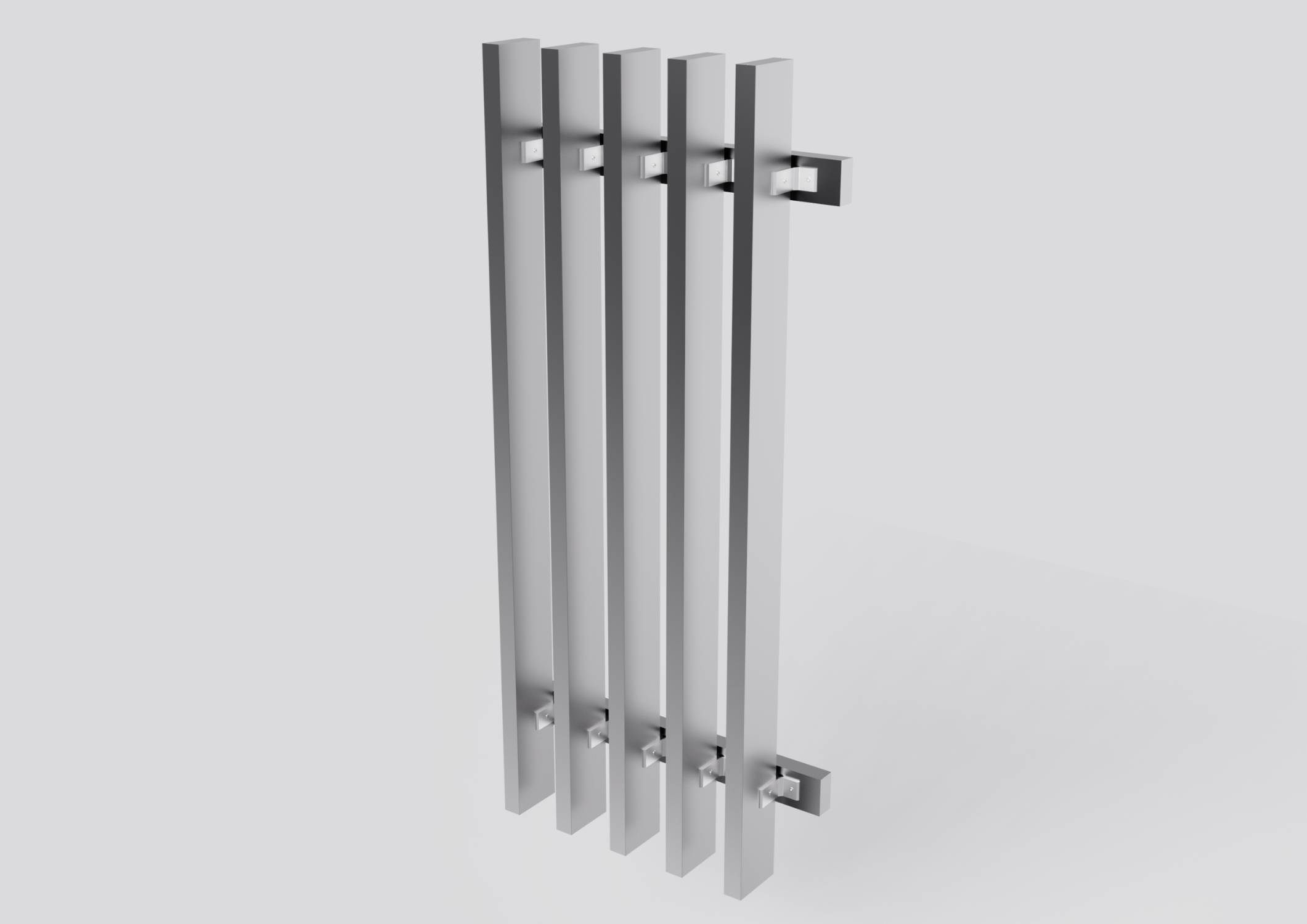

100 x 50 mm Rectangle Fin (Cubic)
100 x 50 mm Rectangle Fin (Cubic)
Continuous aluminium façade fin system.
Application
- Office facades.
- Schools & Universities
- Offices.
- Car showrooms
- Leisure Centres
- Shopping Centres & Retail Units
- Commercial Buildings.
- Data Centres
- Car Parks (MSCP)
- Hotels
- Hospitals
- Care Homes & Retirement Villages
- Airports
- Museums & Art Galleries
- Inside & outside applications
Description
The Architectural Facade Fin system can be supplied in continuous single format either vertically, horizontally or angled to provide an enhanced and decorative facade where ventilation or screening are paramount.
Profile thickness: 2.0 mm.
General information
Color | Other Beige Black Blue Bronze |
Finish | Anodized Powder-coated Mill Textured Grained |
Material | Aluminium |
Shape | Rectangle Other Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/54 Louvres L10/650 Metal louvres |
Specification data - Louvre screen systems
Classification data | |
Louvres | |
Type | 6063-T6 extruded aluminium alloy to BS EN 12020. |
Operation | Fixed. |
Installation fasteners | A2 stainless steel. |
Accessories | Not required. Mitred corner panels. Bird Beak Cleats, extruded aluminium, grade 6063. |
Finish: | Polyester powder-coated to BS EN 12206-1 to minimum 40 μm. Guidance for specification option: Available in RAL/ BS colours from the standard range. Matt/ gloss/ satin finish. Insert requirements. Anodized to 25 μm to BS 3987. Mill finish. |
Colour: | Manufacturer guidanceInsert requirements. |
Reaction to fire | To BS EN 13501-1, Class A2-s1,d0 (polyester powder-coated). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | The global recycling efficiency rate (RER) of aluminium is currently 76% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAvailable by request in low carbon aluminium billet/ingot maximum 4.0 kg CO2-equivalents per kg of aluminium |
Expected Life | 80 year |
