Data Centre Floor Grilles
Verified by manufacturer 5 months ago
Aluminium supply or extract air grille for raised access floors.
Application
Suitable for use in raised access floor systems in computer rooms and data centres.
Description
Perforated Data Centre Grilles for supply or extract applications. The grilles are designed to integrate with the most popular raised access floor systems. Available in both light and extra heavy duty grades to BS EN 13264:2001.
Features and benefits:
- Manufactured from heavy gauge aluminium extrusions, the frames are of fully welded construction.
- Extra heavy duty versions incorporate rear reinforcement mullions to maintain full structural integrity.
- The grille core is constructed from extruded aluminium bars with a face thickness of 6 mm and is welded into the retaining frame.
- The frame profile is designed to sit directly in contact with the floor pedestal earth terminal, removing the need for additional earth bonding connections and their associated expense.
General information
Color | Silver |
Finish | Anodized Powder-coated Mill Coated Smooth |
Material | Aluminium |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Warranty description | Ten year |
Uniclass |
Product range |
Specification data - Air grilles
Application | Extract.Supply. |
Duty | |
Air volume | Guidance for specification option: Insert requirements. |
Size | 600 x 600 mm.Guidance for specification option: As standard. Other sizes are available on request. |
Shape | Square. |
Grille type | Fixed bar. |
Position | Floor. |
Material | Aluminium. |
Finish | Polyester powder-coated, BS/ RAL.Guidance for specification option: Insert colour requirement. Mill finish.Nylon coating.Linished.Shadow line. |
Accessories | None.Damper.Sliding plate. |
Core | Fixed core. Removable core. |
FrameType | Modular tile 1.5 kN loading. Guidance for specification option: Light duty grille. Modular tile 4.5 kN loading. Guidance for specification option: Extra heavy duty grille. The R76 exceeds the requirements of BS EN 13264:2001 for extra heavy grade structural classification in static load tests, rolling load tests and impact load tests. |
Tile thickness | Floor tile replacer. Packers to suit specified tile depth. 41 mm thick. Specify thickness. Guidance for specification option: Insert requirements. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | The global Recycling Efficiency Rate (RER) of aluminium is currently 76% |
Literature

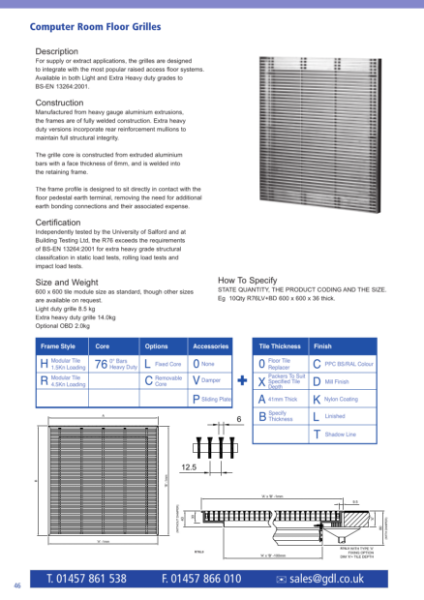

Computer Room Floor Grilles
