DampSafe 603 Tile D-Mat

Application

Suitable for use on tiled or paved floors, and floor builds that include underfloor heating systems.

Suitable substrate:

  • Solid floors of concrete or screed;
  • Ventilated timber floors.

Description

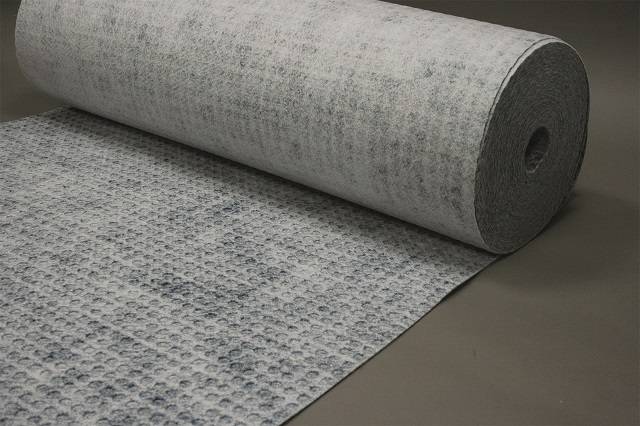

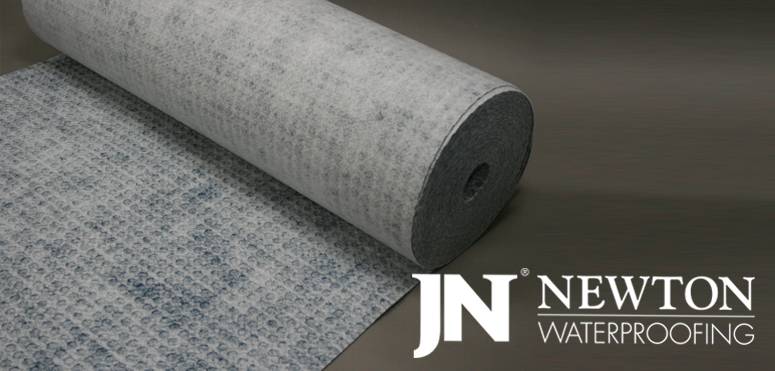

Newton DampSafe 603 Tile D-Mat is a 3 mm decoupling mat that isolates the tiled floor surface from cracking or movement in the substrate and relieves compressive stress acting on specific points on the floor.


The dimpled membrane also ventilates the substrate below to equalize vapour pressure.

The fleece surfaces quickly absorb adhesives to provide an exceptional bond to both the substrate below and the tiled floor above.

The material is also elastic and highly impervious to the diffusion of water vapour.


Features and benefits:

  • Accommodates movement and prevents the transfer of stresses from the substrate to the tiled surface.
  • Low thermal conductivity of 0.0369 W/m·K (Watts per metre-Kelvin).
  • Adds only 3 mm to the floor finishes.
  • Effective air and vapour barrier if joints are sealed.
  • Lightweight and easy to install.
  • Load-bearing, tough and durable.


Accreditations and approvals:

DampSafe 603 Tile D-Mat is independently tested by SKZ TeConA GmbH to confirm performance data to the requirements of DIN EN 13967:2012 in accordance with the EU Construction Products Regulations. Please see the CE Label or the products’ Declaration of Performance for further information.

In addition to the above, DampSafe 603 Tile D-Mat has been tested for the Determination of the Thermal Conductivity to BS EN 12667:2001 which confirmed a thermal conductivity of 0.0369 W/m·K.

General information

Color

Dimpled sheet: Blue, Fleece: White.

White

Blue

Finish

Smooth

Grey, fleeced surface ready for tiling onto

Material

Polyethylene

Low density polyethylene.

Shape

Other

3 mm thick sheet tiling membrane

Length

30000 mm

Width

1000 mm

Height

3 mm

WarrantyDescription

30 year

Newton 603 Tile is supplied with a product warranty of 30 years. Please note that this is not a guarantee. The installation guarantee is provided by the installing contractor

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

N15/330 Plastics sheet

N15/330 Plastics sheet

Product range

Sheet Flooring Membranes

Specification data - Plastics sheets

Material

Low-density polyethylene (PE-LD).

Purpose

The decoupling mat isolates the finished floor surface from any cracking or movement within the substrate and provides improved distribution and relief from compressive stress acting on specific points on the floor. Furthermore, the interconnecting air channels around the dimples ventilate the substrate below to equalize vapor pressure.

Decoupling mat for tiling.

Standard

To EN 13967:2012.

Performance characteristics

-

Resistant to underground gases

Highly resistant to water, alkalis, saline solutions and organic acids, and is not affected by minerals. It is also resistant to bacteria, fungi and other small organisms.

-

Water vapour resistance (minimum)

Highly impervious to the diffusion of water vapour.

>3020 MN·s/g.

Fire performance

F – Not tested.

UV stabilization

Protect from UV radiation.

Physical properties

-

Colour

Blue.

White.

Weight (minimum)

17 kg.

Dimensions

-

Thickness (minimum)

3.4 mm.

Width (minimum)

1 m.

Roll length (minimum)

30 m.

Area weight

550 g/m².

Stud height

Approximately 3 mm.

Dimple spacing

2500 per m².

Air gap between dimples

1.56 L/m².

Installation temperature range

No restriction.

Service temperature range

-40°C to +80°C.

ThermalConductivity

0.0369 W/m·K.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

0 kg·CO₂e/kg

Recyclability

0

Recycled content

0 %
