Damp Proof Membrane/ Floor Covering System for Rapid Installation
Verified by manufacturer 2 days ago

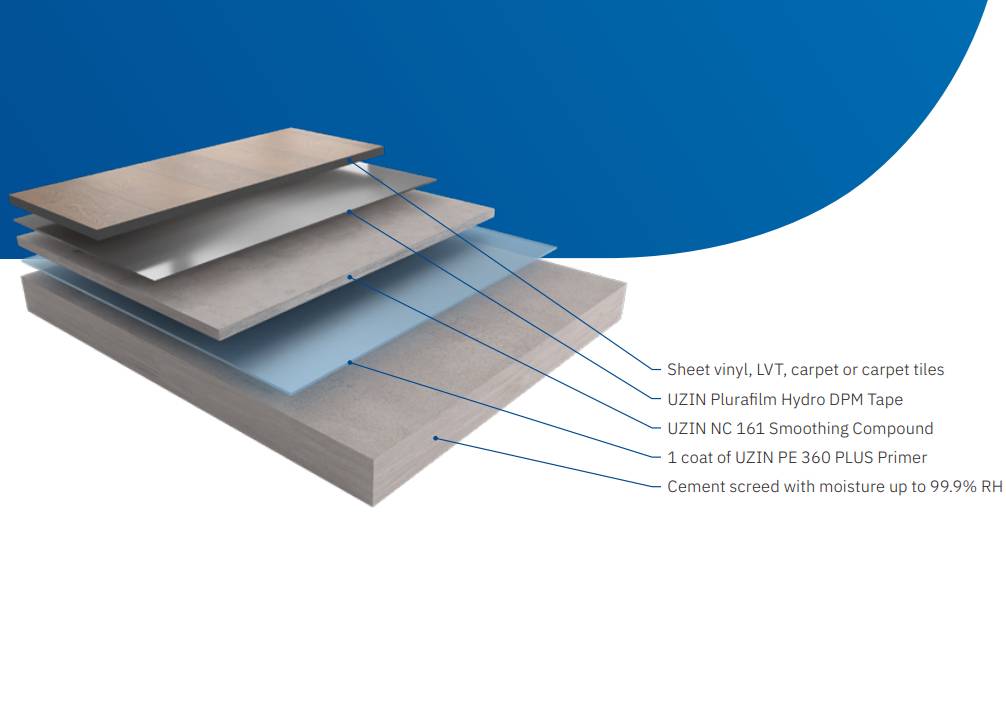

An innovative damp proof membrane system combining moisture-tolerant primers, smoothing compounds, and DPM tape, which allows floor coverings to be installed over damp cement screeds in 1–2 days.
Application
- For use over cement screed with moisture up to 99.9% RH.
- Suitable for underfloor heating for residual moisture only, provided the underfloor heating has been commissioned in accordance with the floor covering manufacturer's guidelines.
Areas:
- Residential
- Offices
- Retail
- Schools and educational facilities
- Healthcare.
Description
An innovative damp proof membrane system combining moisture-tolerant primers, smoothing compounds, and DPM tape, which allows floor coverings such as LVT, vinyl, carpet, or rubber to be installed over damp cement screeds in just one to two days.
Features and benefits:
- Rapid damp proof membrane and floor covering installation.
- Once the DPM tape is applied, the area is immediately ready for foot traffic and use.
- Quick and easy to install damp proof membrane.
- The damp proof membrane is resistant to alkaline moisture and rising moisture.
- Damp proof membrane compatible for use over underfloor heating.
- Solvent-free formulations.
General information
Color | Other Guidance for specification option: Varies according to required floor covering. |
Finish | Smooth |
Material | Other |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Approx, 3–4 mm excluding floor covering. |
Uniclass |
Specification data - Cold-applied liquid floor damp-proofing systems
Classification data | |
System performance | Cement screed with moisture up to 99.9% RH; suitable for underfloor heating for residual moisture only, provided the underfloor heating has been commissioned in accordance with the floor covering manufacturer's guideline |
Substrates | |
Preparation | Contaminate free. |
Pointing and filling mortar | Guidance for specification option: Insert requirements or omit. |
Primer | One coat of UZIN PE 360 PLUS Primer. Guidance for specification option: Ready-mixed moisture tolerant dispersion-based primer for absorbent substrates, screeds and concrete. |
Damp-proof coatings | |
Coating materials | UZIN Plurafilm Hydro DPM Tape. If the subfloor is uneven, pre-coat with a coat of UZIN NC 161 Smoothing before applying the tape. Guidance for specification option:
|
Floor covering | Sheet vinyl, LVT, carpet or carpet tiles; supplied by others. Guidance for specification option: Insert requirements or specify separately. |
Minimum system thickness | Approx. 3–4 mm excluding floor covering. Guidance for specification option: Thickness maybe more depending on the depth of the smoothing compound applied. |
Usage | Light to medium duty. |
Compressive strength | C30. |
Flexural strength | F7. |
Reaction to fire | A1 fl. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Other |
Literature
Damp-Proof Membrane (DPM)/ Floor Covering System for Rapid Installation - Flyer
