d² Dura Quickspan® - Heavy duty fire rated aluminium decking

Verified by manufacturer 21 hours ago

DDA06101 - 18 mm Plank

Dura Composites Ltd Variant:
Product certifications:
  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

  • EPD

    EPD

    Certificate type

Easy to install, A2 fire-rated aluminium decking systems for all applications. Each board has a double skin with an anti-slip surface and uniform underside to provide an attractive in-built soffit.

Jump to:
Request BIM
+44 (0)1255 423601 Website

Application

  • High-rise balconies.
  • Rooftop terraces.
  • Walkways.
  • Commercial flooring.
  • Hotels.
  • Pub and restaurant terraces.
  • Park homes and holiday lodges.
  • Schools and universities.
  • Student accommodation.
  • Hospitals.
  • Public buildings.
  • Pedestrian bridges.

Description

d² Quickspan is a non-combustible, fire-rated aluminium decking system for balconies, terraces, and walkways, tested to BS EN 13501-1 A2-s1,d0 and A2fl-s1 in UKAS-accredited laboratories.

Its centre-fix design uses a hidden fixing channel to fasten boards directly to the substructure, creating a clean surface that minimises trip and slip risks. Because fixings are secured in the central channel there are no fiddly clips, which saves handling time and labour. Final planks can be fitted after the balcony is craned into place, making the system ideal for prefabrication and rapid installation.

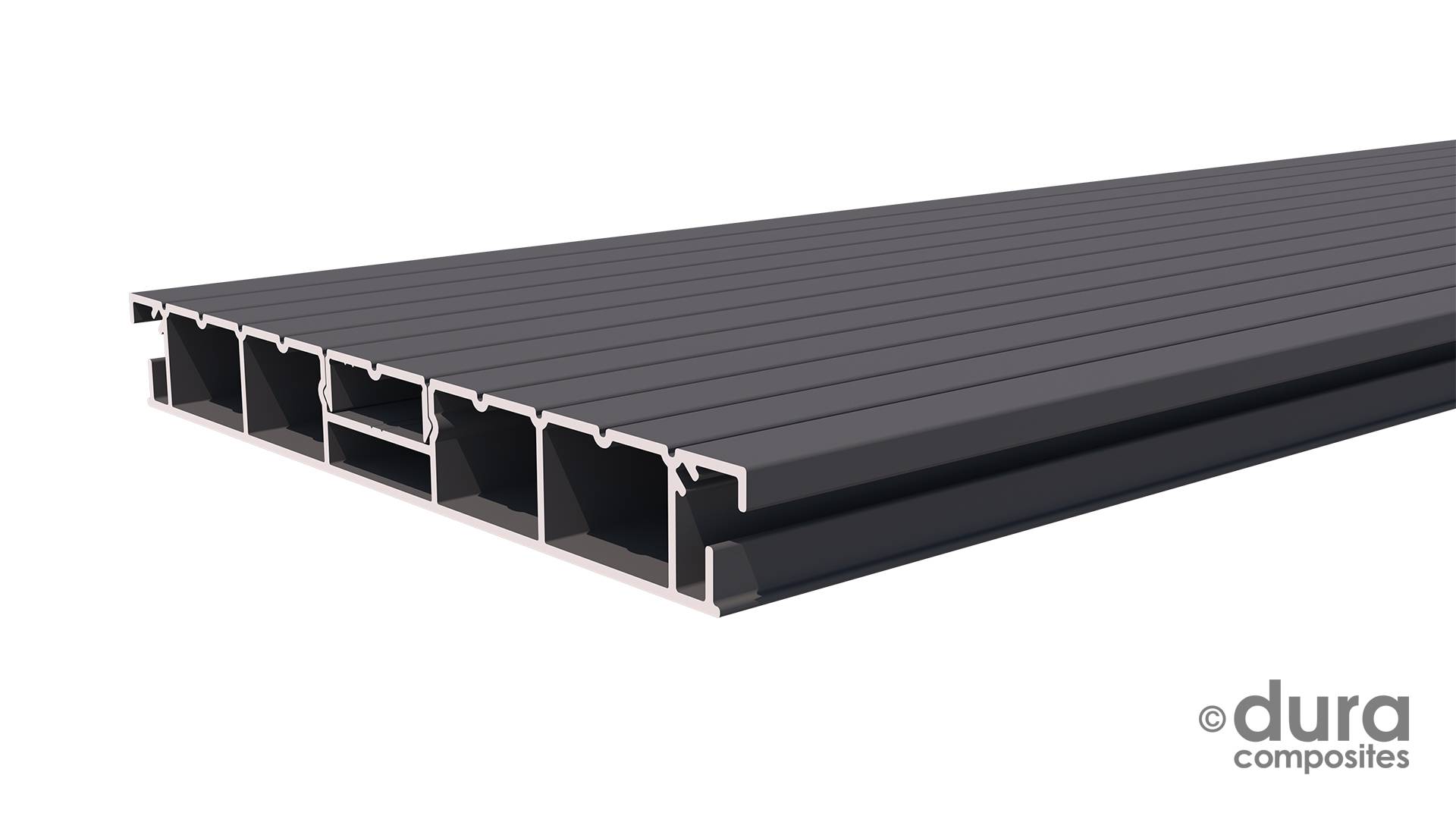

d² Quickspan’s dual-skin profile delivers exceptional span strength of up to 1300 mm. This means fewer supports, faster installation, and lower substructure costs, all while using significantly less material to reduce weight, cost, and embodied carbon.

An integrated drainage channel within each board captures water and diverts it to outlets at the board ends, enabling a Positive-Drain system where required. The same board can also operate in Free-Drain mode, offering full flexibility for smaller balcony designs.

Backed by a 30-year warranty, 60-year structural life expectancy, and verified by our EPD as the lowest carbon balcony decking in the world based on publicly available comparative data, d² Quickspan is built for long-term, low-carbon performance.

The 30-year warranty covers material or manufacturing defects for peace of mind, whilst the product has a minimum life expectancy of 60-years.

  • Lowest carbon balcony decking in the world.
  • Made in Britain.
  • Non-combustible A2 fire-rated safety performance.
  • Integrated drainage channel for positive or free drain.
  • Dual-skin strength with reduced material usage.

General information

Color

Grey

Other

Guidance for specification option:

To meet project's specific needs, d² Dura Quickspan can be manufactured in any RAL colour — simply provide the preferred code.

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

3660 mm

Manufacturer guidance

To meet project's specific needs, d² Dura Quickspan can be manufactured at lengths up to 7 m.

Width

150 mm

Height

18 mm

27 mm

Warranty description

30 year

Guidance for specification option:

Subject to a correct and proper maintenance regime.

Uniclass

Pr_25_71_51_04 Aluminium profiled sheet deckingPrimary

CAWS

Q55/380 Deck boards

SKU Code

DDA06101

Specification data - Aluminium profiled sheet decking

Classification data

Grade

6063 T6.

Guidance for specification option:

100% 6063 T6 grade aluminium.

Profile

-

Depth (overall)

18 mm.

Top surface

Powder-coated.

Board colour

Anthracite (RAL 7043).

Guidance for specification option:

DDA09001.

Other.

Guidance for specification option:

To meet project's specific needs, d² Dura Quickspan can be manufactured in any RAL colour — consult manufacturer and insert the preferred code.

Fire rating (to BS EN 13501)

A2-s1,d0.

Board length

3660 mm.
Other.

Guidance for specification option:

To meet project's specific needs, d² Dura Quickspan can be manufactured at lengths up to 7 m. Consult manufacturer and insert requirements.

Width

150 mm.

Weight

5.42 kg.

Manufacturer guidance

Plank weight.

Fixing

Hidden bi-metallic pan head self-drilling screws.

Slip resistance

To BS 7976-2, 67 PTV (dry/ wet).

Guidance for specification option:

Low risk.

Ancillary items

Not required.
d² Dura Quickspan® Channel Insert.

Guidance for specification option:

  • Length 3660 mm.
  • Width: 25.8 mm.
  • Depth: 8.9 mm.

d² Dura Quickspan® Gutter Insert.

Guidance for specification option:

  • Length 3660 mm.
  • Width: 29.3 mm.
  • Depth: 16 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium
Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Certified

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/unit)
Stage:A1–A3 ('Production stage')
Normalised unit :
Declared unit : 6.63

Lower emissions

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

68.5 %

Expected Life

60 year

Product certifications

Product certifications

EPD

d² Dura Quickspan 18mm & Dura Aluminium Substructure (Free-Drain Solution) | Self-Declared EPD

EPD

d² Dura Quickspan 18mm & Dura Aluminium Substructure (Positive-Drain Solution) | Self-Declared EPD

EPD

d² Dura Quickspan 18mm | Self-Declared EPD

EPD

d² Dura Quickspan 18mm with Positive-Drain Gutter Insert | Self-Declared EPD

EPD

d² Dura Quickspan 27mm & Dura Aluminium Substructure (Free-Drain Solution) | Self-Declared EPD

EPD

d² Dura Quickspan 27mm & Dura Aluminium Substructure (Positive-Drain Solution) | Self-Declared EPD

EPD

d² Dura Quickspan 27mm | Self-Declared EPD

EPD

d² Dura Quickspan 27mm with Positive-Drain Gutter Insert | Self-Declared EPD

EPD

EPD

Aluminium Decking | EPD

Literature

d² Dura Quickspan® 18mm | Data Booklet

d² Dura Quickspan® 18mm | Data Booklet

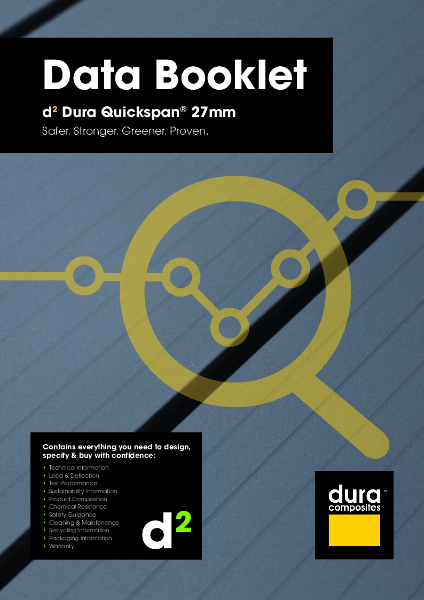

d² Dura Quickspan® 27mm | Data Booklet

d² Dura Quickspan® 27mm | Data Booklet
