CuvaCurve - Cycle Shelter

Name: CuvaCurve - Cycle Shelter
Brand: Bellsure Group
SKU: xjfGnp3macqu85vCratZtw

Verified by manufacturer 3 days ago

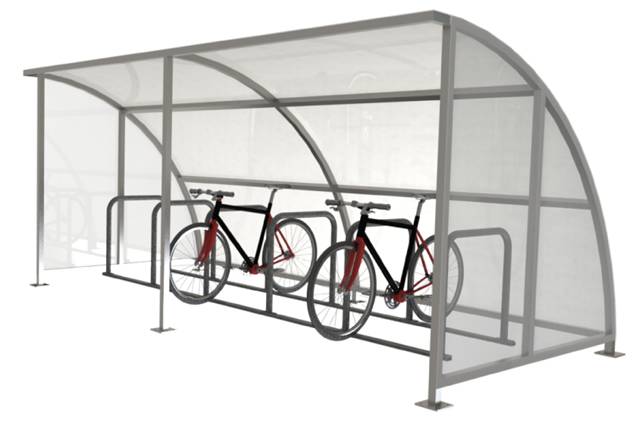

CuvaCurve - Open Front

Product certifications:

CuvaCurve cycle shelter comes with either an open-fronted or lockable configuration.

Jump to:

Application

Suitable for providing cover for a range of cycle parking options.

CuvaCurve cycle shelter comes with either an open-fronted or lockable configuration.

Features and benefits:

50 x 50 mm strongbox square section construction to EN 10219:2006.
3 mm polyethylene terephthalate glycol-modified (PET-G) UV2 panel sheets, with an option to upgrade to 5 mm.
Galvanised to BS EN 1461
Optional powder coating material to BS 3900.
Surface mounting or root fixing options available.
Hinged and sliding gates available.
Compatible with a range of cycle parking options.
Optional lockable front available.

Color	Clear Beige Black Blue Bronze Brown Copper Gold Cream Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Show more
Finish	Galvanized Powder-coated
Material	Steel Polyethylene
Shape	Other
Length	Bespoke
Width	2100 mm
Height	2100 mm
Warranty description	Two year

Uniclass	Pr_20_65_78_77 Semi-closed sheltersPrimary
CAWS	B91/385 Shelter B91/340 Cycle shelter

Classification data

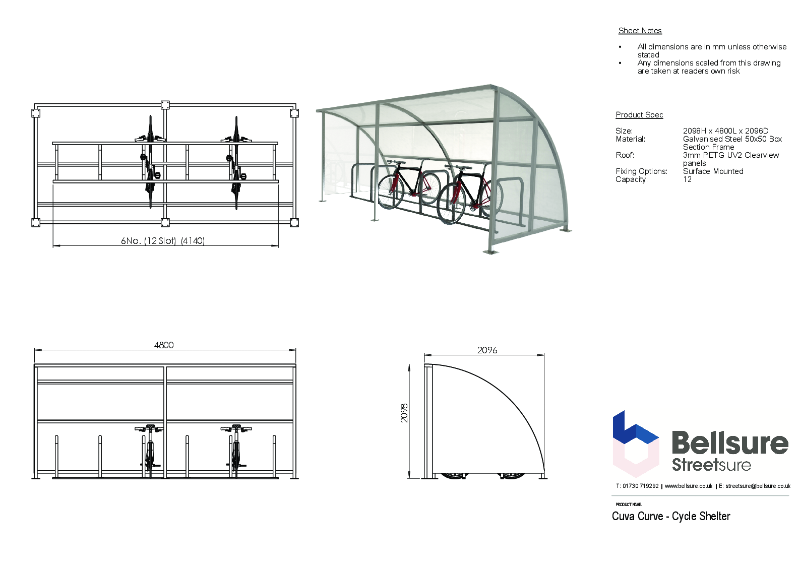

Shelter description	Open front cycle shelter.
Dimensions	-
Plan size	4800 x 2096 mm.
Height	2100 mm.
Frame	-
Material	Structural steel. Guidance for specification option: To BS EN 10219:2006, 50 x 50 mm strongbox square section frame.
Finish	Galvanized.
Colour	Silver.
Panels	Not required. Glazing plastics-framed panels. Guidance for specification option: End panels: 3 mm PET-G UV2 clearview panels. Available in 5 mm via upgrade. Consult manufacturer for details.
Cladding	-
Material	-
Finish	-
Colour	-
Roof covering	Glazing plastics. Guidance for specification option: 3 mm PET-G UV2 clearview panels. Available in 5 mm via upgrade. Consult manufacturer for details.
Openings	-
Doors	-
Accessories	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Fixing	Root fixed. Surface mounted with base plate.
Capacity	4 bicycles. 6 bicycles. 8 bicycles. 10 bicycles. 12 bicycles. 14 bicycles. 20 bicycles. 24 bicycles. 30 bicycles. 34 bicycles. 40 bicycles. 44 bicycles. 50 bicycles.
