Description

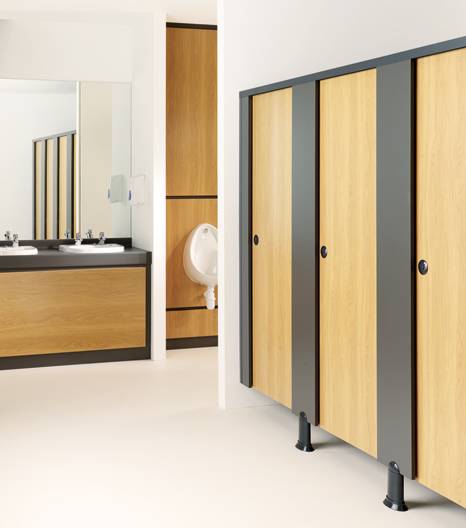

An 'off-the-shelf' frameless cubicle system supplied in oversized formats for cutting to size on-site. Available in melamine faced chipboard, with or without post-formed pilasters.

General information
Specification data - Panel cubicle systems
Product Reference

Cubicle Express

MFC pilasters.

Cubicle Express Post-formed

HPL-faced, post-formed pilasters.

Sizes -
Depth

Maximum 1800 mm from face of back wall or rear ducting.

Doors

Standard C1

1800 x 900 mm, rectangular, for adult use.

Children's C1C

1800 x 900 mm, with shaping to allow adult supervision.

Accessories

Document M compliant grab rails and door pulls

Venesta coat hook

Venesta toilet roll holder

Standard product features

Sizes:

  • Panels supplied in standard sizes for trimming and re-lipping with Venesta supplied PVC.
  • Overall height: 1950 mm from FFL.
  • Floor clearance 150 mm.

Construction:

  • Headrail: Dark grey powder coated aluminium channel.
  • Pedestals: Dark grey ABS. Adjustable to pilasters and partitions.
  • Wall and partition to pilaster fixings: Dark grey PVC channel.

Ironmongery:

  • Hinges: Aluminium safety hinge. Dark grey powder coated.
  • Bolt: Dark grey, ABS easy grip sliding bolt with emergency release and concealed fixings.

Product Options

Product reference:

– Cubicle Express:

  • Partitions/ Pilasters/ Doors: 18 mm thick, melamine faced, 660 kg/m³ grade moisture resistant chipboard. 1 mm matching PVC to all edges.

– Cubicle Express Post-formed:

  • Partitions/ Doors: 18 mm thick, melamine faced, 660 kg/m³ grade moisture resistant chipboard. 1 mm matching PVC to all edges.
  • Pilasters: 18 mm thick, 660 kg/m³ moisture resistant chipboard, faced both sides with high pressure laminate. 1 mm matching PVC to horizontal edges with vertical edges post-formed.

Colour:

Select from Venesta's standard Cubicle Express colour range.
