CS Allway® Metal Floor Joint Covers
Description

Standard and heavy duty metal, recessed exterior or interior expansion floor joint covers. Available in a range of joint width and material options. Can be used with moisture, acoustic or fire barriers.

Features:

  • Easy clean surface.
  • Multi-directional movement, vertical movement is engineered to allow for non-aligning opposing slabs.
  • Recess mounted metal floor joint covers.
  • Screw fixed - fixings by others.
  • Standard and heavy duty versions.

General information
Features

Easy clean surface

Multi-directional movement, vertical movement is engineered to allow for non-aligning opposing slabs

Recess mounted metal floor joint covers

Screw fixed - fixings by others

Standard and heavy duty versions

Uniclass 2015
Pr_35_90_53_53 Metal section movement jointsPrimary
Specification data - Metal section movement joints
Product Reference

CS Allway® Metal Floor Joint Covers

Joint width

up to 25 mm

up to 50 mm

up to 75 mm

up to 100 mm

up to 125 mm

up to 150 mm

Type

A wide range of joint covers are available. Insert requirement from manufacturer's literature.

Standard product features

Load capacity:

  • Standard duty: 250 kg point load.
  • Heavy duty: 1000 kg point load.

Product Options

Joint cover types:

- ALR series:

Aluminium floor joint covers incorporating recessed cover plates helping to reduce visual impact. Available in 25–100 mm joint widths.

- AL-HD series:

Heavy duty recessed aluminium floor joint covers. Available in 25–100 mm joint widths.

- ALW-HD series:

Floor to wall version of AL-HD. Available in 25–100 mm joint widths.

- AL-HDM series:

New to existing version of AL-HD. Available in 50 and 100 mm joint widths.

- ALRW series:

Floor to wall version of ALR. Available in 25–100 mm joint widths.

- ALR-M series:

New to existing version of ALR. Available in 25–100 mm joint widths.

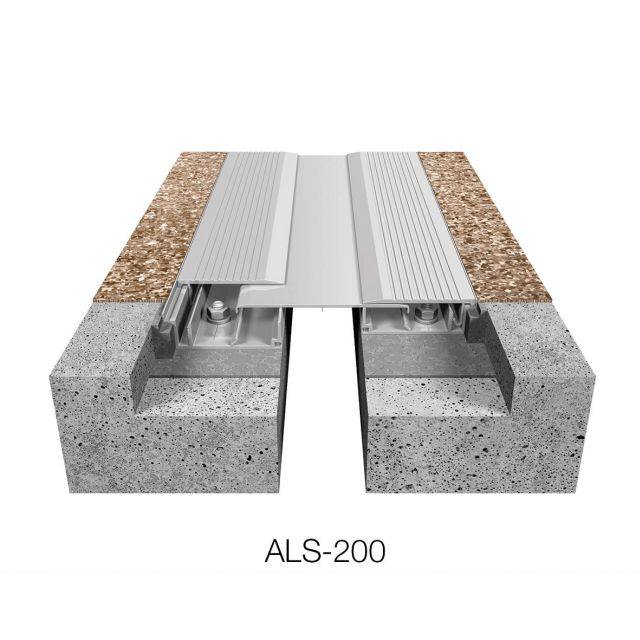

- ALS series:

Floor joint cover featuring a free-floating centre plate held in position by serrated aluminium cover plates, snap-locked into aluminium frames. Available in 25–100 mm joint widths.

- ALSW series:

Floor to wall version of ALS. Available in 25–100 mm joint widths.

- ALS-M series:

New to existing version of ALS. Available in 25–100 mm joint widths.

- SJP-SS series:

Recess mounted aluminium floor joint covers incorporating a stainless steel cover plate sitting over a standard floor finish. Available in 50–150 mm joint widths.

- SJ-200SS:

Recess mounted aluminium floor joint cover incorporating a flush stainless steel cover plate. Available in 50 mm joint width.

- SJ-200HDSS:

Heavy duty version of SJ-200SS. Available in 50 mm joint width.
