CS Allway® Metal Floor Joint Covers - Heavy Duty

Description

Heavy duty metal, recessed and surface mounted exterior or interior expansion floor joint covers. Available in a range of options to suit varying joint widths. Can be used with moisture, acoustic or fire barriers.

Features:

  • Highly durable covers capable of withstanding heavy rolling loads.
  • Interior or exterior applications.
  • Low maintenance.
  • Suitable for most floor finishes.

General information

Features

Highly durable covers capable of withstanding heavy rolling loads

Interior or exterior applications

Low maintenance

Suitable for most floor finishes

Material

Aluminium sections, mill finish, except for wall frames which are clear anodized

Uniclass 2015

Pr_35_90_53_53 Metal section movement jointsPrimary

Product range

Expansion Joint Covers

Specification data - Metal section movement joints

Product Reference

CS Allway® Metal Floor Joint Covers - Heavy Duty

Type

Insert requirement from Options below.

Standard product features

Material:

Aluminium sections, mill finish, except for wall frames which are clear anodized.

Load capacity:

1000 kg point load.

Product Options

Joint cover types:

- APF series:

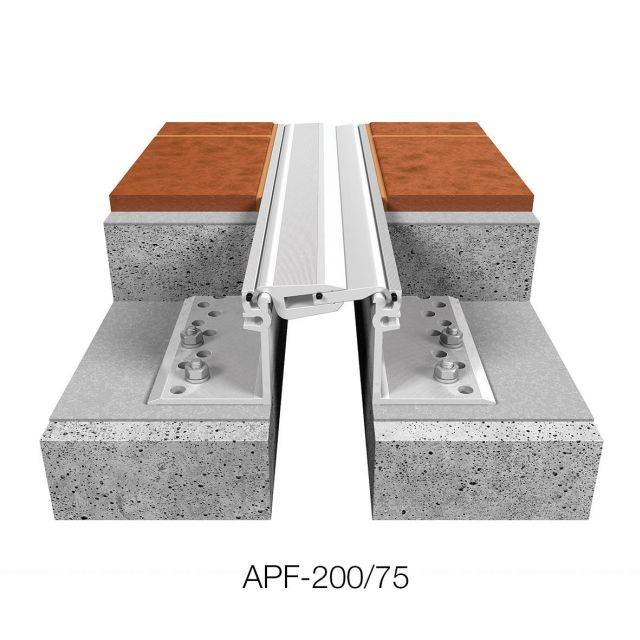

  • Aluminium recess mounted floor joint covers. Cover plates and exposed frame sections are serrated to provide an anti-slip surface.
  • Joint width range: 10–60 mm (APF-200/25, APF-200/38, APF-200/50, APF-200/75, APF-200/100), 20–85 mm (APF-300/25), 10–85 mm (APF-300/38, APF-300/50, APF-300/75, APF-300/100), 35–110 (APF-400/25) or 20–110 mm (APF-400/38, APF-400/50, APF-400/75, APF-400/100).
  • Frame depth: 25 mm (APF-200/25, APF-300/25, APF-400/25), 38 mm (APF-200/38, APF-300/38, APF-400/38), 50 mm (APF-200/50, APF-300/50, APF-400/50), 75 mm (APF-200/75, APF-300/75, APF-400/75), 100 mm (APF-200/100, APF-300/100, APF-400/100).
  • Exposed width: 84 mm (10–60 mm joint width range), 108 mm (20–85 mm joint width range), 109 mm (10–85 mm joint width range), 133 mm (35–110 mm joint width range), 134 mm (20–110 mm joint width range).

- APFW series:

  • Floor to wall version of APF.
  • Joint width range: 10–70 mm (APFW-200/25, APFW-200/38, APFW-200/50, APFW-200/75, APFW-200/100), 40–95 mm (APFW-300/25), 10–95 mm (APFW-300/38, APFW-300/50, APFW-300/75, APFW-300/100), 50–120 (APFW-400/25) or 20–120 mm (APFW-400/38, APFW-400/50, APFW-400/75, APFW-400/100).
  • Frame depth: 25 mm (APFW-200/25, APFW-300/25, APFW-400/25), 38 mm (APFW-200/38, APFW-300/38, APFW-400/38), 50 mm (APFW-200/50, APFW-300/50, APFW-400/50), 75 mm (APFW-200/75, APFW-300/75, APFW-400/75), 100 mm (APFW-200/100, APFW-300/100, APFW-400/100).
  • Exposed width: 84 mm (10–70 mm joint width range), 108 mm (40–95 mm joint width range), 109 mm (10–95 mm joint width range), 133 mm (50–120 mm joint width range), 134 mm (20–120 mm joint width range).

- APF-SM series:

  • Aluminium surface mounted floor joint covers. Cover plates and exposed frame sections are serrated to provide an anti-slip surface.
  • Joint width: 83 mm (APF-200SM), 108 mm (APF-300SM) or 133 mm (APF-400SM).
  • Exposed width: 273 mm (APF-200SM), 298 mm (APF-300SM), 323 mm (APF-400SM).
  • Horizontal thermal movement: +20/ -10 mm (APF-200SM), +30/ -10 mm (APF-300SM), +40/ -20 mm (APF-400SM).
  • Vertical thermal movement: ±25 mm (APF-200SM), ±35 mm (APF-300SM), ±40 mm (APF-400SM).

- APFW-SM series:

  • Floor to wall version of APF-SM.
  • Joint width: 83 mm (APFW-200SM), 109 mm (APFW-300SM) or 133 mm (APFW-400SM).
  • Exposed width: 178 mm (APF-200SM), 204 mm (APF-300SM), 228 mm (APF-400SM).
  • Horizontal thermal movement: +20/ -10 mm (APFW-200SM), +30/ -10 mm (APFW-300SM), +40/ -20 mm (APFW-400SM).
  • Vertical thermal movement: ±25 mm (APFW-200SM), ±35 mm (APFW-300SM), ±40 mm (APFW-400SM).
