Name: CS Allway® Metal Car Park and Stadia Joint Covers
Brand: hPGRo8w5aaTsUgpeHTwsps
SKU: jmDyiw8JMtxBjbpwYBfzjJ

Features

Aluminium frames are screw fixed - fixings by others

Aluminium joint covers have continuous extruded centre plate and side frame

Multi-directional movement

Smooth, easy clean surface

Material

Aluminium sections, mill finish

Product Reference

CS Allway® Metal Car Park and Stadia Joint Covers

Joint width

up to 100 mm

up to 125 mm

up to 150 mm

up to 175 mm

up to 200 mm

up to 225 mm

up to 250 mm

Type

Insert requirement from Options below.

Centre plate

Standard

Aluminium.

Stainless steel

Not available for KB or KBW.

Standard product features

Material:

Aluminium sections, mill finish.

Load capacity:

1000 kg point load.

Moisture barrier:

Installed beneath the expansion joint cover to help prevent moisture ingress from above or below.

Product Options

Joint cover types:

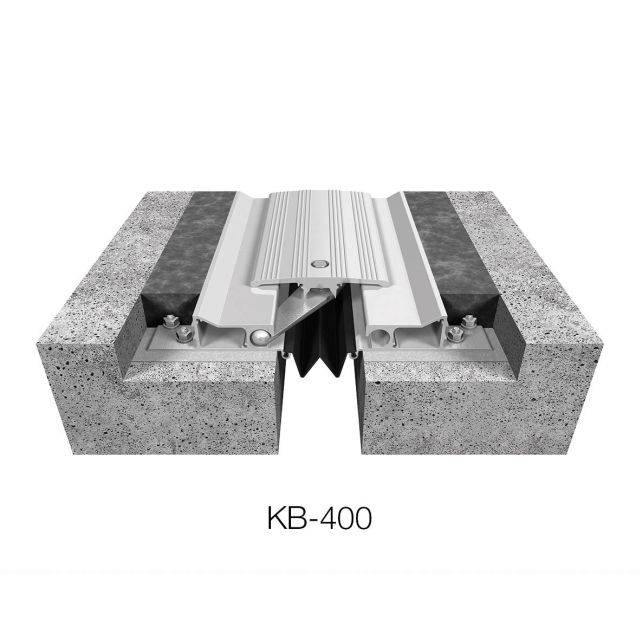

- KB series:

Features a turnbar housing which reduces lateral load damage.

Special design of the centre plate offers maximum strength yet minimal interference with pedestrians.

Joint width: 100 mm (KB-400), 125 mm (KB-500), 150 mm (KB-600), 175 mm (KB-700) or 200 mm (KB-800).

Exposed width: 286 mm (KB-400), 387 mm (KB-500), 413 mm (KB-600), 489 mm (KB-700) or 514 mm (KB-800).

Horizontal thermal movement: ±50 mm (KB-400), +100/ -75 mm (KB-500), +85/ -100 mm (KB-600), +140/ -100 mm (KB-700), +115/ -125 mm (KB-800).

Lateral thermal movement: ±50 mm (KB-400), ±63 mm (KB-500), ±75 mm (KB-600), ±85 mm (KB-700), ±100 mm (KB-800).

Vertical thermal movement: ±25 mm (all sizes).

- KBW series:

Floor to wall version of KB.

Joint width: 100 mm (KBW-400), 125 mm (KBW-500), 150 mm (KBW-600), 175 mm (KBW-700) or 200 mm (KBW-800).

Exposed width: 193 mm (KBW-400), 257 mm (KBW-500), 283 mm (KBW-600), 333 mm (KBW-700) or 359 mm (KBW-800).

Horizontal thermal movement: ±25 mm (KBW-400), +70/ -25 mm (KBW-500), +45/ -50 mm (KBW-600), +80/ -35 mm (KBW-700), +55/ -60 mm (KBW-800).

Lateral thermal movement: ±50 mm (KBW-400), ±63 mm (KBW-500), ±75 mm (KBW-600), ±85 mm (KBW-700), ±100 mm (KBW-800).

Vertical thermal movement: ±25 mm (all sizes).

- PTC series:

Allows for significant deflection of the adjacent floor slabs and a variable rotation damper system prevents the cover plate from "flapping" noisily under traffic loads.

The centre plate is fully interchangeable.

Joint width: 150 mm (PTC-600), 175 mm (PTC-700), 200 mm (PTC-800), 225 mm (PTC-900) or 250 mm (PTC-1000).

Exposed width: 499 mm (PTC-600), 524 mm (PTC-700), 550 mm (PTC-800), 575 mm (PTC-900) or 626 mm (PTC-1000).

Horizontal thermal movement: ±75 mm (PTC-600), ±85 mm (PTC-700), ±100 mm (PTC-800), ±110 mm (PTC-900), ±125 mm (PTC-1000).

Lateral thermal movement: ±50 mm (all sizes).

Vertical thermal movement: ±25 mm (all sizes).

Can be used in seismic areas - larger sizes are also available.

- PTCW series:

Floor to wall version of PTC.

Joint width: 150 mm (PTCW-600), 175 mm (PTCW-700), 200 mm (PTCW-800), 225 mm (PTCW-900) or 250 mm (PTCW-1000).

Exposed width: 381 mm (PTCW-600), 406 mm (PTCW-700), 431 mm (PTCW-800), 457 mm (PTCW-900) or 508 mm (PTCW-1000).

Horizontal thermal movement: ±75 mm (PTCW-600), ±85 mm (PTCW-700), ±100 mm (PTCW-800), ±110 mm (PTCW-900), ±125 mm (PTCW-1000).

Lateral and vertical thermal movement: ±25 mm (all sizes).

Can be used in seismic areas - larger sizes are also available.
