CS Allway® Gasketed Wall/ Ceiling Covers
Description

Flush interior wall and ceiling, single or dual gasketed expansion joint covers. Available as recess or surface mounted options to suit various joint widths. Can be used with acoustic or fire barriers.

Features:

  • Flush wall and/ or ceiling finish.
  • Multi directional movement.
  • Replaceable primary seal.

General information
Features

Flush wall and/ or ceiling finish

Multi directional movement

Replaceable primary seal

Material

Aluminium sections, mill finish

Uniclass 2015
Pr_35_90_53_53 Metal section movement jointsPrimary
Specification data - Metal section movement joints
Product Reference

CS Allway® Gasketed Wall/ Ceiling Covers

Joint width

up to 20 mm

up to 25 mm

up to 50 mm

up to 75 mm

up to 100 mm

up to 125 mm

Type

A wide range of joint covers are available. Insert requirement from manufacturer's literature.

Gasket colour

Black

Not available for HC and HCW types.

Greige

Not available for HC and HCW types.

Grey

Not available for HC and HCW types.

White

Standard product features

Material:

Aluminium sections, mill finish.

Product Options

Joint cover types:

- FCF series:

Flush gasketed suspended ceiling joint covers. Available in joint widths of 20–100 mm.

- FCFC series:

Corner version of FCF. Available in joint widths of 20–100 mm.

- FCS series:

Concertina type suspended ceiling joint covers. Available in joint widths of 50–100 mm.

- FCSC series:

Corner version of FCS. Available in joint widths of 50–100 mm.

- FGFS series:

Surface mounted expansion joint covers suitable for most types of wall construction. Available in joint widths of 20–50 mm.

- FGFSC series:

Corner or wall to ceiling version of FGFS. Available in joint widths of 20–50 mm.

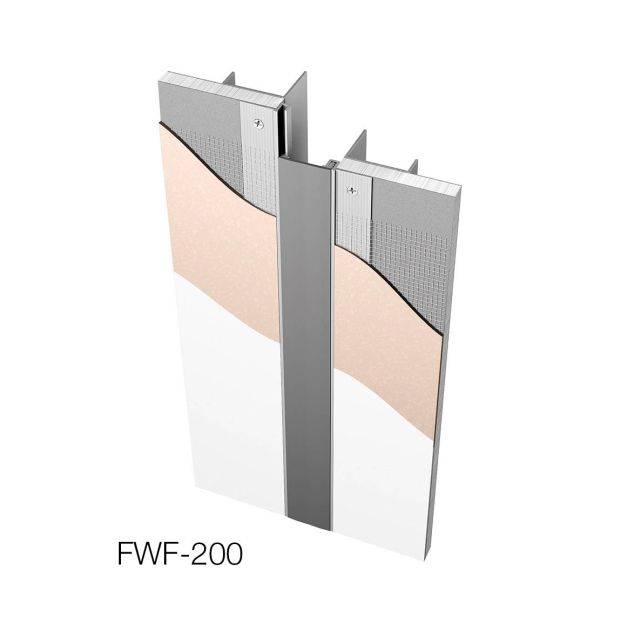

- FWF series:

Standard flush finish recess mounted expansion joint covers for dry lined walls. Available in joint widths of 20–125 mm.

- FWFC series:

Corner or wall to ceiling version of FWF. Available in joint widths of 20–125 mm.

- FWFP series:

Similar to FWF, but designed for use with plaster finished walls. Available in joint widths of 25 or 50 mm.

- FWFPC series:

Corner or wall to ceiling version of FWFP. Available in joint widths of 25 or 50 mm.

- FWS series:

Surface mounted wall or ceiling joint covers incorporating a concertina type gasket. Available in joint widths of 50–150 mm.

- FWSC series:

Corner version of FWS. Available in joint widths of 50–150 mm.

- FWS-M series:

Recess mounted wall joint covers incorporating a concertina type gasket. Available in joint widths of 50–100 mm.

- GTW series:

Wall or ceiling covers with a flush aluminium centre plate and dual gasket. Available in joint widths of 25–100 mm.

- GTWC series:

Corner version of GTW. Available in joint widths of 25–100 mm.

- HC series:

Suspended ceiling joint cover incorporating continuous co-extruded white PVC seal. Available in joint widths of 25–100 mm.

- HCW series:

Ceiling to wall version of HC. Available in joint widths of 25–100 mm.
