CS Allway® Gasketed Car Park and Stadia Joint Covers

Description

EPDM expansion joint seals designed for parking and stadia structures. Available in a range of joint width and frame depth options. Can be used with fire barriers.

Features:

  • Capable of withstanding regular vehicular movement.
  • Interior and exterior applications.
  • Watertight solutions.

General information

Features

Capable of withstanding regular vehicular movement

Interior and exterior applications

Watertight solutions

Material

Aluminium sections, mill finish

EPDM elastomeric seal, Black

Uniclass 2015

Pr_35_90_53_53 Metal section movement jointsPrimary

Product range

Expansion Joint Covers

Specification data - Metal section movement joints

Product Reference

CS Allway® Gasketed Car Park and Stadia Joint Covers

Joint width

up to 25 mm

up to 50 mm

up to 75 mm

up to 100 mm

Type

A wide range of joint covers are available. Insert requirement from manufacturer's literature.

Standard product features

Material:

  • Aluminium sections, mill finish.
  • EPDM elastomeric seal, Black.

Load capacity:

1000 kg point load.

Product Options

Joint cover types:

- CSSF series:

Recess mounted covers with a neoprene compression gasket bonded with epoxy adhesive to aluminium side frames. Available in 25 and 50 mm joint widths.

- HB series:

One-piece extruded EPDM elastomeric seal bonded into a high-strength epoxy adhesive to create a watertight system. Available in 25–100 mm joint widths.

- PDA/ PDS series:

Recess mounted covers with aluminium or stainless steel capping and extruded santoprene gasket, capable of accommodating up to ± 60% of movement of the joint width. Available in 50 and 100 mm joint widths.

- PDAW/ PDSW series:

Floor to wall version of PDA/ PDS. Available in 50 and 100 mm joint widths.

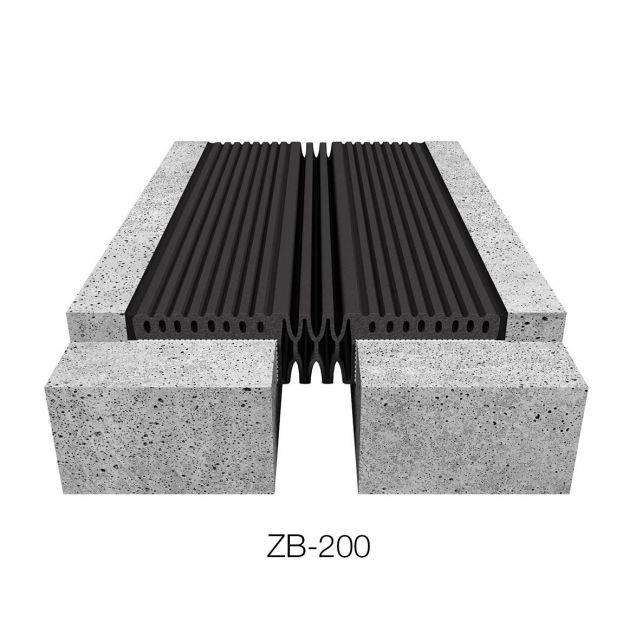

- ZB series:

One-piece EPDM compression seal with integral nosing that zips into concrete blockouts once the epoxy bed is applied. Available in 25–100 mm joint widths.

- ZBW series:

Floor to wall version of ZB. Available in 25–100 mm joint widths.
