Name: CS Allway® Exterior Gasketed Wall Joint Covers
Brand: hPGRo8w5aaTsUgpeHTwsps
SKU: vVi7gVEFHq35YKg7yeFP75

Features

Concertina and flush profiles incorporating primary and secondary seals, with concealed fasteners

Heat welded weather tight transitions and primary seals containing UV inhibitors, to prevent embrittlement and fading

Suitable for exterior applications

Material

Aluminium sections, mill finish

PVC gasket secondary gasket

Santoprene primary gasket

Product Reference

CS Allway® Exterior Gasketed Wall Joint Covers

Joint width

up to 50 mm

up to 75 mm

up to 100 mm

up to 125 mm

up to 150 mm

Type

SC-200

SC-300

SC-400

SC-500

SC-600

SF-300

SF-400

SF-500

SF-600

Gasket colour

Black

Greige

Grey

White

Standard product features

Material:

Aluminium sections, mill finish.

PVC gasket secondary gasket.

Santoprene primary gasket.

Product Options

Joint cover types:

- SC series:

Can accommodate up to 80% horizontal movement.

Includes a concertina type primary gasket

Joint width: 50 mm (SC-200), 75 mm (SC-300), 100 mm (SC-400), 125 mm (SC-500) or 150 mm (SC-600).

Exposed widths: 50 (SC-200), 75 mm (SC-300), 100 mm (SC-400), 125 mm (SC-500), 150 mm (SC-600).

Horizontal thermal movement: +50/ -20 mm (SC-200), +75/ -40 mm (SC-300), +100/ -70 mm (SC-400), +125/ -70 mm (SC-500), +150/ -90 mm (SC-600).

Lateral thermal movement: ±6 mm (all sizes).

Vertical thermal movement: ±10 mm (SC-200), ±15 mm (SC-300), ±20 mm (SC-400, SC-500, SC-600).

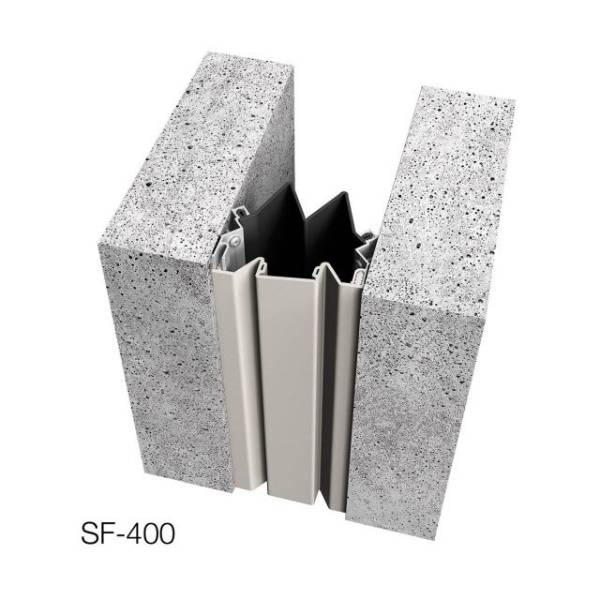

- SF series:

Includes a flush primary gasket.

Joint width: 75 mm (SF-300), 100 mm (SF-400), 125 mm (SF-500) or 150 mm (SF-600).

Exposed widths: 75 mm (SF-300), 100 mm (SF-400), 125 mm (SF-500), 150 mm (SF-600).

Horizontal thermal movement: +35/ -40 mm (SF-300), +50/ -70 mm (SF-400), +65/ -70 mm (SF-500), +75/ -90 mm (SF-600).

Lateral thermal movement: ±3 mm (all sizes).

Vertical thermal movement: ±15 mm (SF-300, SF-500, SF-600), ±20 mm (SF-400).
