CS Allway® DGTP-HD and GTP-HD Series Heavy Duty Floor Joint Covers - Dual Gasket
Compare variants

CS Allway® DGTP-HD and GTP-HD Series Heavy Duty Floor Joint Covers - Dual Gasket

Verified by manufacturer 2 months ago

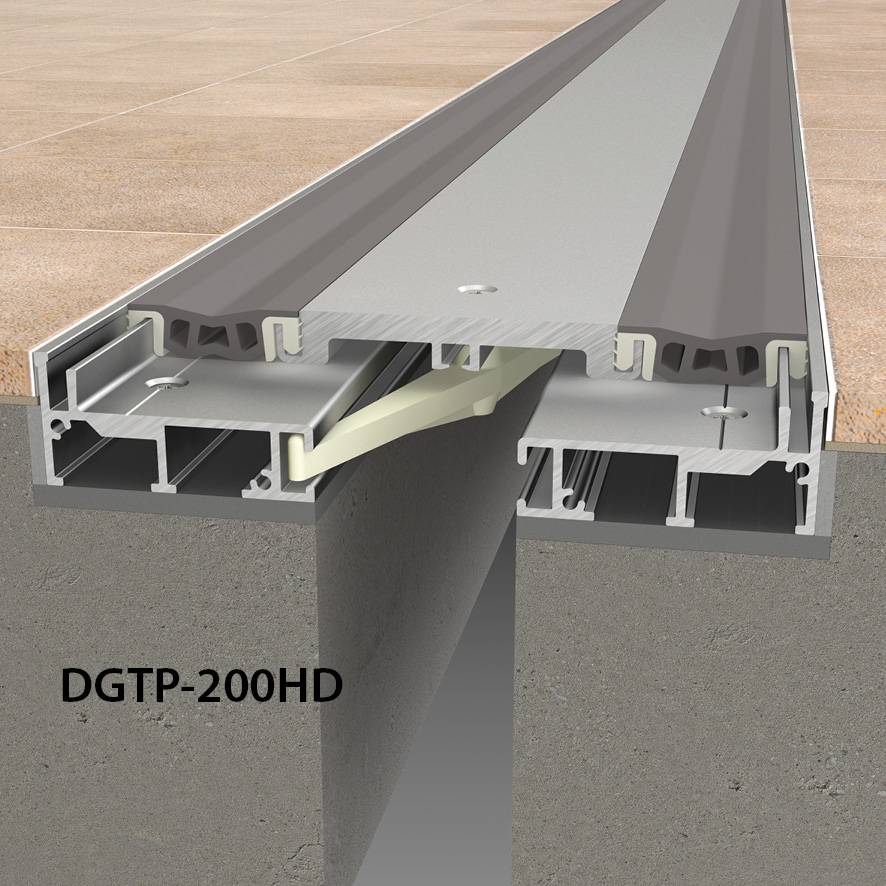

Allway® DGTP-200HD floor-to-floor covers

Construction Specialties (UK) Ltd Variant:

Heavy-duty, recess-mounted floor covers with a flush aluminium centre plate and dual heavy-duty gasket.

Jump to:
+44 (0)1296 652800 www.c-sgroup.co.uk

Application

Floor joint applications for areas where heavy rolling loads occur and larger movement range has to be accommodated.

Description

Heavy-duty floor covers with a flush aluminium centre plate and dual heavy-duty gasket. DGTP-HD models can be installed over a range of joint widths, or over uneven joint widths, whilst still maintaining the same movement capacity.


Features and benefits:

  • Joint width: up to 110 mm.
  • Horizontal movement: up to +38 mm.
  • Vertical movement: up to ±15 mm.
  • Lateral movement: up to ±8 mm.
  • Load capability: 1000 kg point load.
  • Recess mounted joint covers with dual gasket to accommodate larger movement.
  • Easy to clean, ideal for interiors where hygiene is important.
  • Suitable for areas where heavy rolling loads occur.
  • Fixing:
  • Floor fixings (by others) to suit substrate at 450 mm centres and to achieve minimum 40 mm embedment.
  • Wall fixings (by others) to suit substrate at 450 mm centres.

General information

Color

Silver

Black

Grey

White

Beige

Finish

Anodized

Centre plate and wall frames.

Mill

Floor side frames.

Material

Aluminium

Thermoplastic rubber (TPR)

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

E40/545 Compressible sealing strip system

E40/545 Compressible sealing strip system

Product range

CS Allway Gasketed Expansion Joint Covers for Floors

Specification data - Strip movement joints

Joint width

35–58 mm.

Edging

-

Material

Aluminium.

Finish

Mill finish.

Colour

Silver.

Insert

-

Material

Co-extruded thermoplastic rubber (TPR) gasket.

Colour

Black.

Grey.

Greige.

White.

FrameDepth

30 mm.

Barriers

Fire barrier.

Consult manufacturer for details and sizes, and insert requirements.

Acoustic barrier.

Consult manufacturer for details and sizes, and insert requirements.

Moisture barrier.

Consult manufacturer for details and sizes, and insert requirements.

Not required.

Movement

Horizontal: ±20 mm; vertical: ±8 mm; lateral: ±6 mm.

Dimensions of recess (w x h)

Minimum recess width/ depth required: 175/ 35 mm.

Dimensions (visible width)

Exposed surface.

165 mm.

Literature

CS Allway Expansion Joint Covers

CS Allway Expansion Joint Covers
