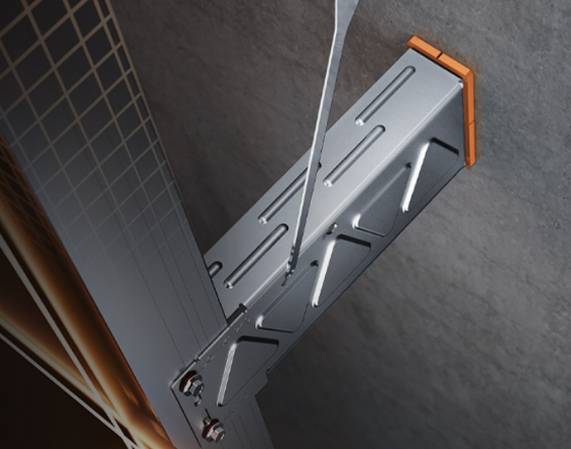

CROSSFIX® - Stainless Steel Substructure System
Verified by manufacturer today
Stainless steel substructure system for rainscreen facades offering low thermal conductivity, high load capacity, fire resistance, and corrosion protection.
Application
Suitable for use as a substructure for ventilated rainscreen facades in new builds and renovations, providing secure fastening for cladding panels while minimizing thermal bridges and ensuring structural integrity.
Description
CROSSFIX® is a stainless steel substructure system for ventilated rainscreen facades. It supports vertical and horizontal profiles, reduces thermal bridging, and ensures durability under extreme conditions.
https://www.ejot.co.uk/CROSSFIX
Features and benefits:
- Stainless steel construction for high strength and load capacity.
- Low thermal conductivity for improved U-values and energy efficiency.
- Fire-resistant with A1 classification and melting point above 1375 °C.
- Corrosion-resistant for marine and high-salt environments.
- Compatible with ETICS for renovation without insulation removal.
- Flexible design for vertical and horizontal installation.
- Reduced thermal bridge surcharge compared to aluminium systems.
- Tested for seismic resilience and dynamic load capacity.
- Certified by ETA, Passive House Institute, EPD, and LEED.
- Enables thinner wall construction and increased usable space.
- Quick installation with fewer components required.
- Sustainable with low CO₂ footprint and reduced primary energy use.
- Suitable for heavy planting systems and urban greening.
- No maintenance required due to passive protective layer.
- Optimized load distribution with power key and stress plate.
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Rectangle Other |
Width | 80 mm 100 mm 120 mm 140 mm 160 mm |
Uniclass | |
CAWS | H20/10 Sheet cladding H75/130 Stainless steel fully supported wall covering G10/20 Steel framing system G10/150 Steel framing system H20/150 Sheet cladding (attached to metal support systems) H92/795 Rainscreen panel H92/120 Rainscreen cladding |
Specification data - Stainless steel cladding support system
Classification data | |
System manufacturer | EJOT. |
System reference | CROSSFIX. |
Certification | Certified by Passive House Institute, EPD, LEED and European Technical Assessment (ETA). |
Products | Wall bracket CROSSFIX® console - 80 mm. Wall bracket CROSSFIX® console - 100 mm. Wall bracket CROSSFIX® console - 120 mm. Wall bracket CROSSFIX® console - 140 mm. Wall bracket CROSSFIX® console - 160 mm. Wall bracket CROSSFIX® console - 180 mm. Wall bracket CROSSFIX® console - 200 mm. Wall bracket CROSSFIX® console - 220 mm. Wall bracket CROSSFIX® console - 240 mm. Wall bracket CROSSFIX® console - 260 mm. Wall bracket CROSSFIX® console - 280 mm. Wall bracket CROSSFIX® console - 300 mm. Wall bracket CROSSFIX® console - 320 mm. Wall bracket CROSSFIX® console - 340 mm. Wall bracket CROSSFIX® console - 360 mm. Wall bracket CROSSFIX® console - 380 mm. Wall bracket CROSSFIX® console - 400 mm. |
Integral accessories | Stress plate. Thermal stop. Power key. Self-drilling screw VARIO. LT-,LT-XT, LT-TD-system. Facade anchors, metal anchors or chemical anchors. Anchoring with intermediate layer. Insulation support anchor. Metal sections. Manufacturer guidanceConsult manufacturer for further information. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Stainless steel |
Recyclability | Stainless steel is recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidancePost-consumer recycled content: 37%; Pre-consumer: 0%. |
Expected Life | 25 year |
