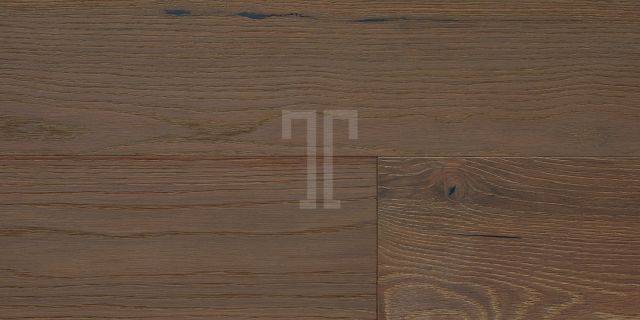

CREATE Collection - Plank

Name: CREATE Collection - Plank
Brand: nFUyhpk9Mj1GL9gj8A7nrn
SKU: rySQ8SQD3JLGsX8CaCBDdY

Ted Todd Fine Wood Floors

Engineered European oak flooring, designed to be laid in a plank format.

Jump to:

+44 (0)1925 283000 www.studiotedtodd.com

Application

Suitable for floors and walls, and for use with underfloor heating.

Description

Engineered European oak flooring, designed to be laid in a plank format.

Features and benefits:

Part of the CREATE collection; consult manufacturer's literature for other formats.

EU Timber Regulation (EUTR) compliant.

Certification: PEFC 70%.

Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for floors and walls, and for use with underfloor heating.

- Can be installed over:

Concrete (dry, flat; not suitable for Satchel).

Plywood.

Screed (dry, flat; manufacturer recommends Primerfast moisture barrier

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details.

Guarantee

20-year product warranty.

General information

Size

Thickness: 15 mm

Length: Random, up to 2.2 m

Uniclass 2015

Wood laminate strips and boards (Pr_25_71_97_93)Primary

Specification data - Wood laminate strips and boards

Product Reference

CREATE Collection - Plank

Type

Cashmere

Cortado

Fawn

Jute

Liquorice

Paperback

Sandbank

Satchel

Smoke

Stonewash

Standard product features

Size:
Thickness: 15 mm.
Length: Random, up to 2.2 m.
Technical characteristics:
Wood species: European oak.
Construction: Three ply engineered, 100% hardwood.
Edge detail: Micro bevelled.
Wear layer: 4 mm hardwood (nominal).
Finish: Hardened oil.
Surface texture: Medium brushed.
Profile: Tongue and grooved to all sides.
Tolerance: ±0.50 mm/ 95% in tolerance.
Moisture content: 8–12% fair and average.
Fire rating to EN 13501-1 (flooring): D fl - s1.
Emissions to EN 14342: E1.
Humidity requirements: Between 40% and 60% relative humidity.
Janka hardness rating: 1120 lbf (4980 N).
Formaldehyde emission: E1.
Thermal conductivity: 0.08 m²K/W (0.8 Tog).
Tonal variation: Medium natural.
Batch variation: Not advised to mix batches in one floor area.

Product Options

Type:
- Cashmere:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Low risk.
Tone: Neutral.
- Cortado:
Width: 127 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Dark.
- Fawn:
Width: 180 mm
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Dark.
- Jute:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Dark
- Liquorice:
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Mid.
- Paperback:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Light.
- Sandbank:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Mid.
- Satchel:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Dark.
- Smoke:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Grey.
- Stonewash:
Width: 180 mm.
Slip rating: Dry: Low risk; Wet: Moderate risk.
Tone: Dark.
