Coverock V mineral wool insulation - Stone Mineral Wool Slab Insulation
Verified by manufacturer 6 months ago
60 mm-thick
60 mm-thick
KIWA BDA
Certificate type
DoP
Certificate type
KIWA BDA
Certificate type
Type 3 (Healthcare) approved TMV
Certificate type
Stone mineral wool insulation slabs, faced on one of the outer sides with a black fibreglass veil, for rainscreen and through wall applications.
Application
mineral wool Insulation suitable for internal and external thermal, acoustic and fire insulation in buildings.
mineral wool insulation applications include:
- External facades insulated by light-dry method (e.g. sheet, cladding board, siding, lining cement and composite).
- External walls with elevation of stone or glass.
- Skeletal external and internal walls (on a wooden and metal structure).
- Partition walls.
- Curtain walls.
- Cavity walls.
- Suspended ceilings.
mineral wool insulation specifically tailored for the rainscreen cladding market.
Description
Coverock-V is a type of stone mineral wool insulation designed for internal and external thermal, acoustic, and fire insulation in buildings. It is a non-combustible wool mineral insulation material that provides reliable protection against heat loss, noise pollution, and fire hazards. It is specifically tailored for the rainscreen cladding market.
Features and benefits of wool mineral insulation:
- Slabs of stone mineral wool with windproof black veil facing.
- Subtle surface appearance when the insulation is visible through gaps in the cladding system.
- Veil helps to increase windproof resistance at the face, providing enhanced durability and protection against the elements.
- Classified as an A1 non-combustible material.
- Used in either a single or multiple layer system.
- Provides a high level of insulation (0.035 W/mK).
- Hydrophobic - water absorption is limited during construction works.
- Available in a wide range of material thicknesses (60–250 mm).
- Wool mineral insulation can be cut to any size without the board structure being damaged.
General information
Color | Black Bronze Yellow Other |
Finish | Other Guidance for specification option: Faces with fibreglass veil. |
Material | Mineral board Mineral fibre Mineral wool Stone wool Stonewool |
Shape | Rectangle |
Length | 1000 mm |
Width | 600 mm |
Height | 60 mm 70 mm 80 mm 90 mm 100 mm |
Warranty description | Other |
Uniclass | |
CAWS | F30/150 Full fill cavity insulation F30/155 Partial fill cavity insulation F30/10 Full fill cavity insulation F30/12 Partial fill cavity insulation K40/55 Insulation H31/50 Mineral wool thermal insulation K45/425 Insulation K40/285 Insulation H92/776 Thermal insulation K45/50 Insulation H31/271 Mineral wool thermal insulation |
SKU Code | CR_V |
Specification data - Mineral wool slab insulation
Classification data | |
Standard | To BS EN 13162. |
Third-party certification | KIWA BDA Agremént certificate. |
Thickness | 60 mm. |
Facing | Black glass veil. |
Edges | Square. |
Density | 60 kg/m³. |
Thermal conductivity (maximum) | 0.035 W/m·°K. |
Compressive strength (minimum) | CS(10)10 kPa. Manufacturer guidanceCompressive stress at 10% deformation. |
Fire performance | Reaction to fire classification of A1 (non-combustible), as defined in BS EN 13501-1. |
Thermal resistance | 1.71 m²K/W. |
Size (length x width) | 1000 x 600 mm. |
Thickness tolerance | Class T5. |
Dimensional stability | ≤1.0%. Manufacturer guidanceDimensional stability under 70o C and 90% humidity. |
Tensile strength | 7.5 kPa. Manufacturer guidanceTensile strength perpendicular to faces. |
Water absorption | Short time water absorption WS: ≤1.0 kg/m². Long time water absorption WL(P): ≤3.0 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Manufacturing plant location | |
Material | Mineral board Mineral fibre Mineral wool Stone wool Stonewool |
Recyclability | Recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
Product certifications
KIWA BDA

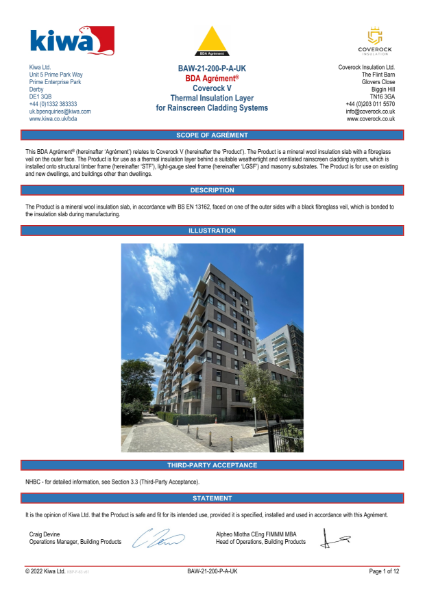

BDA Agrément® - Coverock-V Thermal Insulation Layer for Rainscreen Cladding Systems
DoP
Declaration of Performance - Coverock-V
KIWA BDA
BDA Agreement
Type 3 (Healthcare) approved TMV
CERTIFICATE No 453/2023
Literature
Literature type
Coverock-V - Technical Data Sheet
Coverock-V - Rainscreen Fixing Guide
Coverock-V - Cutting Guide
SDS - Coverock Insulation
Case studies
Coverock V insulated Rainscreen cladding at Maldron Hotel - Manchester
