Cove Former And Capping Strip (Capping Seals) For Resilient Floorcovering - Cove Former & Capping Strip
Verified by manufacturer 3 months ago
CCF1 Combined Cap And Cove
CCF1 Combined Cap And Cove
ISO 9001 Quality Management
Certificate type
Cove former and capping strip (capping seals).
Application
Suitable for use:
- With a wide range of floorcovering gauges.
- For internal and external applications.
Description

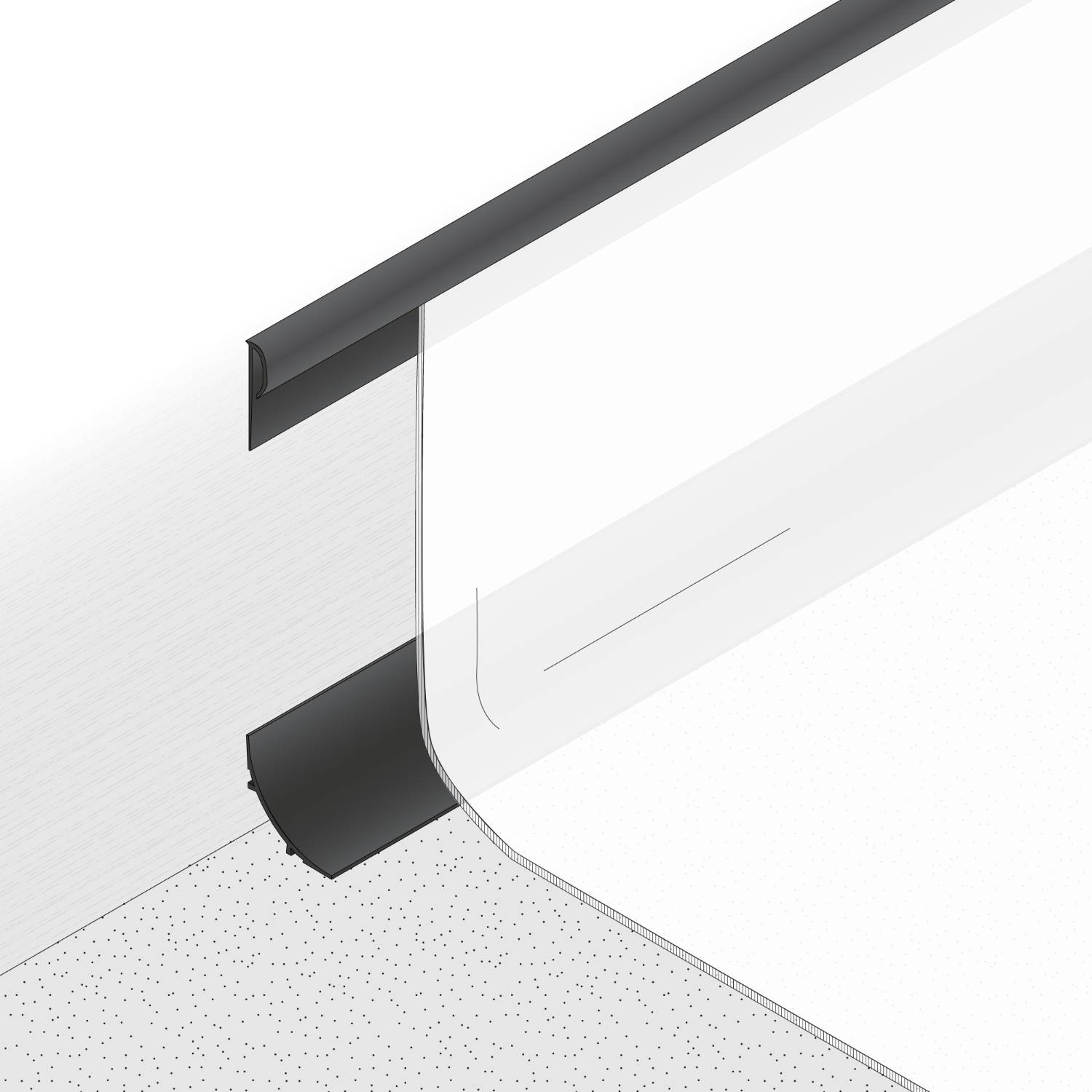

Cove formers and capping strips are used in conjunction to allow floorcoverings to be continued up the wall for a neat and clean finish.
Features and benefits:
- Cove former:
- Creates a hidden curved support for the floorcovering; installed at the junction between the wall and the floor.
- Capping strip:
- Installed where the floorcovering ends, providing a neat and sealed finish to the installation.
- Available in flexible polyvinyl chloride (PVC) and rigid unplasticized polyvinyl chloride (PVC-U).
- Available in several colours to complement floorcovering colours.
A combined cove/ capping profile is also available.
General information
Color | Black Brown Blue Beige Grey |
Finish | Matt |
Material | PVC Guidance for specification option: Polyvinyl chloride (PVC). |
Shape | Crescent |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | M40/110 Tiling to M40/5 Tiling to M50/770 Skirtings M50/80 Skirtings |
Product range |
Specification data - Polyvinyl chloride (PVC) cove skirtings
Skirting type | Cove former/ capping strip. |
Colour | Black.Dark Brown.Regency.Graphite.Charcoal.Boulder.Cloud Grey.Caramel.Platinum Grey.Ivory.White. |
Fixing | Adhesive. Guidance for specification option: Consult manufacturer for details. |
Cove former | CCF1. Guidance for specification option: 20 mm combined cove former and capping strip, 32 x 100 mm, length: 2 m, PVC. |
Third-party certification | Groundworks Green Business Certificate. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC Guidance for specification option: Polyvinyl chloride (PVC). |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
Expected Life | Ten year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
Installation Guide & Detailing Data Sheet for the Floormitre Capping Strip and Cove Former System
Quantum Flooring Product Guide 2024
Quantum PVC Skirting and Cap and Cove (for resilient flooring) Product Data Sheet
Case studies
WAREHOUSE - PROJECT TRIATHLON - STAIR NOSING AND CAP & COVE
