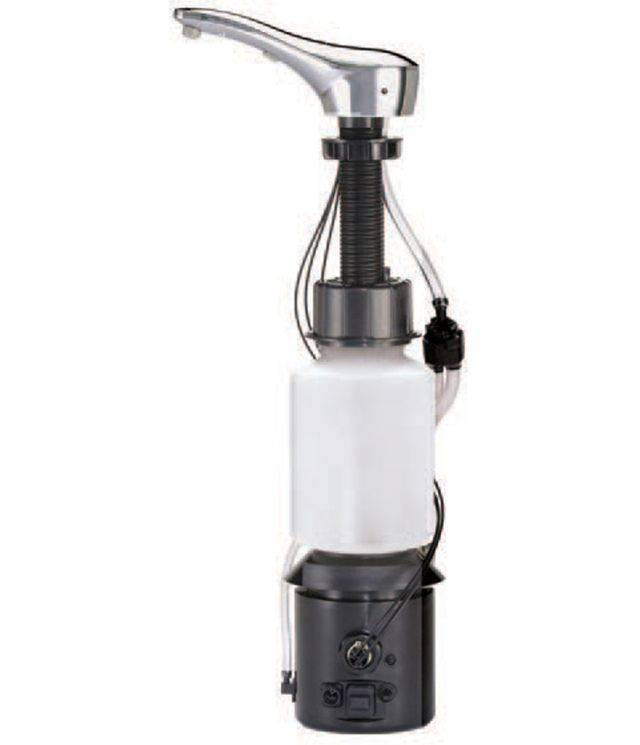

Counter Mounted SureFlo Automatic Top Fill Bulk Foam Soap Dispenser B-828

Counter mounted, automatic, top filled bulk foam soap dispenser of 5–19 ml of commercially marketed all-purpose bulk foam hand soaps.

General information

Uniclass 2015

Pr_40_70_22_81 Soap dispensersPrimary


N13/458 Soap dispensers

Specification data - Soap dispensers

Product Reference

Counter Mounted SureFlo Automatic Top Fill Bulk Foam Soap Dispenser, B-828

Standard product features


  • Spout and shank assembly: Above the counter, chrome plated ABS plastic spout. Unit equipped with a spring loaded 180° rotatable lid with concealed locking mechanism for top filling. Rotatable lid mechanism consists of metal components. Integrated to spout are a grey plastic dispense tip and activation lens housing. ABS shank connects to bottle.
  • Foam mixer cartridge: Located inside grey nozzle tip, mixer cartridge has nylon mesh ultrasonically welded on both ends and is removable for cleaning and maintenance.
  • Air pump: Diaphragm operated electronic air pump connects to the air tube adapter and supplies air to the foam mixer housing.
  • Foam mixer housing with mesh ring: ABS plastic construction connects air tube and soap tube into a mixing chamber to create a preliminary mixture of foam. Ultrasonically welded mesh on ring inside housing is removable for cleaning and maintenance.
  • Soap bottle: Translucent, shatter-resistant polyethylene. Capacity: 1.0 L.
  • Pump and soap delivery system: A plastic gear pump submerged in the bottom of the bottle, pumps the liquid foam soap through a vinyl tube to spout.
  • Bottom housing: Water resistant, ABS plastic housing attached to the bottom of the bottle houses the PC board, motor that drives the gear pump, and the gear pump housing. It includes a portion control knob, flush button to allow for system cleaning and maintenance, a connector for the fibre optic cables, and power port.
  • Electronic activation/ indication system: Pair of plastic fibre optic cables connects the plastic activation lenses to an infrared sensor located on a PC board in the bottom housing. A third plastic fibre optic cable connects an LED located on the PC board to an acrylic lens at the tip of the spout; a solid green LED indicates dispense activity and a red blinking LED indicates low battery life. All three cables are integrated into one fibre optic connector tip for ease of installation.
  • Battery pack: Water resistant, plastic material holds four alkaline 'D' cell batteries (not included).
