Fire rated ventilated facade system with hung cassettes.

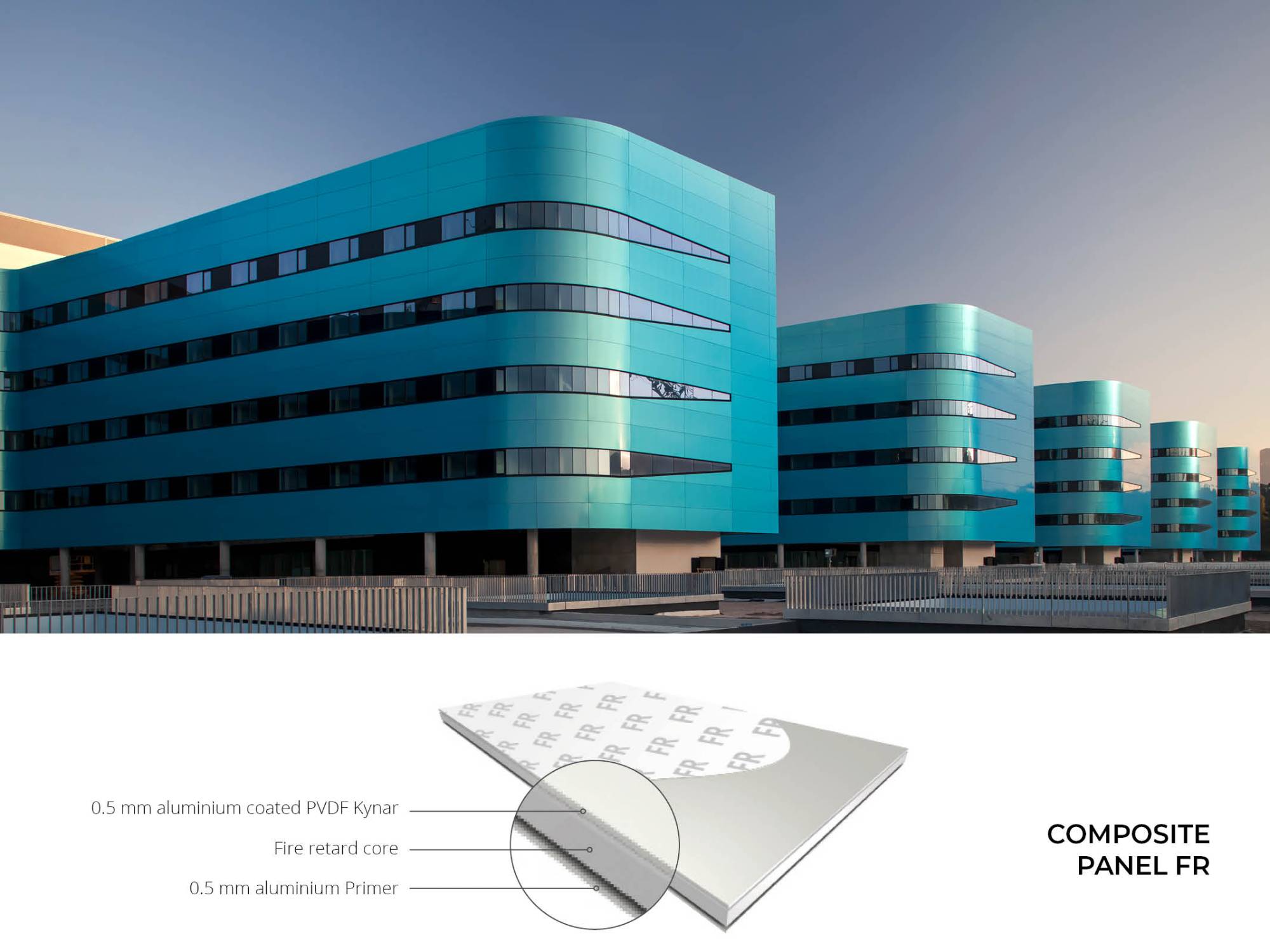

Fire rated ventilated facade kit system comprising hung cassettes of STACBOND® FR composite panels.
Features and benefits:
Substructure:
Standard hanging system composed of profiles OMEGA and spacers DOUBLE T in 6063-T5 aluminium alloy, with additional hidden stiffeners depending on the dimensions of the panels. The stiffeners are attached to the inner face of the panel with an adhesive. The facade is completed with joints for dilatation and connecting elements for heads, jambs and sills of windows by utilizing bespoke panel pieces.
Spacers are available in various lengths to house the required thickness of thermal insulation and compensate for any irregularities in the facade. Specific insulating thermal break wedges are placed between the spacers DOUBLE T and the vertical face. The spacers are anchored to the wall using special mechanical fixings and receive the profiles OMEGA as uprights.
Auxiliary elements (bracket set STB-CH hanging) are placed on the uprights to receive the cassettes. They are cut from extruded 6063-T5 aluminium alloy profiles. A special ethylene propylene diene monomer (EPDM) piece is fitted in the hanging area to avoid vibrations.
Size | As drawing Insert reference. |
Finish | Aluminium coated in the external face with a thickness of 25–40 μ. This coating comprises of two layers: An internal primer (conversion layer) of 5–10 μ and an external coating (PvdF 70/30 – 70% polyvinyl fluoride, 30% acrylic resin). The panels are supplied with a protective film with a thickness of 100 μ. The pre-processing of aluminium used in both faces is chromium-free |
Material | Aluminium sheets (exterior sheet aluminium alloy 5005 to BS EN 485-2) encapsulating a polyethylene and fire retardant mineral inner core |
Uniclass 2015 | |
CAWS | H92/120 Rainscreen cladding |
Product Reference | Cortizo STACBOND® FR System STB-CH |
Size | As drawingInsert reference. |
External colour | Insert requirement. |
Standard product features | Material: Aluminium sheets (exterior sheet aluminium alloy 5005 to BS EN 485-2) encapsulating a polyethylene and fire retardant mineral inner core. Panel thickness: 4 mm, with two 0.5 mm thick aluminium sheets either side of the core. Panel weight: 8.02 kg/m². Weighted sound reduction index: Rw (C;Ctr) = 29 dB (-1;-3). Thermal transmittance: 5.62 W/m²K. Finish: Aluminium coated in the external face with a thickness of 25–40 μ. This coating comprises of two layers: An internal primer (conversion layer) of 5–10 μ and an external coating (PvdF 70/30 – 70% polyvinyl fluoride, 30% acrylic resin). The panels are supplied with a protective film with a thickness of 100 μ. The pre-processing of aluminium used in both faces is chromium-free. |
