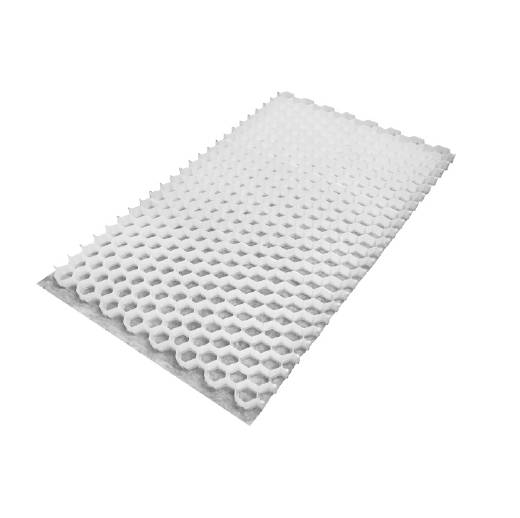

CORE Drive - Gravel Driveway Stabiliser 50-35
Application

  • Sloping driveway (up to 1 in 8),
  • car park with light to medium traffic,
  • Suitable for HGV through traffic and
  • disabled-friendly access routes.

Description

Gravel stabilizer most frequently used for driveways and private access roads expecting heavier vehicles like lorries, horse boxes and motorhomes on a regular basis, with occasional HGV through traffic. It is designed for angular aggregates up to 24 mm and is manufactured from white virgin polypropylene material, making it highly durable and flexible; ideal for stabilizing gravel on inclines. It can also be specified for use in small car parks with light to medium traffic, with a maximum gradient of 12.5% (1 in 8).

The sheets are supplied with a 50 g/m² non-woven weed membrane heat welded to the underside of the grid to improve surface durability by preventing below-surface weed growth and stopping gravel from migrating under the cell wall or into the sub base.

The sheets are flexible, bending slightly to follow the contour of the ground for quick and easy installation. Each sheet also has an interlocking mechanism on all four sides that allows all adjacent panels to be connected in every direction. This creates a continuous matrix across the entire surface, so there is no need to pin or secure individual sheets to the ground. The grid has a reinforced 10 mm wide foot at the base of the cell wall to provide additional strength to the honeycomb structure and distribute load weight more evenly.

CORE Drive can be installed as a new porous driveway surface or over existing hard surfaces such as tarmacadam, concrete or compacted gravel with minimal preparation.

Features and benefits:

  • Available in two sheet sizes.
  • Suitable for line markings.
  • Stops weed growth.
  • DDA compliant.
  • Stabilizes gravel.
  • Strong.
  • Eco-friendly.
  • SUDS compliant.
  • Low cost.
  • Easy to install.

Application:

  • Sloping driveway (up to 1 in 8),
  • car park with light to medium traffic,
  • Suitable for HGV through traffic and
  • disabled-friendly access routes.

General information
Color

White

Features

It can be used on slopes of up to a 1in8 (12.5% gradient)

Finish

Grid

Material

Virgin Polypropylene

Shape

rectangular interlocking sheet

Size

35 x 1150 x 800 mm

35 x 2400 x 1150 mm

Uniclass 2015
Pr_25_93_60_61 Plastics cellular paversPrimary
CAWS

Q25/350 Plastics pavers

Specification data - Plastics cellular pavers
Product Reference

CORE Drive - Gravel Driveway Stabiliser 50-35

Physical properties -
Material

Virgin polypropylene

PhysicalPropertiesColour

White

Top surface finish

Aggregate

Profile -
PhysicalPropertiesProfilePaverType

Angular aggregates up to 24 mm with 50 gsm non-woven weed membrane heat welded to the underside of the grid

PhysicalPropertiesProfileInterlockingFeatures

Socket & Pin (all 4 sides)

Dimensions -
Plan size

1150 x 800 mm

0.92 m².

2400 x 1150 mm

2.76 m².

Thickness (minimum)

35 mm

Cell Size

35 x 50 mm

Standard product features

Colour:

White.

Features:

Used for shared parking, access roads, used on slopes up to a 1 in 8 (12.5%)

Material:

Virgin polypropylene.

Shape:

Rectangular interlocking sheet.

Size:

35 x 1150 x 800 mm, 35 x 2400 x 1150 mm.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.1
Revit
- 2 2.1
