Conqor 47B - Waterstop Gasket

Verified by manufacturer 6 days ago

Markham Global Uk Ltd

Delayed expansion waterstop gasket for concrete joints.

Jump to:
+4403334 565758 Website

Application

Suitable use in horizontal and vertical joints for waterproofing concrete basements, pools and precast infills.

Description

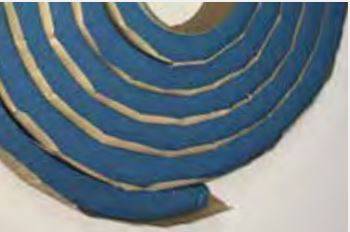

Conqor 47B waterstop is butyl hydrophilic polymer-based gasket, which has a built-in delay system that activates after approximately 5–10 days of constant exposure to water.

Conqor 47B waterstop is manufactured utilising a specialised mixing process which encapsulates hydrophilic materials into a rubber base creating a controlled, moisture-activated gasket. This gasket has the structural integrity of a rubber-based sealant; the features of a butyl sealant; as well as the ability to expand to create a self-healing joint material.

Features and benefits:

  • Allows concrete to gain full strength before expansion.
  • No compact or displacement problems.
  • Bonds to both concrete surfaces.
  • Easy to install and non-toxic.

General information

Color

Blue

Finish

Smooth

Material

Butyl

Shape

Other

Length

Bespoke

Width

25 mm

Height

19 mm

Uniclass

Pr_35_90_15_74 Rubber hydrophilic waterstopsPrimary

CAWS

E40/320 Hydrophilic waterstops

Specification data - Rubber hydrophilic waterstops

Cross section

25 x 19 mm.
9 x 19 mm.

Execution

Guidance for specification option:

CONQOR 47B waterstop gasket is installed to the positive water ingress side of any reinforcing, to ensure structural reinforcing is protected from moisture ingress long-term. Refer to product technical data sheet for details on installation.

Colour

Blue.

VOC Content (maximum)

1%.

Guidance for specification option:

ASTM D-6.

Application temperature

-22° to +52°C.

Service temperature

-34° to +82°C.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Material

Butyl

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

CONQOR 47B Tech Data

CONQOR 47B Tech Data

CONQOR 47B - Safety Data

CONQOR 47B - Safety Data
