CONPRESeal 3V BG1 - Expanding Foam Tape
Verified by manufacturer 2 days ago
An expanding foam jointing tape suitable for perimeter sealing of windows and doors. Airtight, raintight and vapour permeable.
Application
Suitable for airtight and weathertight perimeter sealing of windows and doors for wood construction, prefabricated construction masonry, framework construction and concrete construction.
Description
CONPRESeal 3V BG1 is a multi-functional tape for perimeter sealing of windows and doors. After installation, the polyurethane soft foam expands in the joint and provides durable airtight and watertight joint sealing.
Features and benefits:
- Heavy rain tightness to 1050 Pa in accordance with EN 1027.
- Airtight (corresponds to the highest European standard for joint sealant tapes DIN 18542:2009 = BG R).
- Its smart “moisture-adapting” membranes and μ-value of 7-44 ensure excellent performance for long-lasting dry connection joints, and moisture management.
- Triple-Layer Joint Sealing System – after installation, the polyurethane soft foam expands in the window or door joints and provides durable joint sealing.
- The expanding polyurethane soft foam compensates for movements of building components, such as those linked to temperature changes, even after many years.
- Breathable functional tape – diffusion open, water vapour flexible
- Excellent thermal and sound insulation.
- Allows for movement of building components.
- Very low emission — GEV EMICODE®- EC1Plus.
General information
Color | Black |
Material | Polyurethane |
Length | 14100 mm |
Width | 64 mm |
Warranty description | Ten year Manufacturer guidanceTen year function guarantee when using all of the Partel system components, according to manufacturer's instructions. |
Uniclass | |
CAWS | L20/820 Sealant joints L20/80 Sealant joints L10/75 Sealant joints L10/810 Sealant joints |
Product range |
Specification data - Resin-impregnated precompressed foam sealing strips
Third-party certification | GEV EMICODE®: EC1 Plus, very low emission. |
Fire performance | |
Fire resistance | To DIN 4102, B1. |
Materials | |
Foam | Polyurethane cellular foam, impregnated with an acrylic-based, UV-stabilized resin. |
Sizes | 64 mm x 14.1 m.Guidance for specification option: Joint width 6–15 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Polyurethane |
Expected Life | Lifetime |
Literature

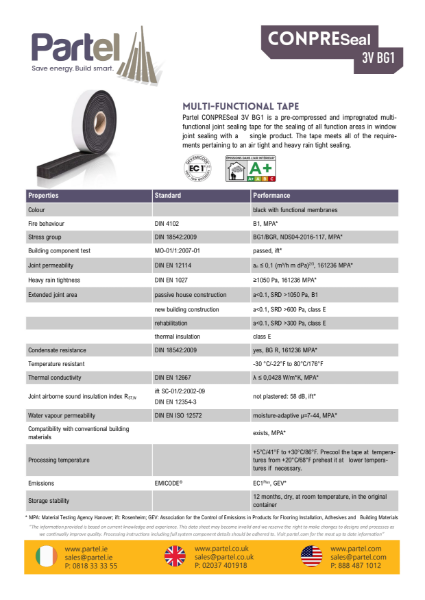

CONPRESeal 3V BG1 Technical Data Sheet
