Connect Shelter 2.0
Description

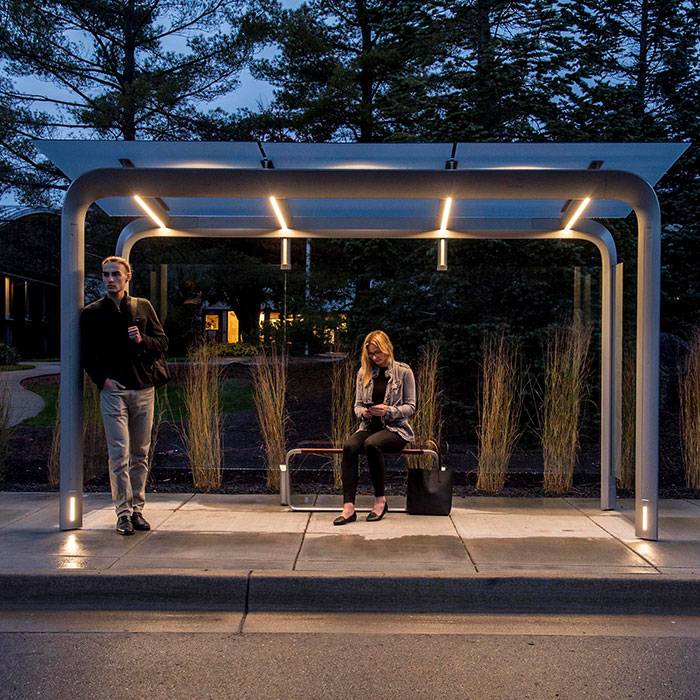

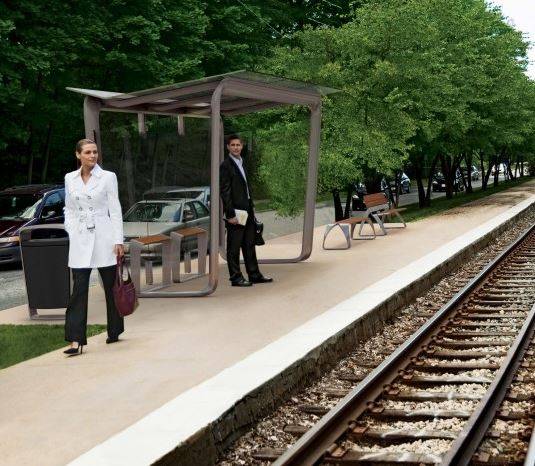

Aluminium framed shelter with integrated LED lighting through grid or solar panels.

Features and benefits:

  • Can be configured with or without glass walls.
  • Glass wall panels are tempered safety glass.
  • Shelters can be hardwired or use solar powered lighting options.
  • Available in two sizes.
  • ADA compliant.

General information

Uniclass 2015

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/320 Bus shelter

Specification data - Semi-closed shelters Enhanced data

Product Reference

Connect Shelter 2.0

Size (h x l x w)

2438.4 mm

3657.6 mm

Roof

Aluminium honeycomb panels

Solid metal.

Capped end aluminium extrusions

Louvered metal.

Tempered laminated safety glass

Tempered safety glass is heat treated so that it is four times stronger than regular glass and it does not leave sharp edges when broken.

Panel configuration

Roof only

Roof, back and side

Roof, back, side and centre front

3657.6 mm shelter only.

Roof, back, side and left front

2438.4 mm only.

Roof, back, side and right front

2438.4 mm only.

Colour/ Finish

See 'Options' below and insert requirement.

Lighting

-

Type

Down lights

Down lights run the full length of the roof rafter.

Up lights

Wayfinding lights

Connection

Hardwired

LED solar powered

Solar panels are positioned on the roof of the shelters. Roof type and size of shelter affect location and installation of solar panel. Consult manufacturer for details.

Standard product features

Fixing:

Embedded with anchors.

Lighting:

  • The lighting temperature of all lit elements is 3500k.
  • The output power will be set to comply with RP8 guidelines for roadway lighting with heavy traffic.

Product Options

Colour/ Finish:

- Powdercoated metal:

  • Black.
  • Blue bell.
  • Buttercup.
  • Cranberry.
  • Flambé orange.
  • Grass.
  • Ivy.
  • Ocean.
  • Stormcloud.
  • White.

- Metallic:

  • Bronze.
  • Mercury.
  • Silver.
  • Steel.
  • Stone.
  • Titanium.

- Designer pallette: Architectural series:

  • Blue ask.
  • Dusk.
  • Matte black.
  • Nutmeg.
  • Obsidan.
  • Onyx.

Colour/ Finish:

All metal is Panguard II polyester Powder-coated which is a hard yet flexible finish that resists rusting, chipping, peeling and fading.
