Colt Seefire Ventilator For Stairwells

Name: Colt Seefire Ventilator For Stairwells
Brand: Colt International Ltd
SKU: gw5ZpSK4Q9DmgfG7GGX4ft

Verified by manufacturer 5 months ago

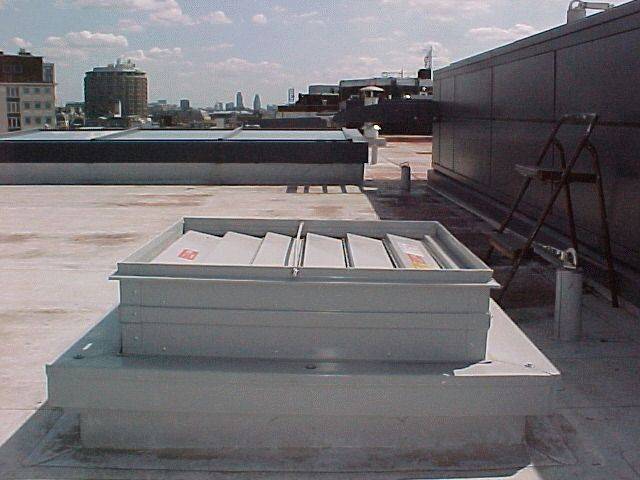

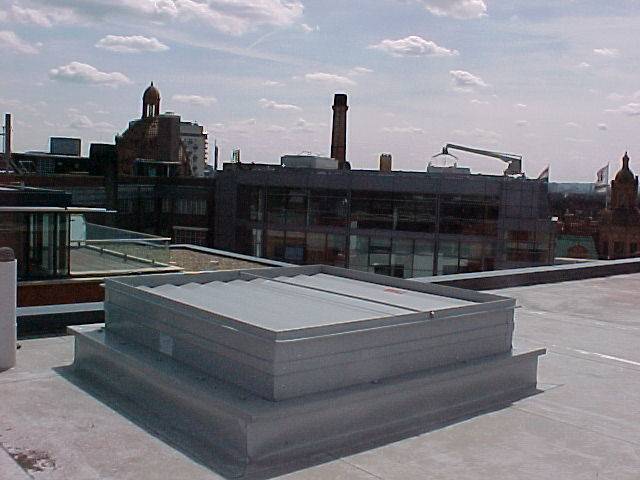

Low profile, roof- or wall-mounted louvred natural ventilator, designed to provide heat and smoke exhaust ventilation in protected stairwells and corridors.

Jump to:

+44 (0)23 9245 1111 Website

Application

Provides heat and smoke exhaust ventilation in protected stairwells and corridors within residential apartments, hotels, shops and offices.

Principally applied to protect means of escape for occupants, who would otherwise remain trapped inside the premises, and to create a safe means of access for fire fighters.

Description

Low profile, roof- or wall-mounted louvred natural ventilator, designed to provide heat and smoke exhaust ventilation in protected stairwells and corridors.

Features and benefits

Certified performance: Can be used for applications where BS 9991 and BS 9999 apply. It opens in a failsafe manner on loss of power, and has been tested and is CE marked in compliance with EN 12101-2.
Polycarbonate and glass versions allow the entry of natural daylight. There is a wide range of louvre types, accessories and finishes.
High performance: Aerodynamically efficient and has a high resistance to weather.
Easy to install: Delivered fully assembled to site and may be installed at any angle from the horizontal to the vertical. Wide range of base profiles to suit all sheeting, curb or glazing applications.
Durable: Manufactured from tough, corrosion-resistant aluminium alloy, grade 3005 in accordance with EN 573-3. Louvres pivot on double nylon UV-resistant bearings.
Manufactured under the ISO 9001 quality standard.

General information

Color	Silver Other
Finish	Mill finish Powder-coated
Material	Aluminium Glass Polycarbonate
Shape	Square Rectangle

Uniclass	Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary
CAWS	H11/140 Louvres L10/47 Roof ventilators L10/490 Roof ventilators

Product range	Natural louvred ventilators

Specification data - Natural smoke and heat exhaust ventilators

Standard	To BS EN 12101-2, BS 9991, BS 9999. Guidance for specification option: CE marked. Can be used for applications in BS 5588 Parts 1, 5 & 6.
Aerodynamic free area	1.0–1.5 m². Guidance for specification option: Aerodynamic coefficient (Cv): up to 0.68.
Reliability classification	Re 1000. Guidance for specification option: 10 000 cycles.
Snow load classification	Up to 2000 N/m².
Low ambient temperature classification	T (-25).
Wind load classification	Up to 4000 N/m².
Resistance to heat classification	B300.
Arrangement	Louvred.
Dimensions	-
Length	- Manufacturer guidance Insert requirements, six throat length options from 705 to 3498 mm. Note: There are some restrictions on the maximum size of the ventilator if glass louvres are used. Consult manufacturer for details.
Width	- Manufacturer guidance Insert requirements, six throat width options from 426 to 2336 mm. Note: There are some restrictions on the maximum size of the ventilator if glass louvres are used. Consult manufacturer for details.
Height	Manufacturer's standard.
Controls	Electric, 24 V d.c. Electric, 230 V a.c.
Initiation	Automatic device able to respond to a release signal. Automatic device activated by an electrical signal from a remote source. Automatic thermal device.
Materials	-
Ventilator	-
Frame	Corrosion-resistant aluminium alloy grade 3005. Guidance for specification option: In accordance with EN 573-3. With stainless steel fixings.
Louvres	Single skin aluminium. Single skin wired glass. Single skin laminated glass. Single skin toughened glass. Insulated double skin aluminium. Twin wall clear polycarbonate. Twin wall opaque polycarbonate. Manufacturer guidance Consult manufacturer for details based on application.
Finish	Mill finish. Guidance for specification option: Standard. Principal components polyester powder coated. Guidance for specification option: 75 µm film thickness as standard.
Colour	Silver. Guidance for specification option: Mill finish. RAL. Guidance for specification option: Insert requirements.
Integral upstands	-
Material	Corrosion-resistant aluminium alloy grade 3005.
Finish	To match ventilator. Mill finish. Guidance for specification option: Standard. Principal components polyester powder coated. Guidance for specification option: 75 µm film thickness as standard.
Colour	To match ventilator. Silver. Guidance for specification option: Mill finish. RAL. Guidance for specification option: Insert requirements.
Seals	Manufacturer's standard. Guidance for specification option: Minimizes air leakage when closed. Aluminium louvers: low-loss brush seals. Glass/ polycarbonate louvres: rubber seals.
Guards	Not required. Bird. Burglar. Insect. Security. Manufacturer guidance Factory fitted.
Accessories	None. Break glass switch. Guidance for specification option: Manual. Battery back-up unit. Guidance for specification option: Ensures that the ventilator only opens when there is a fire signal and not just on loss of power. Fireman's override switch.

Resistance to fire	E. Guidance for specification option: To EN 13501-1.
Sound insulation	Up to 11 dB Rw.
