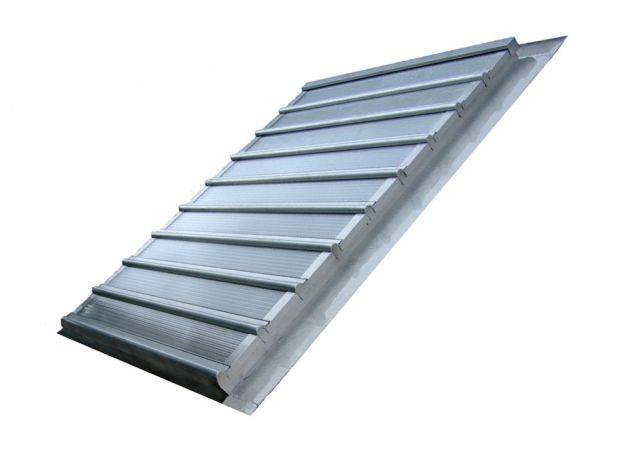

Airlite Highly Insulated Natural Louvred Ventilator

Name: Airlite Highly Insulated Natural Louvred Ventilator
Brand: Colt International Ltd
SKU: kXfDYAHCtPpbtd3TgBkZux

Verified by manufacturer 5 months ago

Colt International Ltd

Third party certifications:

Certificate of constancy of performance
Certificate type

High-performance natural louvred ventilator suitable for natural day-to-day climate control as well as smoke control.

Jump to:

+44 (0)23 9245 1111 Website

Application

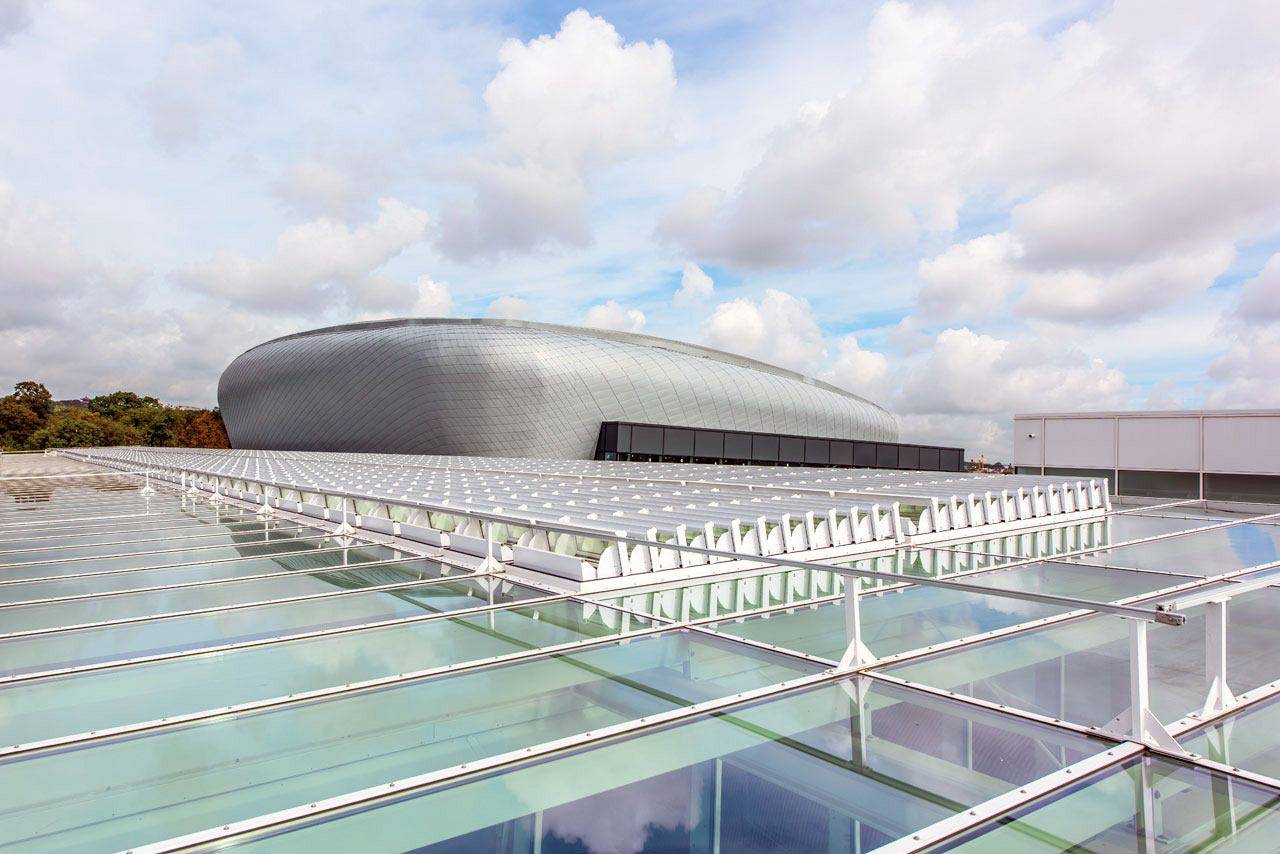

For inlet and extract ventilation as well as the entry of natural daylight for most kinds of industrial and commercial buildings.

Suitable for either facade or roof applications.

Description

High-performance natural louvred ventilator suitable for natural day-to-day climate control as well as smoke control.

Features and benefits:

Energy efficient: designed with the Energy Performance in Buildings Directive in mind, providing exceptionally high insulation and low air leakage.
High aerodynamic, thermal and acoustic performance.
Exclusive optional movable wind baffle, to overcome side wind effects.
Wide range of applications: Classed as a dual-purpose ventilator, can also be installed in the vertical either for low level air inlet or for high level extract.
Allows the entry of natural daylight through its polycarbonate blades.
Pneumatic or electric controls and a wide range of accessories and finishes.
Easy to install.
Durable: Manufactured from tough, corrosion resistant aluminium alloy, with stainless steel fixings.
Certified performance: Exhaustively tested and certified to EN 12101-2: 2003 in accredited third party test laboratories and is CE marked.
Manufactured under strict quality control to ISO 9001.

General information

Finish	Mill
Material	Aluminium Polycarbonate
Shape	Square Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary
CAWS	L10/490 Roof ventilators L10/47 Roof ventilators

Product range	Natural louvred ventilators

Specification data - Natural smoke and heat exhaust ventilators

Standard	To BS EN 12101-2.
Mounting	Roof-mounted, to suit curb. Wall-mounted, to suit curtain walling Roof-mounted, to suit glazing Roof-mounted, to suit sheeting
Reliability classification	Re 1000. Guidance for specification option: 10 000 cycles.
Snow load classification	Up to 4500 N/m².
Low ambient temperature classification	T (-25).
Wind load classification	Up to 12 500 N/m².
Resistance to heat classification	B300.
Arrangement	Louvred.
Dimensions	-
Length	- Manufacturer guidance Insert requirements, 1200–3000 mm in 1 mm increments (throat length).
Width	- Manufacturer guidance Insert requirements, 500–2000 mm in 1 mm increments (throat width).
Height	150 mm (when closed).
Controls	24 V d.c. Pneumatic, double locking. Pneumatic, failsafe open.
Materials	-
Ventilator	-
Frame	Aluminium.
Louvres	16 mm clear seven-layer multiwall (light transmitting) polycarbonate. 16 mm opaque seven-layer multiwall (light transmitting) polycarbonate. 16 mm grey seven-layer multiwall (non-light transmitting) polycarbonate.
Finish	Mill finish. Guidance for specification option: Standard. Polyester powder coating. Guidance for specification option: Insert colour requirement.
Colour	Silver. Guidance for specification option: Standard for mill finish. RAL. Guidance for specification option: Insert requirements. Polyester powder coating only.
Integral upstands	-
Material	Double skin insulated aluminium.
Finish	To match ventilator.
Colour	To match ventilator.
Seals	Double seals. Guidance for specification option: Double seals on the base and on the louvre are used to reduce air leakage when closed.
Guards	Bird. Burglar. Insect. Security. Not required.
Accessories	None. Moveable wind baffle. Guidance for specification option: Installed to overcome side wind effects. This closes when the ventilator closes and so is invisible from the outside when the ventilator is closed, thereby enhancing its appearance.

Resistance to fire	E. Guidance for specification option: To EN 13501-1.
U-value	Up to 1.02 W/m²K.
Air permeability	Manufacturer's standard. Guidance for specification option: Air permeability for a medium size unit of 11.7 m³/h·m² at 50 Pa has been achieved on test.
Sound insulation	Up to 30 dB Rw.

Third party certifications

Certificate of constancy of performance

Certificate of constancy of performance - Airlite
