Wall cladding installed onto a range of substrates including metal or wooden studs, wooden frame or wooden slats attached directly to the wall.

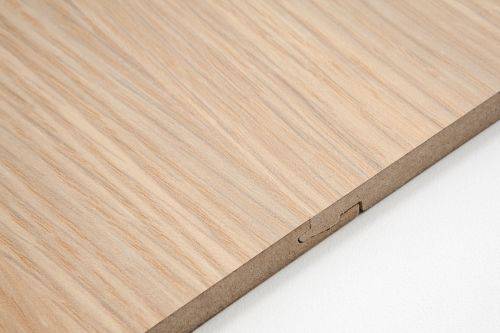

Wall-cladding system composed of PEFC MDF 10 mm thick core, finished with a resistant melamine top layer and a resistant melamine counter layer. Each panel has a tongue on one long side and a groove on the other long side so they can be clicked together. The short top and bottom sides have a smooth square edged finish. The UNILIN patented Uniclic system ensures a seamless connection.

Features and benefits:

Fast assembly with click system (up to five times faster than traditional wall-cladding systems such as plasterboard).

  • Virtually seamless.
  • Splash proof.
  • UV resistant.
  • Scratch-resistant.
  • Easy to clean.
  • Immediately finished.

ClicWall® FR:

Complies with the European fire-rated standard B-sd, d0. The MDF core is red in colour and cannot be visually distinguished from the standard ClicWall® collection.

- Fire resistant composition:

  • EI60 (RF60) for non-load-bearing dividing wall.
  • Baseboard: Anti-flame 12 mm.
  • Mineral wool insulation 40 mm (35 kg/m).
  • Substructure: Metal stud 50 mm.
  • Sealing: PE50 tape.


Wall cladding installed onto a range of substrates including metal or wooden studs, wooden frame or wooden slats attached directly to the wall.

General information

Uniclass 2015

Pr_25_71_97_22 Decorative laminated plastics sheet veneered panelsPrimary


K13/140 Proprietary laminated plastics-veneered panel lining

K13/145 Proprietary plastics cladding

K13/160 Proprietary

Specification data - Decorative laminated plastics sheet veneered panels

Product Reference


ClicWall® FR

Fire resistant board EI 60 (RF 60).

Colour/ Finish

F976 BST Granulo

H387 BST Marne oak

H339 BST Solara oak

0025 CST Soft white

0551 CST Jasmina

CST Silicon

F939 CST Brushed metal

0025 W03 Soft white linewood

U115 W03 Otter linewood

H689 W03 Amazonia linewood

MAT Deco (lacquer foil)


Not required

Aluminium external corner profile, 2785 mm

Flexible insulation tape PE/50 closed-cell polyethylene (PE)

Flexible internal and external corner profile, 2750 x 42 x 3 mm

Mitre joint, 45° angle

Paintable skirting board, 2400 x 160 x 16 mm

To be cut to desired height.

Skirting board, 2400 x 80 x 12 mm

Standard product features

Size (h x w x t):

  • 2785 x 600 x 10 mm.
  • Dependent on a minimum order, alternative sizes can be provided with a maximum height of 3050 mm and a maximum width of 1000 mm.


14 kg.

Acoustic rating:

52 dB Rw (C-4; Ctr-11).

Bending strength to BS EN 310:

- Strength:

22 N/mm².

- Stiffness:

2500 N/mm².

Tensile strength to BS EN 319:

0.6 N/mm².

Formaldehyde content to BS EN 120:

(E1) ≤ 8 mg/ 100g dry.

Water vapour permeability to BS EN 13986:

µ 12 (wet) / 20 (dry).

Airborne sound insulation to BS EN 13986:

R= 13*lg(ma)+14 dB.

Sound absorption (coefficient) to BS EN 13986:

0.10 (250–500 Hz)/ 0.20 (1000–2000 Hz).

Thermal conductivity to BS EN 13986:

λ 0.10.

Biological durability (use class) to BS EN 335-3:

Class 1.

Pentachlorophenol (PCP) content to BS EN 13986:

< 5 (ppm).

Product Options

Colour/ Finish:

  • Ten stock colours. BST: Top mat. CST: Softpearl. W03: Structured linewood.
  • 76 colours on demand (minimum quantity: 160 panels).
  • Match with Formica Unilin Collection (except F976 Granulo).
  • ClicWall® Deco: Finish wall panels entirely to choice.

Consult manufacturer for details and insert requirements.

Soft White (0025 CST), Soft White Linewood (0025 W03) and Silicon (0625 CST) are also available as Fire Retardant (FR) from stock. All other decors are also available as Fire Retardant (FR) to order.
