ClassicAL Communal Single Leaf Aluminium Door

Verified by manufacturer 4 months ago

ClassicAL - Style K

Bradbury Group Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

Inward or outward opening fully glazed aluminium communal entrance doors with security rating.

Jump to:
BOS
 +44 1724 275720 Website

Application

Suited to all communal entrance applications.

Description

Communal entrance doors and panels are constructed from reinforced aluminium, combining strength with a contemporary appearance.


Features and benefits:

  • LPCB certified to LPS 2081 SRB.
  • Secured by Design ‘Police Preferred Specification’.
  • Ten year anti-rust warranty.
  • Five year fabrication and one year manufacturer’s warranties.
  • Polyester powder coated in a selection of colours and finishes.
  • High quality wood grain effect available.
  • 13 design configurations available with solid and/ or glazed infill.
  • Constructed from aluminium.

General information

Color

Blue

Grey

Black

White

Red

Show more

Manufacturer guidance

wood grain option also available

Finish

Powder-coated

Guidance for specification option:

Polyester powder coated.

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

One year manufacturer’s warranty on hardware.

Two year

Guidance for specification option:

Two year fabrication warranty.

Ten year

Guidance for specification option:

Ten year anti-rust warranty.


Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Aluminium doorsets

Configuration

Single leaf, single action.

Doorset size

Guidance for specification option:

Insert requirements:

  • Width: 900 mm (minimum); 1200 (maximum).
  • Height: 900 mm (minimum); 2200 (maximum).

Performance

-

Intruder resistance

-

Minimum requirement

Secured by Design certification.
LPCB certified to LPS 2081 SRB.

Conformity

Certification by accredited third-party certification body.

Frame

-

Material

Aluminium.

Threshold

Aluminium.

Finish

-

Coating

Polyester powder coated.

Guidance for specification option:

Standard finish.

Texture

Textured finish.

Colour

RAL 5003, Sapphire blue.

RAL 7012, Basalt grey.

RAL 7037, Dusty grey.

RAL 9005, Jet black.

RAL 9010, Pure white.

RAL 9016, Traffic white

BS 04 D 45, Dark cherry.

BS 04 E 53, Poppy red.

BS 08 B 29, Bitter chocolate.

BS 14 C 39, Holly green.

BS 20 E 51, Cornflower blue.

Door leaf

-

Thickness

50 mm.

Panel details

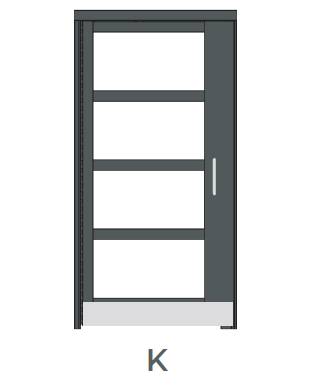

Glazed infill, Style K.

Guidance for specification option:

Fully glassed.

Material

Aluminium.

Glazing

-

Type

Polycarbonate, 6.8 mm.

Polycarbonate, 9.5 mm.

Laminate, 6.8 mm.

Laminate, 9.5 mm.

Etched, 6.8 mm.

Diffuser glass laminate, 6.8 mm.

Double glazed unit, 24 mm.

Stainless steel solid infill, 10 mm.

Stainless steel solid infill, 24 mm.

Finish

-

Coating

Polyester powder coated.

Guidance for specification option:

Standard finish.

External colour

RAL 5003, Sapphire blue.

RAL 7012, Basalt grey.

RAL 7037, Dusty grey.

RAL 9005, Jet black.

RAL 9010, Pure white.

RAL 9016, Traffic white

BS 04 D 45, Dark cherry.

BS 04 E 53, Poppy red.

BS 08 B 29, Bitter chocolate.

BS 14 C 39, Holly green.

BS 20 E 51, Cornflower blue.

Internal colour

As External.

RAL 5003, Sapphire blue.

RAL 7012, Basalt grey.

RAL 7037, Dusty grey.

RAL 9005, Jet black.

RAL 9010, Pure white.

RAL 9016, Traffic white

BS 04 D 45, Dark cherry.

BS 04 E 53, Poppy red.

BS 08 B 29, Bitter chocolate.

BS 14 C 39, Holly green.

BS 20 E 51, Cornflower blue.

Door accessories

Not required.

Door stop, wall mounted.

Door stop, floor mounted.

Hardware

EM00R Maglocks upper and lower.

Union JL2C21R sashlock.

Guidance for specification option:

Insert requirements:

  • Hoppe lever handle: Inside, outside or both sides.
  • Cylinder type: (Euro Cylinder or Euro Cylinder and Turn) single or double .
  • Escutcheon options: Self-adhesive; Z904.4E screw on; Z907.1 cylinder pull; Z907.1 cylinder pull and self-adhesive; Z907.1 cylinder pull and Z904.4E screw on.

Union JL2C22R deadlock.

Guidance for specification option:

Insert requirements:

  • Cylinder type: (Euro Cylinder or Euro Cylinder and Turn) single or double .
  • Escutcheon options: Self-adhesive; Z904.4E screw on; Z907.1 cylinder pull; Z907.1 cylinder pull and self-adhesive; Z907.1 cylinder pull and Z904.4E screw on.

Union nightlatch.

Guidance for specification option:

Insert requirements:

  • Hoppe lever handle: Inside, outside or both sides.

Benton deadlock central.

Guidance for specification option:

Insert requirements:

  • Main lock = maglocks only.
  • Cylinder type: (Euro Cylinder or Euro Cylinder and Turn) single or double .
  • Escutcheon options: Self-adhesive; Z904.4E screw on; Z907.1 cylinder pull; Z907.1 cylinder pull and self-adhesive; Z907.1 cylinder pull and Z904.4E screw on.

Upper union deadlock.

Guidance for specification option:

Insert requirements:

  • Not available with maglocks.
  • Cylinder type: (Euro Cylinder or Euro Cylinder and Turn) single or double .
  • Escutcheon options: Self-adhesive; Z904.4E screw on; Z907.1 cylinder pull; Z907.1 cylinder pull and self-adhesive; Z907.1 cylinder pull and Z904.4E screw on.

Lower union deadlock.

Guidance for specification option:

Insert requirements:

  • Not available with maglocks.
  • Cylinder type: (Euro Cylinder or Euro Cylinder and Turn) single or double .
  • Escutcheon options: Self-adhesive; Z904.4E screw on; Z907.1 cylinder pull; Z907.1 cylinder pull and self-adhesive; Z907.1 cylinder pull and Z904.4E screw on.

Trimec electric release.

Guidance for specification option:

Main lock Union Nightlatch only.

Accessories

Not required.

Flat trim, 25 mm.

Flat trim, 50 mm.

Steel box packer.

Access control unit.

Fob reader.

Fire access switch.

Manufacturer guidance

Consult manufacturer for details.

Opening

Inward.

Outward.

Handling

Left hand.

Right hand.

Handles

Pull handles, 450 mm bolt through straight.

Pull handles, bolt through cranked.

Pull handles, 450 mm bolt through back to back straight.

Pull handles, 450 mm bolt through back to back cranked.

Push plates, 500 mm.

Integral accessories

Dorma RTS87 Closer.
Kick plates.

Sustainability data

Country of material origin

-

Manufacturer guidance

Europe, United Kingdom and China

Country of product manufacture

United Kingdom

Recyclability

Can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

BRE Certificate

BRE Certificate

ClassicAL LPCB LPS 2081 SRB

Literature

ClassicAL Communal Entrance Door Product Specification

ClassicAL Communal Entrance Door Product Specification

ClassicAL Communal Entrance Door Specification

ClassicAL Communal Entrance Door Specification

Newton Doors Communal Entrance Doorsets Company Brochure

Newton Doors Communal Entrance Doorsets Company Brochure

Case studies

Renovating communal buildings with Newton Doors

Renovating communal buildings with Newton Doors

Installing Intelligent entry doorsets for communal housing project

Installing Intelligent entry doorsets for communal housing project
