Summary
Inward or outward opening fully glazed aluminium communal entrance doors with security rating.
-
-
Application
Suited to all communal entrance applications.
-
-
Description
Communal entrance doors and panels are constructed from reinforced aluminium, combining strength with a contemporary appearance.
Features and benefits:
- LPCB certified to LPS 2081 SRB.
- Secured by Design ‘Police Preferred Specification’.
- Ten year anti-rust warranty.
- Five year fabrication and one year manufacturer’s warranties.
- Polyester powder coated in a selection of colours and finishes.
- High quality wood grain effect available.
- 13 design configurations available with solid and/ or glazed infill.
- Constructed from aluminium.
-
-
Product certifications
-
-
Digital objects
-
-
Color
Blue, Grey, Black, White, Red, Brown, Green, Other
-
-
Finish
Powder-coated
-
-
Material
Aluminium
-
-
Shape
Rectangle
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
One year, Two year, Ten year
-
-
Specification
Configuration
Single leaf, single action.
-
-
Doorset size
-
-
-
Performance
-
-
-
Intruder resistance
-
-
-
Minimum requirement
Secured by Design certification.
LPCB certified to LPS 2081 SRB.
-
-
Conformity
Certification by accredited third-party certification body.
-
-
Frame
-
-
-
Material
Aluminium.
-
-
Threshold
Aluminium.
-
-
Finish
-
-
-
Coating
Polyester powder coated.
-
-
Texture
Textured finish.
-
-
Colour
RAL 5003, Sapphire blue., RAL 7012, Basalt grey., RAL 7037, Dusty grey., RAL 9005, Jet black., RAL 9010, Pure white., RAL 9016, Traffic white, BS 04 D 45, Dark cherry., BS 04 E 53, Poppy red., BS 08 B 29, Bitter chocolate., BS 14 C 39, Holly green., BS 20 E 51, Cornflower blue.
-
-
Door leaf
-
-
-
Thickness
50 mm.
-
-
Panel details

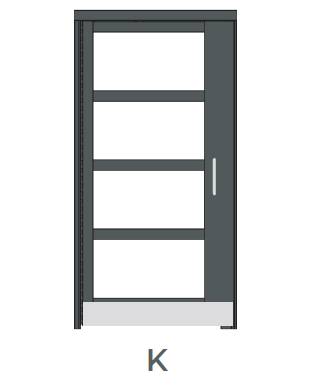

Glazed infill, Style K.
-
-
Material
Aluminium.
-
-
Glazing
-
-
-
Type
Polycarbonate, 6.8 mm., Polycarbonate, 9.5 mm., Laminate, 6.8 mm., Laminate, 9.5 mm., Etched, 6.8 mm., Diffuser glass laminate, 6.8 mm., Double glazed unit, 24 mm., Stainless steel solid infill, 10 mm., Stainless steel solid infill, 24 mm.
-
-
Finish
-
-
-
Coating
Polyester powder coated.
-
-
External colour
RAL 5003, Sapphire blue., RAL 7012, Basalt grey., RAL 7037, Dusty grey., RAL 9005, Jet black., RAL 9010, Pure white., RAL 9016, Traffic white, BS 04 D 45, Dark cherry., BS 04 E 53, Poppy red., BS 08 B 29, Bitter chocolate., BS 14 C 39, Holly green., BS 20 E 51, Cornflower blue.
-
-
Internal colour
As External., RAL 5003, Sapphire blue., RAL 7012, Basalt grey., RAL 7037, Dusty grey., RAL 9005, Jet black., RAL 9010, Pure white., RAL 9016, Traffic white, BS 04 D 45, Dark cherry., BS 04 E 53, Poppy red., BS 08 B 29, Bitter chocolate., BS 14 C 39, Holly green., BS 20 E 51, Cornflower blue.
-
-
Door accessories
Not required., Door stop, wall mounted., Door stop, floor mounted.
-
-
Hardware
EM00R Maglocks upper and lower., Union JL2C21R sashlock., Union JL2C22R deadlock., Union nightlatch., Benton deadlock central., Upper union deadlock., Lower union deadlock., Trimec electric release.
-
-
Accessories
Not required., Flat trim, 25 mm., Flat trim, 50 mm., Steel box packer., Access control unit., Fob reader., Fire access switch.
-
-
Additional properties
Opening
Inward., Outward.
-
-
Handling
Left hand., Right hand.
-
-
Handles
Pull handles, 450 mm bolt through straight., Pull handles, bolt through cranked., Pull handles, 450 mm bolt through back to back straight., Pull handles, 450 mm bolt through back to back cranked., Push plates, 500 mm.
-
-
Integral accessories
Dorma RTS87 Closer.
Kick plates.
Kick plates.
-
-
Sustainability data
Country of product manufacture
United Kingdom
-
-
Recyclability
Can be recycled
-
-
Recycled content
75 %
-
-
