Application

Suitable for high traffic washrooms, including restaurants, schools, nightclubs, bars, airports, service stations, hotels, offices, hospitals, gyms, cinemas and shopping centres.

Description

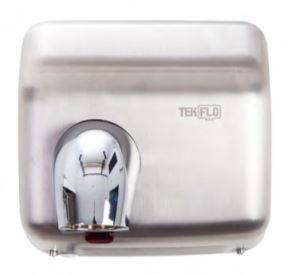

Classic stainless steel hand drier with modern performance. It dries hands in 12 seconds and operates at a quiet 72 dB.

Features and benefits:

  • Classic aesthetics.
  • Heavy-duty stainless steel casing provides protection against corrosion and vandalism.
  • Automatic 'no touch' operation makes this a hygienic choice.
  • The powerful 2300 W motor, wide-mouthed nozzle and sturdy heating element provides a wide tunnel of fast-moving warm air to dry hands in just 12 seconds.
  • Auto cut-off prevents unnecessary energy waste.
  • Powerful but quiet compared with other driers in its class at 70 dB.
  • Rotating nozzle can be manoeuvred 360º allowing users to dry hands and face.
  • Easy to install and maintain.
  • Finishes available in brushed metal, polished chrome and arctic white.

Application:

Suitable for high traffic washrooms, including restaurants, schools, nightclubs, bars, airports, service stations, hotels, offices, hospitals, gyms, cinemas and shopping centres.

General information
Color

Brushed Metal, Chrome, White

Features

Automatic operation, Vandal proof hardware, 12 seconds drying time, 70db noise output, Easy installation

Finish

Brushed Metal, Chrome, White

Material

304 Stainless Steel

Shape

Rectangular with rotating nozzle

Size

267mm W x 235mm H x 210mm D

WarrantyDescription

2 years

Uniclass 2015
Hand dryers (Pr_40_70_62_37)Primary
Specification data - Hand dryers
Product Reference

Classic Hand Dryer

Standards

CE, RoHs

Form

Hands-under

Operation

Infrared automatic ‘no touch’

Timer

60 seconds auto cut off

Electrical supply -
Power rating

2300 W

Rated operational voltage

220–240 V AC

Frequency

50/ 60 Hz

Body -
Finish

Arctic white

Brushed metal

Polished chrome

Ingress protection minimum

IPX1

Noise level at 1 m maximum

70 dB

Installation

Wall mounted

Drying time

12 seconds

Air speed

30 m/s

Thermal protection

Cut off above 70°C

Net weight

5 kg

Standard product features

Colour:

Dependent on finish.

Features:

Automatic operation, vandal proof hardware, 12 seconds drying time, 70 dB noise output, easy installation.

Finish:

Three finishes available.

Material:

Stainless steel, grade 1.4301 (304).

Shape:

Rectangular with rotating nozzle.

Size:

267 x 235 x 210 mm (w x h x d).

Warranty description:

Two years.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
