Description

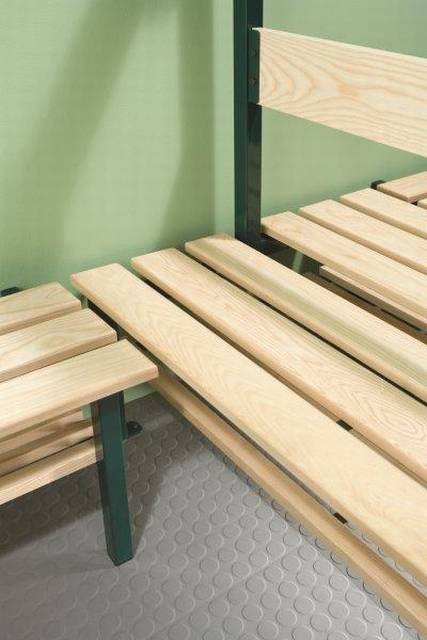

Changing and cloakroom benches with integral shoe trays and backrests.

General information
Uniclass 2015
Linked seats (Pr_40_50_12_47)Primary
Specification data - Linked seats
Product Reference

Changing and Cloakroom Benches and fittings

Type

AS (550)

ASbr (750)

W/CS (400)

Wellington

WLS (300)

WLS (400)

WS (300)

WS (400)

WS/C (300)

WS/C (400)

WS/FS (300)

WS/FS (400)

WS/H0 (500)

Height

Infant

Junior

Senior

Length

___ m

As drawing ___

Colour -
Frame

Beige, RAL 1015

Black, RAL 9005

Blue, RAL 5010

Brown, RAL 8017

Green, RAL 6005

Grey, RAL 7035

Red, RAL 3000

White, RAL 9010

Yellow, RAL 1018

Seats/ Backrests

Icy blue

Icy blue speckled

Pastel grey

Pastel grey speckled

Sand

Sand speckled

Silver grey

Silver grey speckled

White

White speckled

Formica, ___

Polyrey, ___

Trespa, ___

As drawing ___

As schedule ___

Other requirements

None

Adjustable feet

Adjustable beehive foot standard for units.

Ducted shoe tray

Allows heating pipes or coils to run behind shoe trays.

Heating pipe guards

Removable, hot-dip nylon coated steel mesh guards to protect small children from heating pipes.

Omit backrests

Omit shoe trays

Pigeon hole shoe storage

Makes defined separate shoe storage.

Secret fixing feet

Standard product features

Frame finish:

Hot-dip nylon coated.

Seats/ Backrests:

Manufactured from prime American White Ash and finished with two coats of high performance water based lacquer, except for wet area (WS/H20) units which are manufactured from 20 mm thick solid grade laminate.

Product Options

Type:

– AS (550):

  • Free-standing bench.
  • Depth: 550 mm.

– ASbr (750):

  • Double sided, free-standing bench with central backrest.
  • Depth: 750 mm.

– Wellington:

  • Wall mounted bench with backrest.
  • Depth: 450 mm.

– WS/H20 (500):

  • Wall / floor fixed- bench.
  • Wet area specification: Zinc pre-treated steel with hot dip nylon coating, solid laminate seats, backrests and peg rails, 'beehive' concealed feet with integral height adjusters.
  • Depth: 500 mm.

– WS (300):

  • Wall / floor fixed bench with front legs.
  • Depth: 300 mm.

– WS (400):

  • Wall / floor fixed bench with front legs.
  • Depth: 400 mm.

– WS/FS (300):

  • Free-standing bench.
  • Depth: 300 mm.

– WS/FS (400):

  • Free standing bench,
  • Depth: 400 mm.

– WS/C (300):

  • Wall mounted bench.
  • Depth: 300 mm.

– WS/C (400):

  • Wall mounted bench.
  • Depth: 400 mm.

– W/CS (400):

  • Free-standing bench with pedestal legs.
  • Depth: 400 mm.

– WLS (300):

  • Wall / floor fixed bench to accept locker.
  • Depth: Locker depth plus 300 mm.

– WLS (400):

  • Wall / floor fixed bench to accept locker.
  • Depth: Lock depth plus 400 mm.

Height:

– Infant:

  • Shoe rack: 150 mm above floor level.
  • Seat: 250 mm above floor level.

– Junior:

  • Shoe rack: 200 mm above floor level.
  • Seat: 400 mm above floor level.

– Senior:

  • Shoe rack: 250 mm above floor level.
  • Seat: 450 mm above floor level.

Colour:

- Seats/ Backrests: (Cost option)

Ten standard laminate colours are available. The full ranges of colours from Trespa, Formica and Polyrey are available on request.
