Cetus Safe - Door Single

Cetus Safe - Door Single

Troax (UK) Ltd

Heavy Duty Modular steel mesh doors for use with UX 550 mesh panels to build secure storage cages and enclosures, available in powder coated and hot-dip galvanised finishes.

Jump to:
+44 (0)1793 542000 www.troax.com/gb
Description

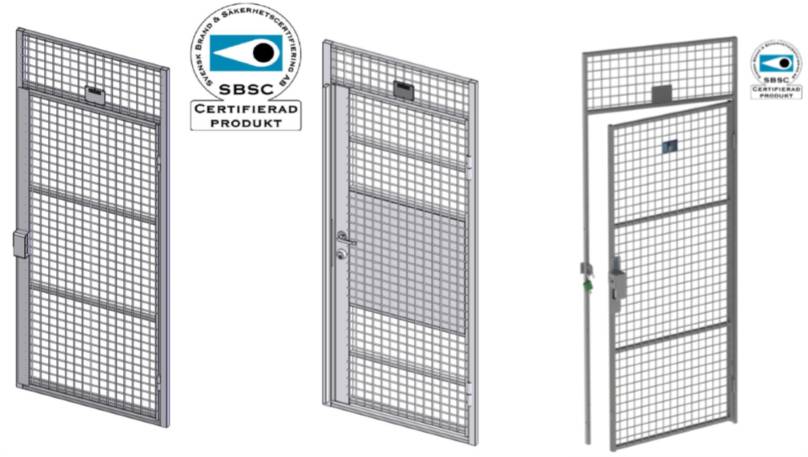

Single Doors UX 550 and UX 500 - The Troax Safe doors are designed to be used with UX 550 mesh panel system and are suitable for storage areas in need of highest level of protection. There are two specially adapted installation methods with the UX 500 giving a cost saving. The System is used in areas which are particularly susceptible to break-in attempts. The door leaves have 30x20mm steel tube frame and two horizontal tubes to create strength and stability. The 50x50 mesh aperture also takes it virtually impossible for a hand to reach through the mesh. Doors are supplied preassembled ready for installation. With options of padlockable, Euro and ASSA cylinder.

General information
Finish

Powder coated and Hot-Dip Galvanised

Material

Carbon steel

Shape

Rectangular

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015
Pr_30_59_24_52 Metal doorsetsPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
