Description

A modular mesh panel partitioning system designed for secure storage in residential applications. Panels are bolted to the floor and can be multi-tiered, with a facility for fixing to the ceiling or roof structure if required. The system is fully demountable.

General information
Finish

Powder coated and Hot-Dip Galvanised

Material

Carbon steel

Shape

Rectangular

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015
Partition panels (Pr_25_71_57_60)Primary
Specification data - Partition panels
Product Reference

Cetus UR 350 storage system

Cetus UX 450 storage system

Cetus UX 550 storage system

Partition height

2200 mm

Framing

Steel tubular framing with steel mullion post for free standing or fixing to structure as required

Corners

Formed with corner brackets

Doorsets -
Type

Mesh

UR SP

Type P

Doors

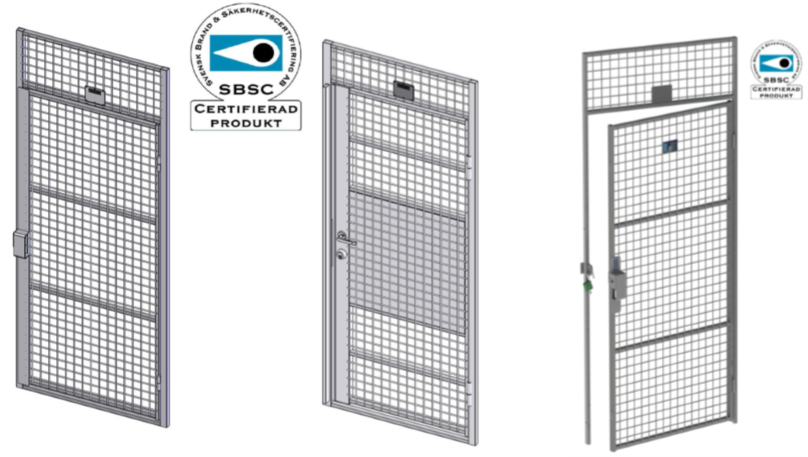

Door UR 350 P 750 R

Opening height 1860 mm.

Door UR 350 P 750 L

Opening height 1860 mm.

Door UR 350 P 900 R

Opening height 2000 mm.

Door UR 350 P 900 L

Opening height 2000 mm.

Door UR 350 EC 750 R

Opening height 1860 mm.

Door UR 350 EC 750 L

Opening height 1860 mm.

Door UR 350 EC 900 R

Opening height 2000 mm.

Door UR 350 EC 900 L

Opening height 2000 mm.

Door UX 450 P 750 R

Opening height 1860 mm.

Door UX 450 P 750 L

Opening height 1860 mm.

Door UX 450 P 900 R

Opening height 2000 mm.

Door UX 450 P 900 L

Opening height 2000 mm.

Door UX 450 EC 900 R

Opening height 2000 mm.

Door UX 450 EC 900 L

Opening height 2000 mm.

Door UX 450 AC 900 R

Opening height 2000 mm.

Door UX 450 AC 900 L

Opening height 2000 mm.

Door UX 550 P 900 R

Opening height 1860 mm.

Door UX 550 P 900 L

Opening height 1860 mm.

Door UX 550 EC 900 R

Opening height 1970 mm.

Door UX 550 EC 900 L

Opening height 1970 mm.

Door UX 550 AC 900 R

Opening height 1970 mm.

Door UX 550 AC 900 L

Opening height 1970 mm.

Door UP SP P 900 R

Opening height 2000 mm.

Door UP SP P 900 L

Opening height 2000 mm.

Door P 850 R

Opening height 2000 mm.

Door P 850 L

Opening height 2000 mm.

Ironmongery

Manufacturer's standard

Panels -
Type

Mesh

UR SP

Type P

Finish

Powder coated, Grey RAL 7037

As standard; not available for Type P.

Hot-dip galvanized

Not available for UR SP.

ProductInformation

www.troax.com/en/storage-and-property-protection/troax-safe

Product Options

Delete clause items/ sub-items that are not applicable.

Product reference:

– Cetus UR 350:

For properties with good perimeter protection or where burglary risk has been assessed as minimal.

  • Frame: 19 x 19 x 1.0 mm.
  • Wire: 2.5 x 2.5 mm.
  • Mesh size: 50 x 50 mm.

– Cetus UX 450:

For properties requiring a greater level of security.

  • Frame: 30 x 20 x 1.25 mm.
  • Wire: 3.0 x 3.75 mm.
  • Mesh size: 50 x 50 mm.

– Cetus UX 550:

High security system for properties frequently subject to attempted burglaries.

  • Frame: Vertical, 30 x 20 x 1.5 mm; horizontal, 30 x 20 x 1.25 mm
  • Wire: 5.0 x 5.0 mm.
  • Mesh size 50 x 50 mm.

Partition abutments, Cable management/ outlets:

Consult Troax for recommendations and details.

Panels:

– Mesh panels for UR 350, UX 450, UX 550:

  • Height: 2200 mm.
  • Width: 200, 300, 500, 700, 800, 1000, 1200, 1500 mm.

– UR SP sheet steel panels:

For additional security or privacy.

  • Frame: 19 x 19 x 1.00 mm.
  • Steel thickness: 0.7 mm.
  • Height: 2200 mm.
  • Width: 200, 300, 500, 700, 800, 1000, 1200 mm.
  • Finish: Powder coated, Grey RAL 7037.

– Type P sheet steel panels:

For additional security or privacy.

  • Frame: None.
  • Steel thickness: 0.6 mm.
  • Height: 2200 mm.
  • Width: 200, 300, 500, 700, 800, 1000 mm.
  • Finish: Pre-galvanized.

Ironmongery:

  • Code P doors: Padlock fittings.
  • Code EC doors: Euro cylinder lock.
  • Code AC doors: Assa cylinder lock.
