Light Duty Modular steel mesh padlockable doors for use with UR 350 mesh panels to build secure storage cages and enclosures, available in powder coated and hot-dip galvanised finishes.

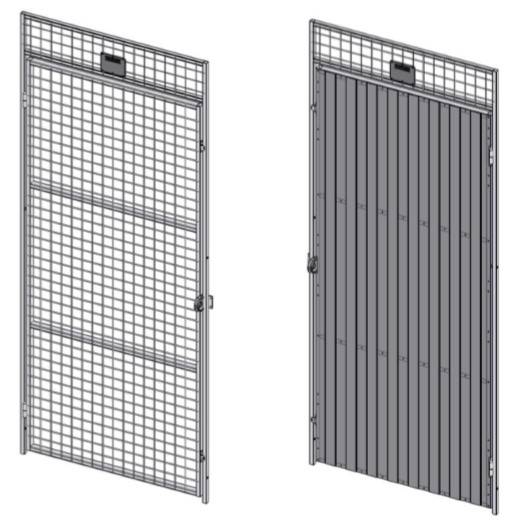

Padlockable UR 350 Door - primarily designed to be used together with Troax UR 350 mesh panels and is available in two widths - 750mm and 900mm with a 19x19mm outer frame. UR 350 doors and panels are ideal for creating storage cages and enclosures in secure environments where the risk of break-ins is low. The door leaf has a 30x20mm steel tube frame and two horizontal tubes to create strength and stability. The 50x50 mesh aperture also makes it virtually impossible for a hand to reach through the mesh, also available as UR SP - solid steel panel. Doors are supplied preassembled and are ready for installation.
Finish | Powder coated and Hot-Dip Galvanised |
Material | Carbon steel |
Shape | Rectangular |
WarrantyDescription | Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required |
Uniclass 2015 |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 2 | 1.3 |
![]() | Revit 2015 | 2 | 1.3 |
