Cellvent HX

Cellvent HX

Cordek Ltd

Collapsible void former with passive venting capabilities for use under reinforced concrete floor slabs. The product has a number of variables including depth and loading characteristics.

Jump to:
+44 (0)1403 799600 www.cordek.com
Application

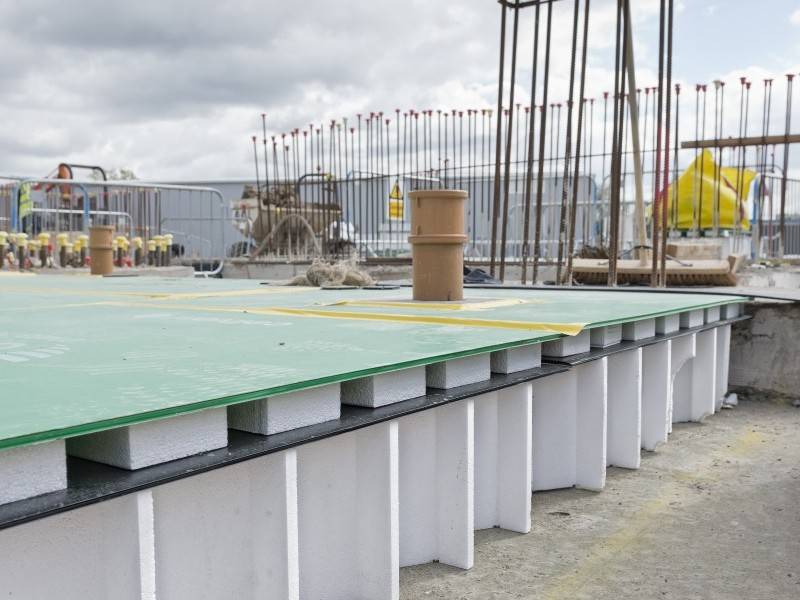

Designed for use beneath reinforced concrete floor slabs to protect against the potential effects of ground heave.

Description

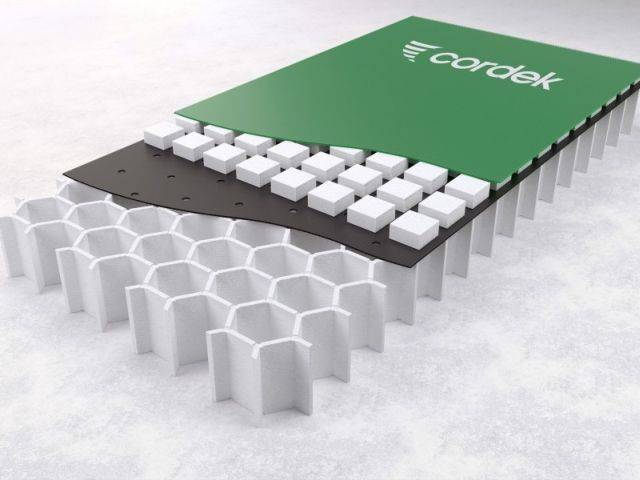

This product combines the benefits of Ventform with the Cellcore HX range. It alleviates the effects of ground heave and provides a gas venting medium. It is designed for use under suitably reinforced ground floor slabs. The depth is dependent upon the amount of ground heave that has been predicted.

Features and benefits:

  • Provides combined ground heave protection and gas venting capabilities in a single product.
  • Range of thickness and grades to suit most project requirements.
  • Light, robust and easy to install panels.
  • All variations include drainage slots to alleviate water pressure.
  • Unaffected by UV light and water.
  • Can be connected to the Cordek range of perimeter vents to vent hazardous ground gasses from beneath the building footprint to the atmosphere.

Application:

Designed for use beneath reinforced concrete floor slabs to protect against the potential effects of ground heave.

General information

Color

Expanded polystyrene: White

Features

Light, robust and easy to install panels, all variations include drainage slots to alleviate water pressure, unaffected by both UV light and water, can be connected to the Cordek range of perimeter vents

Material

Expanded polystyrene (EPS) and heavy-duty polypropylene

Shape

Rectangular

Size

2400 x 1200 x 135 mm

2400 x 1200 x 205 mm

2400 x 1200 x 270 mm

Uniclass 2015

Pr_25_71_29_37 High-density expanded polystyrene (HDPS) ventilated substructure formworkPrimary

CAWS

E20/195 Ventilated substructure formwork

E20/35 Ventilated substructure formwork

Specification data - High-density expanded polystyrene (HDPS) ventilated substructure formwork

Product Reference

Cellvent HX

Overall thickness

135 mm

205 mm

270 mm

Grade

Dependent on the total load that will be exerted onto the panels. Consult manufacturer for information.

Grade depth options

7 / 10

Safe load/ fail load (kN/m²), 220 mm maximum concrete depth.

9 / 13

Safe load/ fail load (kN/m²), 300 mm maximum concrete depth.

13 / 18

Safe load/ fail load (kN/m²), 460 mm maximum concrete depth.

18 / 24

Safe load/ fail load (kN/m²), 660 mm maximum concrete depth.

Standard product features

Colour:

White and green.

Features:

Provides combined ground heave protection and gas venting capabilities in a single product, has a range of thicknesses and grades to suit most project requirements. Light, robust and easy to install panels, all variations include drainage slots to alleviate water pressure and unaffected by UV light and water. Can also be connected to the Cordek range of perimeter vents to vent hazardous ground gasses from beneath the building footprint to the atmosphere.

Material:

Expanded polystyrene (EPS) / polypropylene.

Shape:

Rectangular panels.

Size:

2400 x 1200 mm.

Recyclability:

Both expanded polystyrene (EPS) and polypropylene can be recycled.

Country of origin:

United Kingdom.

Environmental information

Recyclability

Both expanded polystyrene (EPS) and polypropylene can be recycled

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 5 2.0
IFC
IFC2X3 2 1.3
Download now from NBS National BIM Library
