Caversham Mixture - Clay Facing Brick

Verified by manufacturer 4 months ago

DF

Vandersanden Brick Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

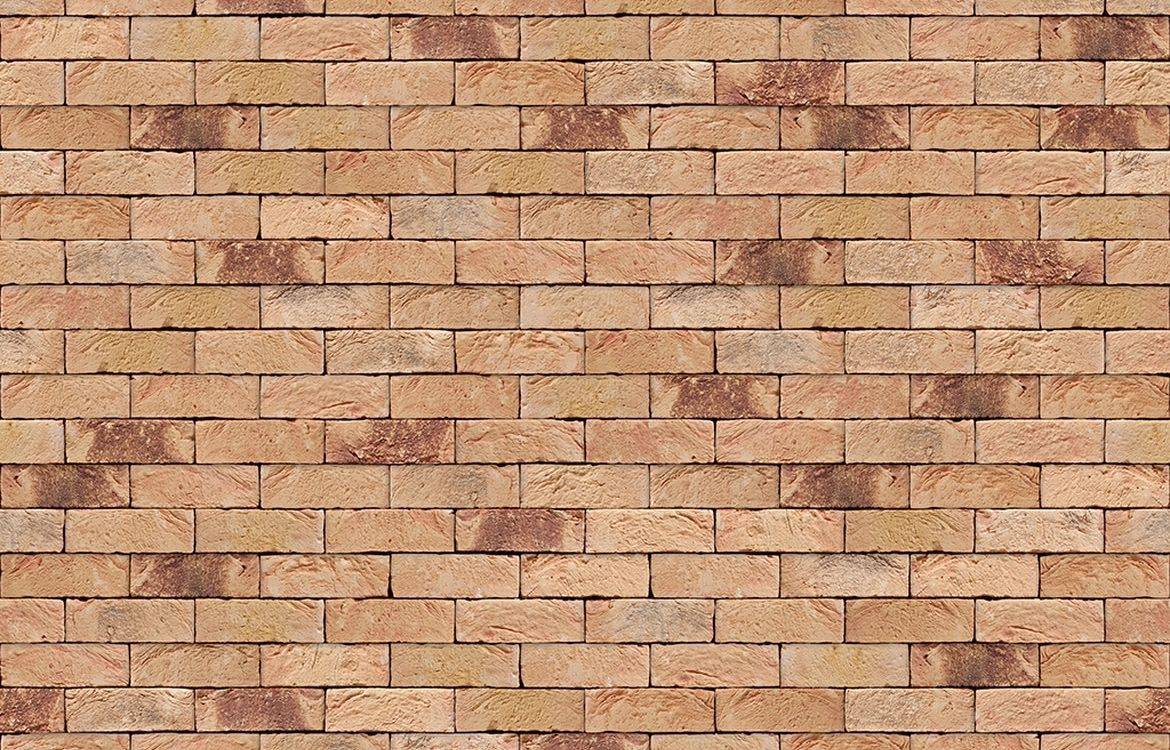

A facing brick in yellow, pink, white, grey and brown shades, and a sanded-coated and grained structure.

Jump to:
+44 (0) 1954 268075 Website

Application

Brickwork applications.

Description

The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand-formed stock brick.
  • Multi-shade.
  • Five joint styles available.


Also available as brick slips and eco-brick slips; consult manufacturer for details.


For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.


Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here


Over 1.1 million possibilities!

Create, download and visualise beautiful brick facades with our New Texture Generator here


Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here

General information

Color

Yellow

Finish

Sandfaced

Material

Clay

Shape

Rectangle

Length

212 mm

215 mm

Width

101 mm

102 mm

Height

51 mm

65 mm

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/5 Facing brickwork

F10/110 Clay facing brickwork

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Yellow, pink, white, grey and brown shades, with a sanded-coated and grained structure.

Work size (length x width x height)

215 x 102 x 65 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

≥20 N/mm².

Guidance for specification option:

Tested to the bed face.

Normalized compressive strength: ≥20 N/mm².

Durability designation

F2.

Density

-

Gross dry

1530 kg/m³.

Net dry

1640 kg/m³.

Tolerance

D1.

Water absorption

≤17% m/md.

Guidance for specification option:

Initial rate of water absorption, to EN 771-1:2011 - 5.3.8:

  • Non-coated bricks: 1.5–4.0 kg.m² minimum (IW3).
  • Coated bricks: 0.5–1.5 kg.m² minimum (IW2).

Configuration

Frogged.

Thermal conductivity

≤0.55 W/m·K.

Guidance for specification option:

Lambda 50/50.

  • Lambda 90/90: 0.65 W/m·K.
  • Lambda Ui: 0.697 W/m·K.
  • Lambda Ue: 1.376 W/m·K.

Water vapour permeability

5/10 µ.

Bond strength

0.15 N/mm² (general); 0.30 N/mm² (thin bed).

Reaction to fire

Class A1 to BS EN 13501-1.

Jointing

Beige.

Joint free.

White.

Light grey.

Dark grey.

Dangerous substances

NL-BSB.

Guidance for specification option:

According to Annex ZA 3.

Unit weight

2.14 kg.

Sustainability data

Country of material origin

-

Manufacturer guidance

Europe.

Country of product manufacture

Belgium

Material

Clay

Recyclability

Recyclable

Third party certifications

Third party certifications

QA Certificate

QA Certificate

Certificate of conformity of the factory production control 0620-CPR-97882/02

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 certificate
