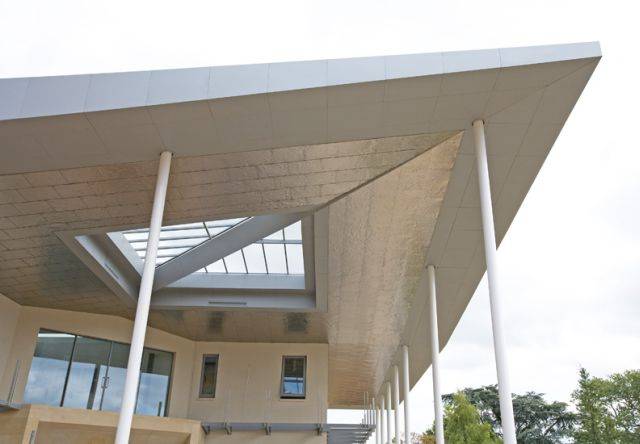

Aluminium soffit panels with interlocking joints and secret fixing.

  • Panel stiffness and flatness is ensured by interlocking joints on all edges, lateral stiffeners attached to back of panel and choice of metal gauge to suit panel width.
  • Complete system includes Bailey Support Carcassing for suspension from primary building structure, ensuring correct alignment and adjustability.
  • Panels typically span between Carcassing fixing points with long axis parallel to building elevation. Other support arrangements are feasible.
  • Supplied in 3 m lengths as standard. Optimum widths are: 0.6 m, 0.83 m and 1 m (maximum). Choice of special sizes, shapes, flat or curved section.
  • Powder coated finish with choice of colour. Applied in-house with thirty year guarantee available on application, subject to location.
  • Interlocking joints compatible with Bailey Fascia System.
  • Suitable for use with Bailey Carcassing or Laser-Line Carcassing Systems.
  • Detail design service available from supplier. Installation by recommended subcontractors.

Fixings:

  • Aluminium rivets and stainless steel self-drill and tap screws.
  • Typically at 0.6 m centres, but consult supplier for individual project specification.

General information
Finish

Interpon D, colour ___, gloss level ___

Polyester powder coating - standard option.

Syntha Pulvin, colour ___, gloss level ___

Non standard option.

Anodized, colour ___

Non standard option.

PVDF , colour ___

Non standard option.

Specification data
Product Reference

Cassette Soffit System

Layout

As drawing ___

Panel -
Panel Type

Concave, radius ___ mm

Curved in section on short axis. Radius: 0.4–20 m.

Convex, radius ___ mm

Curved in section on short axis. Radius: 0.4–20 m.

Hinged panel for access

Rear edge

Rear edge with ventilation

Needle punching to upstand edge provides concealed ventilation equivalent to continuous 10/ 25 mm gap.

Standard

Tapered, segmental ends

Tapered, curved ends

Curved on plan.

Panel size -
Modular length

1000 mm

1500 mm

2000 mm

2500 mm

3000 mm

As standard.

___ mm

Length (maximum): 3000 mm.

Modular width

600

830

1000

___ mm

Width: 150–1000 mm (maximum).

Overall depth

35 mm

Standard for panel widths <600 mm.

40 mm

Standard for panel widths >600 mm.

Rear edge trim

Angle, ___ x ___ mm, ___ º

Curved on plan, radius ___ º

Glaze-in profile, ___ º

To suit glazed screen or curtain walling.

As drawing ___

Finish

Interpon D, colour ___, gloss level ___

Polyester powder coating - standard option.

Syntha Pulvin, colour ___, gloss level ___

Non standard option.

Anodized, colour ___

Non standard option.

PVDF , colour ___

Non standard option.

Accessories

None

Barge boxes

Panels with upstand, where end of run is exposed.

Access hatch

300 x 300 mm, 450 x 450 mm.

Access panel

Entire panel made accessible, hinged longitudinally with stays and quick-release opening.

Standard product features

Layout:

Building tolerance is accommodated within the system of up to +100 mm longitudinally and + / - 20 mm in section.

Supports:

Fixed to Bailey Carcassing System, off primary building structure. Consult supplier for project specific configuration.

Finish:

Consult supplier for colour choice.

– Standard polyester powder coating: Interpon D1036, standard colour range.

  • Electrostatically applied to BS EN 12206 and Qualicoat Class 1 standards.
  • Compliant to ECHA standards which includes Chrome Free solution.
  • Film thickness: 60µ (minimum 50µ).

Product Options

Panel size:

  • Length: 3 m as standard. (Most economic option). Other lengths to order.
  • Width: 150–1000 mm.

Rear edge trim:

- Glaze-in profile:

Edge of panel is sized to match glazing units and sealed to curtain wall or screen profile using glazing beads.

Similar products from Bailey - Total Building Envelope
