Caspian Auditorium Seat

Caspian - Pitch 14"

Ferco Seating Systems Ltd Variant:
Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • EMS ISO 14001

    EMS ISO 14001

    Certificate type

  • QMS ISO 9001

    QMS ISO 9001

    Certificate type

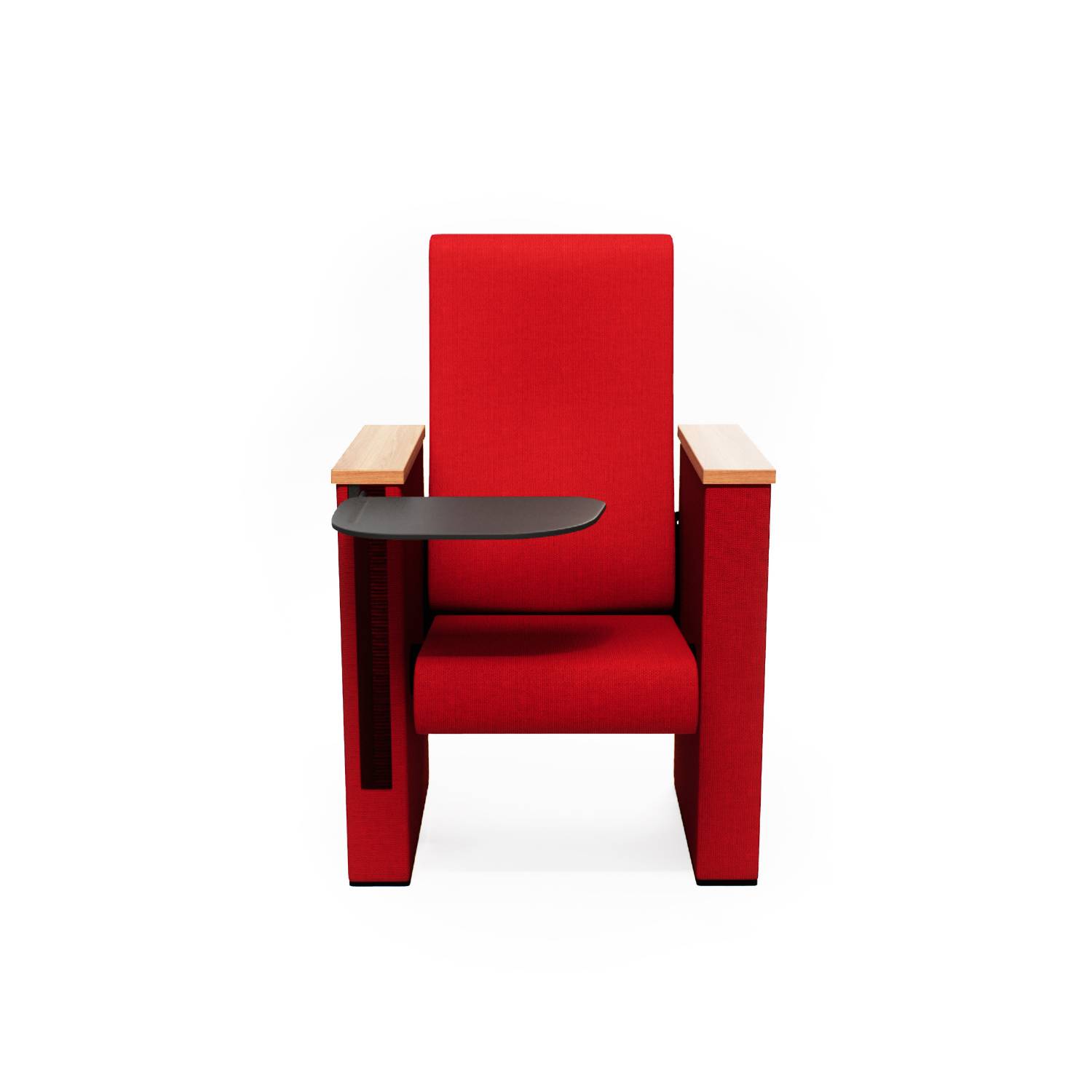

The Caspian is a classically-designed conference room & auditorium seat allowing audience members the best possible view of the whole room, & is available for either straight or radial seating layouts

Jump to:
+44 (0)1743 761244 www.fercoseating.com

Application

Auditoriums, theatres, conference rooms or any audience space. Available for straight or radial layouts.

Description

The Caspian is a contemporary, sophisticated auditorium seat.

It has an option to incorporate a microphone/translation system for each seating space. Finished in wood with sumptuous padding and a high back, it is customisable with a concealed tablet which stows neatly into the armrest.


Features and benefits:


  • Contemporary design
  • Insert panel for microphone
  • Floor mounted
  • High backed
  • Flammability BS 5852 2008
  • Can be adapted for straight and radial layouts


Options:


• Oval row letter

• Aisle light – Type E

• Round row letter

• PVC Seat numbering

• Embroidered numbering

• Tandem removable leg

• Castor wheel

• A3 / A4 Size Wrimatic tablet

• Wooden back / seat outer

• Wooden / upholstered armrest

• Wooden panel

• Probax

General information

Color

Consult manufacturer for further details

-

Material

Fabric

Height

1000 mm

1010 mm

1015 mm

Uniclass

Pr_40_30_29_72 Retractable seatsPrimary

CAWS

N10/172 Retractable/ demountable seating system

N10/25 Chairs

Specification data - Retractable seats Enhanced data

Fire performance

Flammability compliance with BS 5852 section 3 ignition source 5. Californian Bulletin117.

Form

Floor-fixed.

Seats and backs

-

Material

  • Fixed rectangular shape with curvature design for the back.
  • Fully upholstered to cover of choice.
  • Inner panel shall be made of 13 mm. plywood upholstered with CMHR foam, density 45 kg/m³.
  • Rectangular shape with 'concave' design for better sitting comfort.
  • Inner seat structure made of 21 mm diameter tabular steel frame with metal strap attachment, integrated in CMHR foams, density 60 kg/m³.
  • Fully upholstered with zipped removable cover.

Fabric.

Frames

-

Material

All metal parts exposed shall be stripped and cleaned with iron phosphate, hot water rinsed and then chromic acid rinsed. Conformity with BS-6496 hardness test.

Finish

All metal parts are coated with an epoxy finish of at least 60 microns for indoor use and hot dipped galvanized to BS 729 for outdoor use.

Integral accessories

Embroidered seat number.

Logo embroidery.

Metal framed cup holder to arm rest.

Oval row letter plate.

PVC seat numbering.

Seat number.

Tandem freestanding.

Tandem removable leg.

Wooden back outer.

Wooden end panel.

Depth

525 mm.

Structure

Centre and end standards are of lateral pedestal design made of 38 x 2.3 mm square hollow section continuous welded to a 6 mm steel plate.

Backrest height

1015 mm.

Armrest

Armrest top constructed with 30 mm thick wood. Decorative aisle panel made of MDF board upholstered with padded cover.

Environmental information

Contains Red List materials

No

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Recyclability

Components parts fully recyclable
