Cantabria

Description

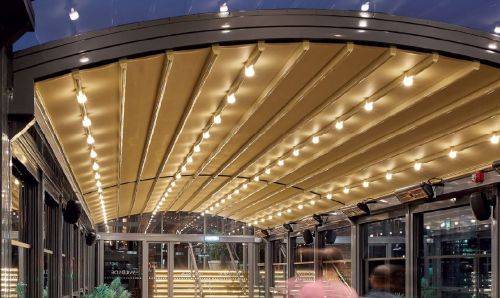

Aluminium framed canopy system which can be fitted to the building or free-standing (with a retractable roof). A range of extras, such as lighting, heating and sides can be added.

Features and benefits:

  • Roof is retractable at the touch of a button.
  • The roofing system blocks 100% of ultraviolet (UV) rays.
  • Includes integrated guttering, wiring and fixings.
  • Remote control operated.
  • Available in a wide range of colours.

The fabrics, motor components and painted aluminium standard components come with a five-year warranty. Electronic remotes, cards, circuits, LEDs, plastic components come with a two-year warranty. Painted steel special components come with a one-year warranty.

General information

Size

Consult literature and insert requirements.

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

Specification data - Open sided shelters

Product Reference

Cantabria 1200 Series

Cantabria 1600 Series

Type

See 'Options' and insert requirements.

Size

Consult literature and insert requirements.

Colours

-

Fabric

See 'Options' and insert requirements.

Frame

See 'Options' and insert requirements.

Infill/ Side panels

Adjustable parapet

Fixed glass

Folding glass

Glass balustrade

Sliding glass

Windstore retractable fabric

Accessories

None

Lighting

Consult manufacturer and insert requirements.

Heating

Consult manufacturer and insert requirements.

Standard product features

Technical characteristics:

  • Projection and width: Varies depending on the model, consult technical literature for details.
  • Wind resistance: Consult technical literature for details.
  • Snow load capacity: 1200 Series: 15 kg/m². 1600 Series: 20 kg/m².

- Cantabria Eclipse fabric:

  • Weight: 620 g/m².
  • Thickness: 0.56 mm (560 microns).
  • Width: 2670 mm.
  • Length: 35 lm.
  • Tensile strength (warp/ weft): 220/220 daN5 cm.
  • Tear strength (warp/ weft): 25/20 daN.
  • Flame retardancy rating (NFP 92-507): M2.

- Cantabria Translucent fabric:

  • Yarn: 550 dtex PES HT.
  • Weight: Varies.
  • Width: 2600 mm.
  • Finish: Matt polyvinylidene fluoride (PVDF) varnish.
  • Tensile strength (warp/ weft): 250/250 daN5 cm.
  • Tear strength (warp/ weft): 20/20 daN.
  • Adhesion: 8/8 daN/5cm.
  • Flame retardancy rating (NFP 92-507): M2. B1 to DIN 4102-1. Class A to ASTM E 84.
  • Fire rating to Euroclass (EN 13501-1): B-s2,d0.

Product Options

Type:

A variety of system designs are available, including:

  • Inclined bracket.
  • Inclined hanging.
  • Inclined standing.
  • Inclined twin bracket.
  • Inclined twin hanging.
  • Inclined twin standing.
  • Rounded bracket.
  • Rounded hanging.
  • Rounded standing system.
  • Rounded twin bracket.
  • Rounded twin hanging.
  • Rounded twin system.

Size:

  • Minimum rail width is 2500 mm, and increases in increments of 500 mm to a maximum of 4500 mm.
  • Minimum projection for single systems is 2000 mm, and increases in increments of 500 mm.
  • Minimum projection for twin systems is 4000 mm, and increases in increments of 500 mm.

Colours:

- Fabric:

  • Cantabria Eclipse 1210 White.
  • Cantabria Eclipse 1230 Cream.
  • Cantabria Eclipse 1260 Grey.
  • Cantabria Eclipse 1480 Green.
  • Cantabria Eclipse 3D 1213 White.
  • Cantabria Eclipse 3D 1233 Cream.
  • Cantabria Eclipse 3D 1263 Grey.
  • Cantabria Eclipse 3D 1483 Green.
  • Cantabria Translucent + 1103 Sandy.
  • Cantabria Translucent + 2047 Black.
  • Cantabria Translucent + 2171 Grey.
  • Cantabria Translucent + 8102 White.
  • Cantabria Translucent 10387 Vanilla.
  • Cantabria Translucent 20183 White.
  • Cantabria Translucent 20186 Rouge.
  • Cantabria Translucent 20189 Navy.

- Frame:

  • RAL 1013.
  • RAL 7024.
  • RAL 7039.
  • RAL 7040.
  • RAL 8017
  • RAL 9005.
  • RAL 9010.
  • MGT 92 – Metallic.
  • PP MAT 611 – Metallic.
  • PP MAT 613 – Metallic.
  • PP MAT 617 – Metallic.
  • SW 3004 – Metallic.
  • 99061/868 – Wood.
  • 99297/066 – Wood.

Infill:

- Adjustable Parapet:

Operating vertically, this parapet system allows users to decide which area you want to open and which to have closed, hence dictating where the fresh air enters, in effect working like a windbreak.

- Fixed glass:

Creating an area that is totally waterproof allowing customers to enjoy the outdoor and indoor environment. There is also an internal option for creating internal dining spaces.

- Folding glass:

This glass option integrates indoor and outdoor dining perfectly. Each panel is enclosed with an aluminium frame which connects the system together and via small wheels along the top and bottom of the frame, it allows the glass to be opened up to provide a feel of ‘Al-fresco’ dining or closed to provide an insulated and water tight barrier from the external elements in poorer weather.

- Sliding glass:

Its adjustable wheels ensure smooth manoeuvring of each panel to both left and right. Each panel is connected to the other enabling easy opening and closing. The tiny brushes between the glass prevent dust entering.

- Windstorm retractable fabric:

Clear glass fabric option to facilitate light and add to the customer dining experience. These are an alternative to glass and operate on an automated roller system.

Glass balustrade:

With its strong frameless panels, the balustrade system provides uninterrupted views, a welcome wind shield and safety barrier too. Used for the external area around the outskirts of the Canopy, it’s fixed at the base using a metal rail which is then fixed to the ground. Also available with a finishing rail on top of the glass.

Consult manufacturer for further details and insert project requirements in the 'Infill' property.
