Caltech
Insulated soffit liner board.

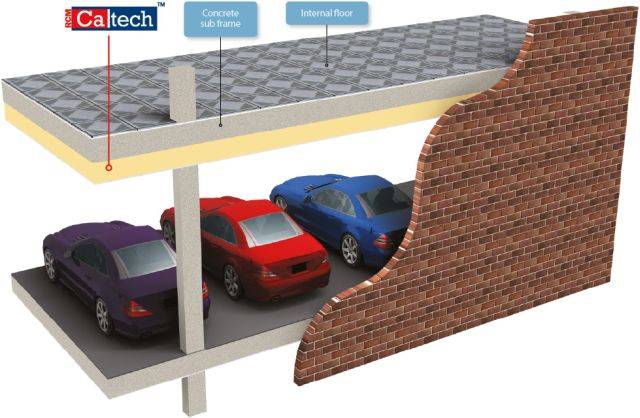

An adhesively bonded soffit liner combining a non-combustible calcium silicate board with an insulating medium of either mineral wool, polystyrene or phenolic insulation. Can be fixed to the underside of concrete and metal deck floors, concrete soffits to thermally upgrade these areas. Primarily used as a means of providing insulation to car park ceilings. CE marked.
Features:
- Extensive range of insulation combinations available.
- Impact resistant board from 6–12 mm.
- Insulation thickness to meet required U-value.
- Good weather resistance and long term durability.
| Size | 600 x 1200 mm 1200 x 1200 mm 1200 x 2400 mm |
| Features | Extensive range of insulation combinations available Impact resistant board from 6–12 mm Insulation thickness to meet required U-value Good weather resistance and long term durability |
| Uniclass 2015 | |
| CAWS | P10/185 Soffit insulation |
| Product Reference | Caltech |
| Size | 600 x 1200 mm1200 x 1200 mm1200 x 2400 mm |
| Board thickness | Insert requirement, available 6–12 mm. |
| Insulation | - |
| Type | Mineral woolPhenolicPolystyrene |
| Thickness | 50 mm60 mm70 mm80 mm90 mm100 mm |
| Accessories | NoneRCM Foil TapeWaterproofing seal. RCM IntusilNeutral cure sealant for use in gaps and joints. RCM Joint SealAir tightness seal. |
| Standard product features | Size: 1220 x 2400 mm. Thickness: 6–12 mm board with 50, 60, 70, 80, 90 or 100 mm insulation. General:
|
| Product Options | Insulation: - Thermal conductivity:
- Compressive strength at 10% compression:
|
