Cairngorm® Anti-Vandal Cubicle System
Verified by manufacturer 21 days ago
Constructionline
Certificate type
Compact grade laminate (CGL) made-to-measure toilet or shower cubicle.
Application
Anti-Vandal cubicle system suitable for dry and wet bathroom environments in areas such as:
- Hospitals.
- Sports and leisure centres.
- Schools.
- Camping sites.
- Railway stations.
- Motorway services.
Description

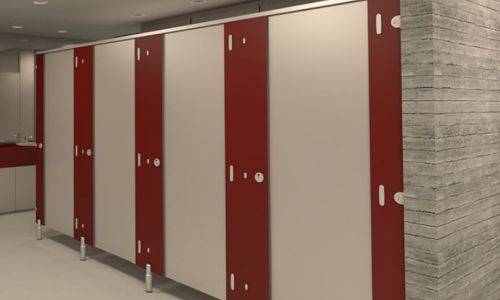

Compact grade laminate (CGL) made-to-measure toilet or shower cubicle, manufactured to suit project requirements.
Features and benefits:
- Dual purpose - can be installed as either a shower or toilet cubicle.
- All edges have a smooth, round profile.
- Includes anti-vandal fittings and kick-proof panels which can withstand heavy use for over 10 years.
- Resistant to most detergents for cleaning e.g. for the removal of graffiti.
- Available with an increased height configuration.
- Durable and strong.
- Panels are waterproof and hygienic, fitted with rust resistant fittings to prevent the growth of mildew and bacteria.
- Available in a wide range of colours.
Door width:
600 mm.
Fascias:
- Start/ end fascia: 150 mm.
- Middle fascia: 300 mm.
General information
Color | Black Blue Grey Pink Red Manufacturer guidanceVarious options available, consult manufacturer's literature and insert requirements. |
Finish | Anti-graffiti |
Material | Aluminium Guidance for specification option: Heavy duty satin anodized aluminium (SAA). Fittings (including head-rail, brackets, wide-base cubicle legs, heavy-duty hinges and cubicle latches). Laminate |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | Compact grade laminate (CGL).Guidance for specification option: 13 mm. |
Doors | Compact grade laminate (CGL).Guidance for specification option: 13 mm. Door width: 600 mm. |
Hardware | Head-rail, brackets, wide-base cubicle legs, heavy-duty hinges and cubicle latches.Guidance for specification option: Heavy duty satin anodized aluminium (SAA). Manufacturer guidanceFittings |
Wall panel | Not required. Full-height. Guidance for specification option: Consult manufacturer and insert requirements. Half-height. Guidance for specification option: Consult manufacturer and insert requirements. |
Edging | Rounded CGL (black). |
Partition height | 1800 mm. Guidance for specification option: Standard. 2000 mm. Guidance for specification option: On request. |
Partition depth | 1500 mm. Guidance for specification option: Standard. Bespoke. Guidance for specification option: Insert requirement, available up to 1800 mm. |
Overall cubicle height | 1955 mm. Guidance for specification option: Standard. Includes 155 mm floor clearance. 2100 mm. Guidance for specification option: On request. Includes 100 mm floor clearance. Bespoke. Guidance for specification option: Insert requirement. |
Partitions | Guidance for specification option: Various options available, consult manufacturer's literature and insert requirements. |
Doors | Guidance for specification option: Various options available, consult manufacturer's literature and insert requirements. |
Door width | 600 mm. |
Fascia | 150 mm; 300 mm. Guidance for specification option: Start / end fascia; middle fascia. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Heavy duty satin anodized aluminium (SAA). Fittings (including head-rail, brackets, wide-base cubicle legs, heavy-duty hinges and cubicle latches). Laminate |
Manufacturing plant location | |
Expected Life | 15 year |
Third party certifications
Constructionline
Constructionline Silver
Literature
Cairngorm Specification Guide
Case studies
Life Church Bradford
