This product is no longer available —
A mesh panel partitioning system for sub-dividing storage areas and segregating electrical controls.

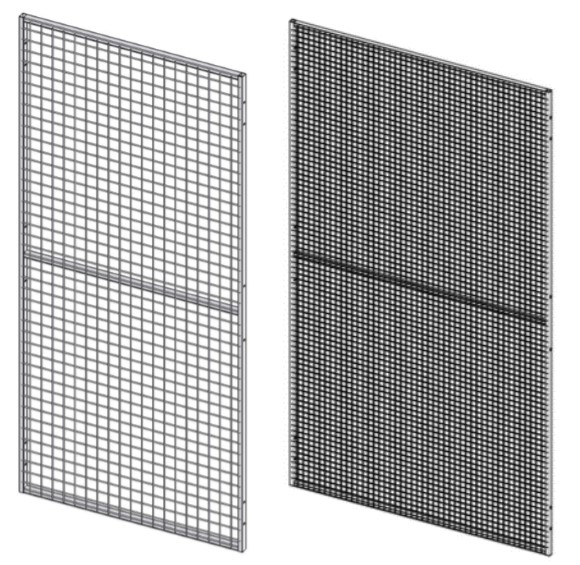

A mesh or panel partitioning system designed for sub-dividing storage areas and segregating electrical controls. The modular system is available in a wide variety of heights and widths, with hinged or sliding door options. Panels can be multi-tiered, with high door openings for forklift access.
Panels are floor bolted and can be simply connected to a ceiling or roof structure if required. Panels can be mounted both vertically and horizontally. The system is fully demountable.
A versatile modular mesh panel system that meets the demands for partitioning in a wide range of applications and environments
Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required
|Uniclass 2015||Partition panels (Pr_25_71_57_60)|
Caelum mesh industrial partition system
UR 350 and UX 450.
UR 350 and UX 450.
Steel tubular framing with steel mullion post for free standing or fixing to structure as required
Formed with corner brackets
Hinged full mesh doorset
Sliding full mesh doorset
Roof/ ceiling fixings fixed to structure
Floor fixing bolted to floor
|Wall/ Vertical structure|
Mullions/ panels bolted to walls using corner brackets
20 x 30 mm hollow steel sections
40 x 30 mm hollow steel sections
50 x 30 mm hollow steel sections
1000 x 2200 mm
1200 x 2200 mm
2000 x 2200 mm
2400 x 2200 mm
800 x 2210 mm
1800 x 2210 mm
2800 x 2210 mm
|Standard product features|
Standard door ironmongery includes: 3 lever mortise lock with lever handles, pull handle, padlock hasp, mortise lock with EuroProfile cylinder, claw lock with EuroProfile cylinder.
Delete clause items/ sub-items that are not applicable.
Partition abutments, Cable management/ outlets:
Consult Troax for recommendations and details.
– UX 450:
– UR 350:
Doors available in UX 450 only. Consult Troax for details and recommendations.
